Product Category
DABUND PIPE is a professional manufacturer and supplier of mini split line sets for air conditioning, refrigeration, and HVAC applications. Since 2008, we have supplied insulated copper line sets to HVAC distributors, wholesalers, importers, contractors, and air conditioning equipment manufacturers worldwide.
Our mini split line sets combine two refrigeration-grade copper pipes with protective thermal insulation. They are designed to connect indoor and outdoor units in ductless mini split air conditioners, heat pumps, and compatible HVAC systems.
Available configurations include 1/4" x 3/8", 1/4" x 1/2", 1/4" x 5/8", 3/8" x 5/8", 3/8" x 7/8", and other combinations depending on the selected model. Different coil lengths, insulation materials, and connection options are available for residential and commercial installations.
DABUND supports OEM manufacturing, custom insulation printing, private-label packaging, and bulk orders for international HVAC buyers.
Request a Mini Split Line Set Quote

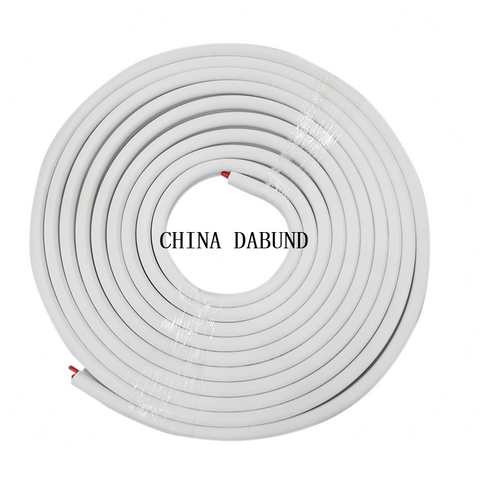

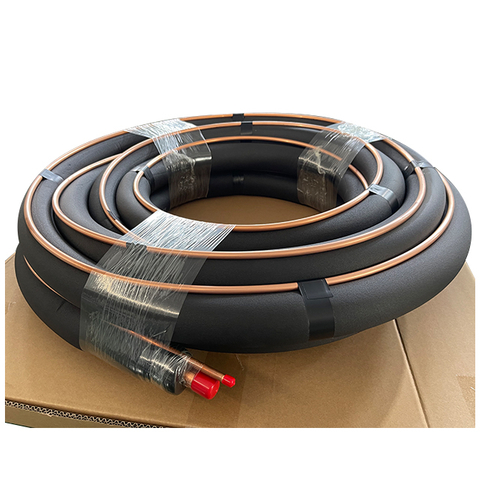

A mini split line set is a pair of insulated copper pipes used to connect the indoor and outdoor units of a ductless mini split air conditioning system. The two pipes serve different functions in the refrigeration cycle: the liquid line and the suction line.
The liquid line generally carries high-pressure liquid refrigerant toward the indoor expansion device, while the suction line returns low-pressure refrigerant vapor toward the compressor during cooling operation.
Each copper pipe is covered with thermal insulation to help reduce heat transfer and control condensation. Factory-insulated line sets simplify installation because contractors do not need to insulate each copper tube separately.
DABUND supplies mini split copper line sets in different diameters, lengths, and insulation configurations to meet the requirements of residential, commercial, and HVAC installation projects.
Our mini split line sets use 99.9% pure copper tubing. C12200 DHP copper is available for applicable refrigeration tubing specifications. Selected copper tubes are designed to meet ASTM B280 requirements for air conditioning and refrigeration applications.
Copper provides excellent thermal conductivity, good corrosion resistance, and workability, making it suitable for refrigerant transportation in mini split and HVAC systems.
A mini split line set combines two copper pipes into one coordinated refrigerant piping assembly. One pipe serves as the liquid line, while the other serves as the suction line.
The paired configuration helps simplify installation, handling, and routing between indoor and outdoor air conditioning units.
DABUND mini split line sets feature factory-applied insulation to help reduce heat transfer and condensation along refrigerant pipes.
Different insulation materials and thicknesses are available depending on the selected model, including white polyethylene foam, polypropylene-based insulation, and black rubber insulation.
Selected insulation configurations offer UV-resistant properties for outdoor air conditioning installations. This helps protect exposed refrigerant piping from sunlight and environmental exposure.
Insulation temperature resistance, UV performance, and flame characteristics depend on the material and product specification. Technical documents can be provided for applicable models.
We offer different copper pipe combinations and coil lengths to accommodate various mini split installation layouts. Selected products are available in 25 ft, 35 ft, 50 ft, 75 ft, 100 ft, and other configurations.
Custom metric lengths from 1 m to 50 m can also be discussed according to product construction and production requirements.
Plastic protective caps can be fitted to copper tube ends to help prevent dust, dirt, and foreign materials from entering the tubing during storage and transportation. Customized cap colors can be discussed for OEM orders.
DABUND supplies mini split copper line sets in different copper tube dimensions, insulation configurations, and lengths. The following table summarizes commonly available product specifications.
| Specification | Available Options |
| Product Type | Mini Split Copper Line Set |
| Copper Material | 99.9% Pure Copper |
| Copper Grade | C12200 DHP Copper, according to ordered specification |
| Applicable Standard | ASTM B280 for applicable refrigeration tubing |
| Copper Tube Diameters | 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1 1/8" |
| Insulation Materials | White PE, Polypropylene-Based Insulation, Black Rubber |
| Insulation Thickness | 8 mm, 9 mm, 10 mm, 13 mm, 19 mm, 25.4 mm, depending on model |
| Common Product Lengths | 25 ft, 35 ft, 50 ft, 75 ft, 100 ft |
| Custom Lengths | 1 m to 50 m, subject to product configuration |
| Tube End Configurations | Plain Ends and Pre-Flared Ends for Applicable Models |
| End Protection | Plastic Protective Caps |
| Customization | Pipe Sizes, Lengths, Insulation, Printing, Colors, Packaging |
| Applications | Mini Split AC, Ductless AC, Heat Pumps, HVAC |
Actual specifications depend on the selected product model. Contact our sales team for exact copper tube dimensions, wall thicknesses, insulation materials, and available technical documentation.
Different mini split air conditioning systems require different liquid and suction line diameters. DABUND offers several commonly used copper tube combinations for residential and commercial HVAC applications.
| Copper Tube Combination | Typical Applications |
| 1/4" + 3/8" | Selected Residential Mini Split Systems |
| 1/4" + 1/2" | Selected Residential Split AC Systems |
| 1/4" + 5/8" | Selected Medium-Capacity Air Conditioning Systems |
| 3/8" + 5/8" | Selected Larger Mini Split Systems |
| 3/8" + 3/4" | Selected Commercial HVAC Systems |
| 3/8" + 7/8" | Selected Larger HVAC Applications |
| 1/2" + 3/4" | Selected High-Capacity HVAC Systems |
These combinations are common product configurations rather than universal equipment specifications. Always check the air conditioner manufacturer's installation manual to confirm the required liquid and suction line diameters.
A mini split line set normally consists of two insulated copper pipes. Each pipe performs a different function in the refrigeration cycle.
The liquid line generally carries high-pressure liquid refrigerant from the condenser side toward the expansion device or indoor evaporator assembly, depending on the system design.
It typically uses a smaller copper tube diameter than the suction line. The required diameter depends on the equipment design, refrigerant, and piping length.
The suction line carries low-pressure refrigerant vapor back toward the compressor during cooling operation. It generally requires a larger copper tube diameter to accommodate refrigerant flow.
Proper insulation is particularly important for suction lines because it helps control unwanted heat gain and surface condensation. The insulation thickness should comply with the equipment manufacturer's requirements.
DABUND offers different mini split line set lengths for residential and commercial installation projects. The selected length should accommodate the distance between indoor and outdoor units and the actual piping route.
Selected shorter products, typically from 1 m to 10 m, can be supplied with pre-flared copper ends and connection accessories according to the model.
Pre-flared connections can simplify installation preparation when the supplied flare dimensions and connection nuts match the air conditioning equipment requirements.

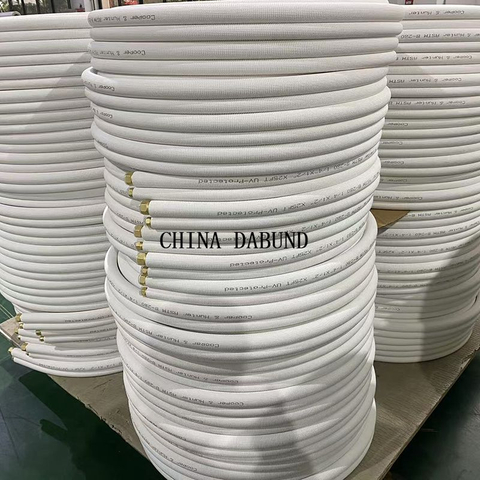

Longer line sets can be supplied in configurations such as 50 ft, 75 ft, 100 ft, and other available lengths. Selected products exceeding 10 m are supplied with plain ends, allowing installers to cut the pipes and prepare connections according to the installation method.
Longer coils are useful for installations where indoor and outdoor units are separated by greater distances. Always confirm the maximum permitted piping length and elevation difference in the air conditioner manufacturer's installation manual.
Plastic protective caps help keep copper tube ends clean during storage and transportation. Selected models can also include pre-flared ends and matching nuts.
Connection accessories and other installation components should be confirmed according to the selected product configuration rather than assumed to be included in every line set.
Mini split line sets connect indoor and outdoor units in residential ductless air conditioning systems. Different copper tube combinations and lengths are available for compatible wall-mounted, floor-standing, and other split AC configurations.
Commercial air conditioning installations often require different refrigerant pipe diameters and longer piping routes. DABUND provides various copper tube combinations and coil lengths for suitable commercial HVAC projects.
Heat pumps use refrigerant piping to connect indoor and outdoor equipment. Insulated copper line sets provide thermal protection for compatible heating and cooling applications.
Selected insulated copper tubing configurations can be used in compatible VRF and VRV installations. Pipe diameters, insulation requirements, and connection methods must follow the equipment manufacturer's engineering specifications.
Selecting the correct mini split line set is important for refrigerant flow, installation quality, and long-term air conditioning performance. HVAC contractors, distributors, and purchasing managers should consider the following factors before ordering.
Check the air conditioner manufacturer's installation manual to identify the required liquid line and suction line diameters. Common combinations include 1/4" x 3/8", 1/4" x 1/2", and 3/8" x 5/8".
Do not select line set sizes based only on nominal BTU capacity or air conditioner tonnage. The exact equipment model and manufacturer specifications should determine the correct dimensions.
Choose white PE, polypropylene-based insulation, or black rubber according to the selected product model and installation environment. Consider thermal insulation, moisture resistance, UV exposure, and applicable flame performance requirements.
Measure the actual piping route between indoor and outdoor units, including bends and installation allowances. Choose a suitable coil length to avoid unnecessary joints and excessive unused tubing.
Also confirm the maximum piping length and elevation difference allowed by the air conditioning manufacturer.
Verify the copper grade, tube outside diameter, wall thickness, and applicable standards. These specifications should meet the equipment manufacturer's requirements and the intended refrigerant operating conditions.
Determine whether your installation requires plain ends or pre-flared ends with matching connection nuts. Check the connection dimensions and thread specifications to ensure compatibility with the indoor and outdoor units.
DABUND supports OEM and private-label requirements for HVAC distributors, wholesalers, importers, and air conditioning brands. Our manufacturing capabilities allow us to coordinate selected copper tube configurations, insulation specifications, and customized product presentation.
Your company name, brand logo, copper tube dimensions, and length markings can be printed on insulation for selected models. Customized printing helps distributors establish consistent branding across their product ranges.
Different liquid and suction line combinations can be discussed according to the selected equipment specifications and production requirements. Buyers can provide their required copper tube diameters and lengths when requesting a quotation.
Different insulation materials, thicknesses, and colors are available depending on the product model. Buyers can discuss PE, polypropylene-based insulation, and black rubber options for their intended applications.
DABUND supports customized labels, carton markings, protective end caps, and packaging configurations for qualified wholesale and OEM orders.
For customers who need more than a copper line set, DABUND also supplies mini split installation kits with selected accessories such as communication cables, drain hoses, wall sleeves, decorative covers, and connection components.
The contents of each installation kit depend on the selected model. Buyers can specify the required accessories when requesting a quotation.
DABUND has been manufacturing HVAC components since 2008. Our product range includes mini split line sets, insulated copper pipes, pre-insulated copper tubes, installation kits, aluminum pipes, and air conditioning accessories.
We manufacture insulation materials in-house for selected products. This supports coordination of insulation specifications, customized printing, and product packaging for wholesale and OEM customers.
We offer different copper tube combinations and coil lengths for compatible mini split and HVAC installations, helping distributors and contractors source suitable products for different markets.
We support customized insulation printing, product labels, protective caps, and packaging for distributors and air conditioning brands developing their own product ranges.
Buyers can contact our team to discuss sample availability, copper specifications, insulation test reports, product drawings, and customized production requirements before placing bulk orders.
We work with overseas HVAC distributors, importers, wholesalers, and contractors. Our team can assist with product specifications, export packaging, shipping arrangements, and order coordination.
A standard mini split line set typically includes two insulated copper pipes: a smaller liquid line and a larger suction line. Depending on the product model, pre-flared ends, connection nuts, and protective caps may also be included. Communication cables and drain hoses are generally separate unless supplied as part of a complete installation kit.
Common combinations include 1/4" x 3/8", 1/4" x 1/2", 1/4" x 5/8", 3/8" x 5/8", and 3/8" x 7/8". The actual available combinations depend on the product model and manufacturing requirements.
Available lengths include 25 ft, 35 ft, 50 ft, 75 ft, 100 ft, and other selected configurations. Custom metric lengths from 1 m to 50 m can also be discussed according to the product model and order requirements.
DABUND uses 99.9% pure copper for its copper tubing products. C12200 DHP copper is available for applicable refrigeration tubing specifications. Material grades and supporting documentation can be confirmed for each ordered model.
Selected refrigeration-grade copper tubing is designed to meet ASTM B280 requirements. Buyers should confirm the applicable copper grade, dimensions, and compliance documentation for the specific product configuration before ordering.
Available insulation options include white PE, polypropylene-based insulation, and black rubber insulation, depending on the selected product. Buyers can confirm the insulation material, thickness, color, and technical performance before ordering.
Yes. Pre-flared copper tube ends and matching connection nuts are available for selected models. Buyers should specify the required copper tube diameters, length, and connection type when requesting a quotation.
Check the air conditioner manufacturer's installation manual for the required liquid and suction line diameters. The correct combination depends on the equipment model, refrigerant, piping length, and system design. Do not select line set dimensions based only on BTU capacity.
Copper line sets can be used in compatible R410A and R32 systems when the copper tube dimensions, wall thickness, pressure rating, and insulation meet the equipment manufacturer's requirements. Confirm the exact product specification before installation.
Yes. DABUND supports customized insulation printing for selected products. Your company name, brand logo, pipe dimensions, and length markings can be printed according to production requirements.
Yes. In addition to copper line sets, DABUND supplies complete installation kits for selected configurations. Depending on the model, these kits can include communication cables, drain hoses, wall sleeves, decorative covers, and other accessories.
Yes. Buyers can contact DABUND to discuss sample availability, sample specifications, and shipping arrangements. Sample quantities and shipping costs depend on the selected products and destination.
Minimum order quantities depend on the selected copper tube combination, insulation configuration, customization requirements, and packaging. Contact our sales team with your estimated quantity to receive a suitable wholesale quotation.
Production lead time depends on order quantity, product specifications, material availability, and customization requirements. Our sales team will confirm the estimated production schedule and shipping arrangements when preparing your quotation.
Send us your required copper pipe combination, insulation material, coil length, estimated order quantity, and destination country. Our sales team will review your requirements and provide suitable product options and pricing.
Looking for a reliable mini split line set manufacturer for your HVAC distribution business, air conditioning installation projects, or private-label product range?
DABUND PIPE supplies 99.9% pure copper line sets, factory-applied insulation, multiple copper tube combinations, customized coil lengths, and OEM solutions for international HVAC buyers.
Send us your required copper pipe sizes, product lengths, insulation specifications, estimated order quantity, and destination country. Our team will help you select suitable mini split line sets and discuss pricing, samples, customization, and delivery arrangements.
