How to Properly Flare an AC Copper Pipe to Prevent Refrigerant Leaks

Air conditioning systems are a lot like the circulatory system in the human body. Refrigerant flows through copper pipes just like blood flows through veins. And when there’s a leak? Everything starts falling apart. That’s why properly flaring an AC copper pipe is one of the most important skills in HVAC installation and maintenance.

A poorly made flare connection can lead to refrigerant leaks, reduced cooling performance, higher electricity bills, and even compressor failure. The good news? With the right tools, techniques, and a little patience, you can create leak-free flare connections like a professional HVAC technician.

In this guide, we’ll walk step by step through the proper way to flare AC copper pipes and prevent refrigerant leaks for good.

Understanding AC Copper Pipe Flaring

What Is a Copper Pipe Flare?

A copper pipe flare is a widened end of a copper tube designed to connect securely with a flare fitting and flare nut. In HVAC systems, flare connections are commonly used in mini split air conditioners, refrigeration units, and heat pumps.

Think of it like creating a funnel-shaped seal. When tightened properly, the flare presses tightly against the fitting, creating an airtight and leak-proof connection.

Without a good flare, refrigerant can slowly escape from the system — and that’s where problems begin.

Why Proper Flaring Matters in HVAC Systems

A proper flare connection does more than just hold pipes together. It helps:

• Prevent refrigerant leaks

• Maintain system pressure

• Improve cooling efficiency

• Reduce compressor strain

• Extend HVAC system lifespan

Even a tiny leak can reduce system performance dramatically over time. That’s why professional HVAC installers pay close attention to every flare they make.

Common Causes of Refrigerant Leaks

Over-Tightening the Flare Nut

Many beginners think tighter is always better. Unfortunately, that’s not true.

Over-tightening can crack the flare or deform the copper tubing. Once damaged, the connection becomes vulnerable to leaks.

Using a torque wrench is the safest way to avoid this mistake.

Uneven or Cracked Flares

An uneven flare creates gaps between the fitting surfaces. Refrigerant can escape through these tiny imperfections.

Cracks often happen when:

• The copper pipe is not deburred properly

• Cheap flaring tools are used

• Excessive force is applied

• The copper is low quality

Using Low-Quality Copper Tubing

Not all copper tubing is created equal. Thin or impure copper can split during the flaring process.

Always choose refrigeration-grade copper tubing designed specifically for HVAC systems.

Essential Tools for Proper AC Pipe Flaring

Flaring Tool Kit

A high-quality flaring tool is essential. Professional tools create smooth, consistent flares that seal properly.

There are two common types:

• Standard flare tools

• Eccentric cone flare tools

Eccentric cone tools usually provide better results with less risk of cracking.

Pipe Cutter

A clean cut matters more than people realize.

Using a hacksaw can leave rough edges and deform the pipe. A pipe cutter creates a smooth, even cut that’s ideal for flaring.

Deburring Tool

After cutting, copper tubing often has sharp metal edges inside the pipe.

Deburring removes these edges and prevents damage to the flare shape.

Torque Wrench

A torque wrench helps tighten flare nuts to manufacturer specifications.

Too loose? Leak risk.

Too tight? Cracked flare.

Proper torque is the sweet spot.

Step-by-Step Guide to Flaring AC Copper Pipes

Step 1 – Measure and Cut the Copper Pipe

Start by measuring the required pipe length carefully.

Use a pipe cutter to make a clean, straight cut. Rotate the cutter slowly and tighten gradually. Rushing this step can deform the tubing.

Remember: a smooth cut creates the foundation for a perfect flare.

Step 2 – Deburr the Pipe Carefully

After cutting, use a deburring tool to remove sharp edges inside the tubing.

Hold the pipe downward while deburring. This prevents copper shavings from falling inside the line.

Metal debris inside refrigeration systems can damage compressors and expansion valves.

Step 3 – Slide the Flare Nut onto the Pipe

This sounds simple, but many people forget it.

Before making the flare, slide the flare nut onto the copper pipe with the threaded side facing outward.

Otherwise, you’ll finish a perfect flare only to realize the nut isn’t on the pipe. Frustrating, right?

Step 4 – Clamp the Pipe Correctly

Place the copper tubing into the flaring block.

The pipe should extend slightly above the block surface — usually matching the height recommended by the flaring tool manufacturer.

Too high creates thin flares.

Too low creates incomplete flares.

Proper positioning is critical.

Step 5 – Create the Flare

Now comes the main event.

Position the flaring cone over the tubing and slowly tighten it. Apply steady pressure instead of forcing it quickly.

The goal is a smooth, even 45-degree flare without cracks or uneven edges.

Good flares look polished and symmetrical.

Bad flares look rough, thin, or jagged.

Step 6 – Inspect the Flare Surface

Before installation, inspect the flare carefully.

Look for:

• Cracks

• Uneven edges

• Thin spots

• Scratches

• Off-center shapes

If the flare looks questionable, redo it. It’s much easier to fix now than after refrigerant charging.

Step 7 – Connect and Tighten Properly

Align the flare connection carefully with the fitting.

Hand-tighten first to avoid cross-threading. Then use a torque wrench to tighten according to HVAC manufacturer specifications.

Applying a small amount of refrigerant oil to the flare surface can improve sealing and reduce friction.

Best Practices for Leak-Free Flare Connections

Use Refrigeration-Grade Copper Tubing

HVAC copper tubing is specifically designed to handle refrigerant pressure and temperature changes.

Cheap plumbing copper may not perform the same way.

Always verify the tubing meets refrigeration standards.

Always Apply Refrigerant Oil

A thin layer of refrigerant oil on the flare surface helps:

• Improve sealing

• Reduce friction

• Prevent flare damage during tightening

Think of it like lubricating a car engine — smooth movement prevents wear.

Follow Manufacturer Torque Specifications

Every HVAC system has recommended torque values.

Ignoring these values is like guessing the correct tire pressure for a car. You might get lucky, but eventually problems appear.

Professional installers rely on torque charts for consistent results.

Mistakes to Avoid When Flaring Copper Pipes

Skipping the Deburring Process

Skipping deburring is one of the fastest ways to ruin a flare.

Sharp internal edges create uneven pressure during flaring and increase the chance of cracking.

Reusing Old Flare Fittings

Old flare fittings may have worn sealing surfaces.

Even if the flare looks okay, microscopic damage can still cause refrigerant leaks.

Replacing worn fittings is usually the safer choice.

Using Cheap Flaring Tools

Low-cost flaring tools often produce inconsistent results.

A professional-grade tool may cost more upfront, but it saves time, refrigerant, and repair costs in the long run.

How HVAC Professionals Test for Refrigerant Leaks

Nitrogen Pressure Testing

Professional HVAC technicians often pressurize the system with dry nitrogen.

This helps identify leaks before refrigerant is added.

Stable pressure readings usually indicate a properly sealed system.

Soap Bubble Leak Detection

Soap bubble testing is simple but effective.

Apply leak detection solution around flare joints. If bubbles appear, there’s a leak.

It’s surprisingly similar to finding a hole in a bicycle tire.

Vacuum Testing

After pressure testing, technicians use a vacuum pump to remove moisture and air from the system.

A stable vacuum reading confirms the system is airtight.

Benefits of Properly Flared AC Copper Pipes

Improved Energy Efficiency

Refrigerant leaks force air conditioners to work harder.

A properly sealed system maintains optimal refrigerant levels and cooling efficiency.

That means lower electricity bills and better comfort.

Lower Maintenance Costs

Leak-free flare connections reduce:

• Refrigerant recharge costs

• Emergency repairs

• Compressor damage

• Service interruptions

In other words, good flaring saves money.

Longer HVAC System Lifespan

Air conditioning systems operate under high pressure.

Poor flare connections create stress points that can damage major components over time.

Proper installation helps systems last longer and perform more reliably.

Choosing the Right Copper Pipe for HVAC Systems

Soft Copper vs Hard Copper

Soft copper tubing is flexible and easier to flare, making it ideal for mini split installations.

Hard copper is more rigid and often used in commercial systems.

For most residential HVAC applications, soft refrigeration-grade copper is preferred.

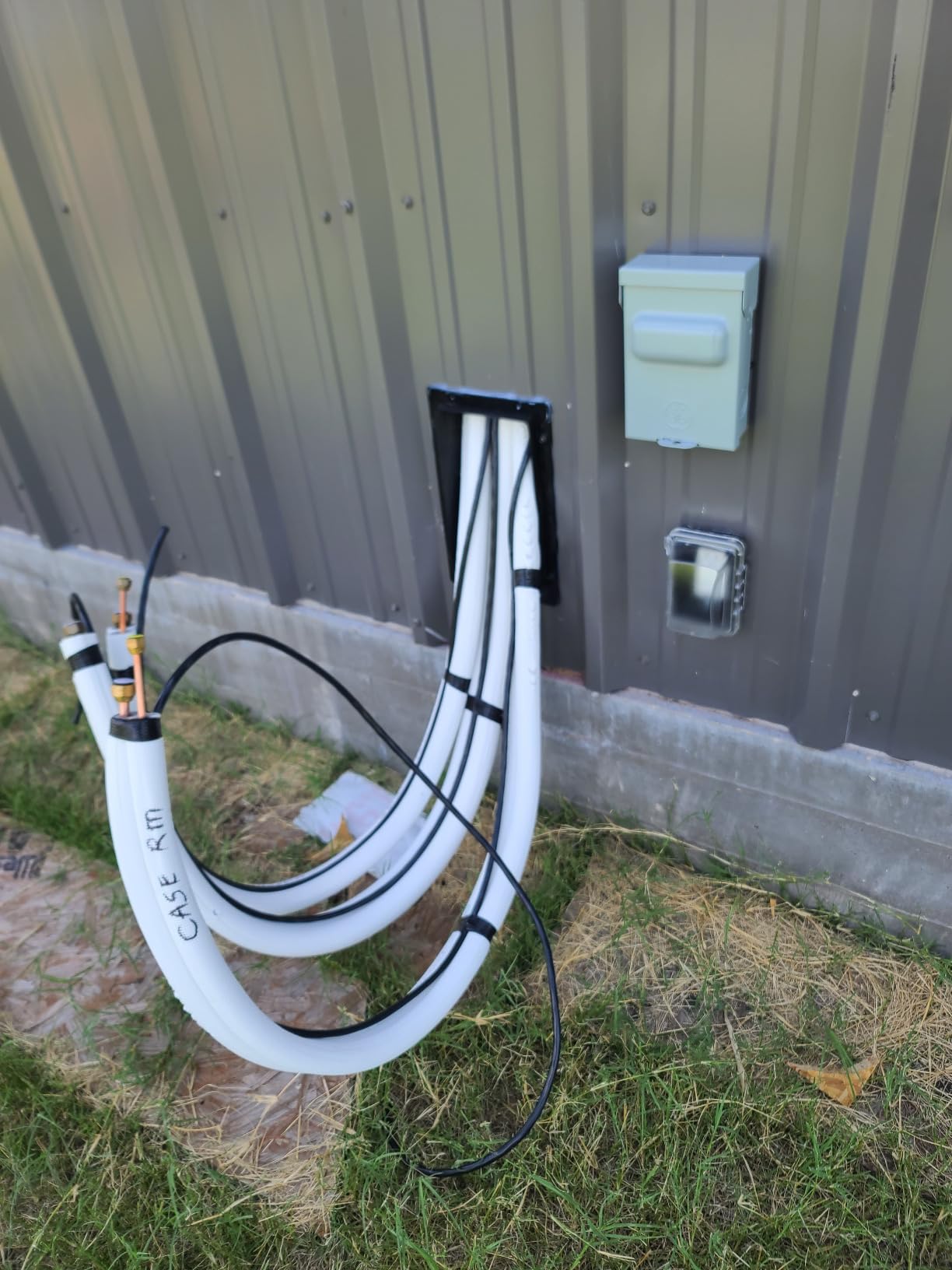

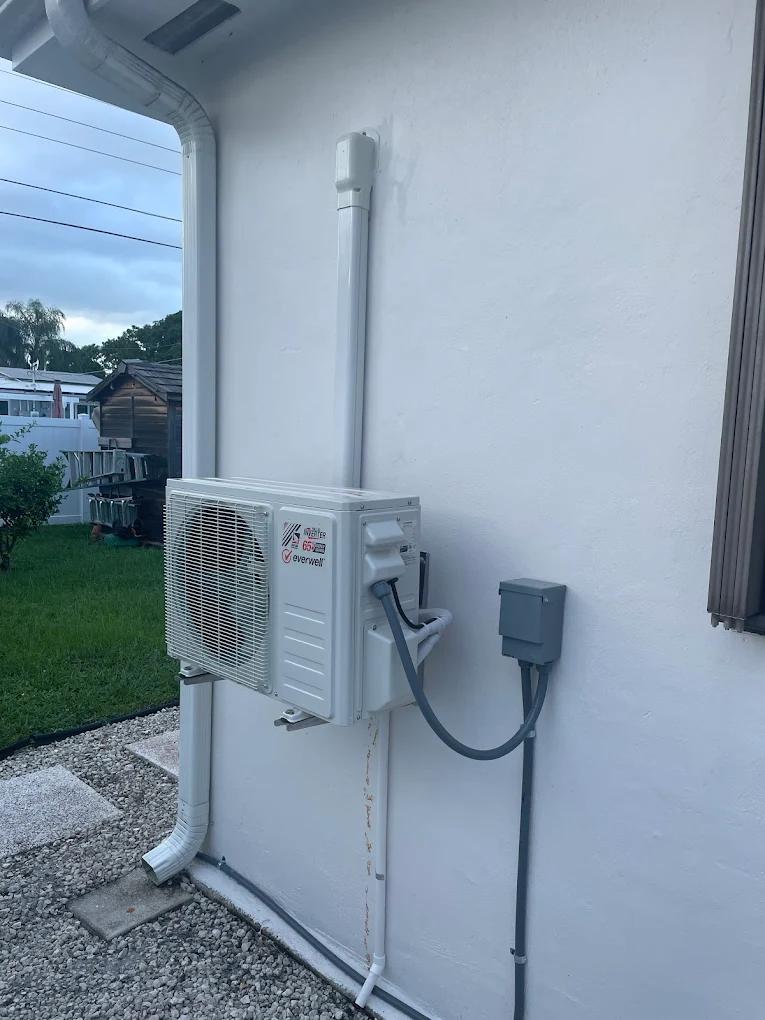

Insulated Copper Line Sets

Insulated copper line sets help:

• Prevent energy loss

• Reduce condensation

• Improve efficiency

• Protect refrigerant lines

Quality insulation is just as important as the copper itself.

Professional Tips for Perfect HVAC Flares

Keep Tools Clean

Dirty flaring tools can scratch copper surfaces and weaken flare quality.

Clean tools regularly for better performance.

Avoid Excessive Pipe Bending

Sharp bends place stress on flare connections.

Use proper tubing benders to maintain smooth curves.

Practice Before Working on Live Systems

If you’re new to flaring, practice on scrap copper tubing first.

Like learning to ride a bike, your technique improves with repetition.

How Weather and Temperature Affect Copper Pipe Flaring

Cold Weather Challenges

Copper becomes less flexible in cold environments.

This increases the risk of flare cracking.

Warming the tubing slightly before flaring can help.

Humidity and Moisture Concerns

Moisture contamination is dangerous in refrigeration systems.

Always keep copper tubing sealed until installation.

Signs of a Bad Flare Connection

Oil Residue Around Fittings

Refrigerant oil near flare joints often indicates a slow leak.

Hissing Sounds

A faint hissing noise may signal escaping refrigerant gas.

Reduced Cooling Performance

If the AC struggles to cool properly, leaking refrigerant could be the culprit.

Conclusion

Properly flaring an AC copper pipe is both an art and a science. A clean cut, careful deburring, proper flare formation, and accurate torque application all work together to create a leak-free HVAC connection.

While the process may seem simple, small mistakes can lead to expensive refrigerant leaks, system inefficiency, and compressor damage.

The good news is that with the right tools and techniques, anyone can learn to make professional-quality flare connections. Take your time, follow best practices, and always inspect your work carefully.

Because in HVAC systems, a perfect flare isn’t just about connecting pipes — it’s about protecting the entire system.

FAQs

What angle should an AC copper pipe flare be?

Most HVAC flare connections use a 45-degree flare angle.

Can I reuse old flare nuts?

Yes, but only if they are undamaged. Worn or cracked flare nuts should always be replaced.

Why does my flare connection keep leaking?

Common causes include uneven flares, over-tightening, improper deburring, or damaged copper tubing.

Should I use refrigerant oil on flare fittings?

Yes. A small amount of refrigerant oil helps improve sealing and reduces friction during tightening.

What is the best tool for flaring HVAC copper pipes?

Professional eccentric cone flaring tools are generally considered the best option for smooth, leak-free flares.

How tight should AC flare nuts be?

Always follow manufacturer torque specifications using a torque wrench.

Can bad flaring damage an air conditioner compressor?

Yes. Refrigerant leaks caused by poor flares can reduce refrigerant levels and eventually damage the compressor.

How do HVAC technicians check for leaks after flaring?

They typically use nitrogen pressure testing, soap bubble testing, and vacuum testing methods.
