How To Install An AC Disconnect Box: Step-by-Step Guide

Ever wonder how to safely shut off your AC during an emergency?

An AC Disconnect Box is essential for your home’s safety. It keeps you protected during routine HVAC maintenance.

However, improper wiring can violate NEC Article 440.14 standards. You need a reliable, code-compliant setup to avoid dangerous electrical hazards.

In this post, you’ll learn how to install an AC Disconnect Box correctly. We provide a simple, step-by-step guide for a professional installation. Let’s get started!

Understanding the AC Disconnect Box

An AC Disconnect Box acts as a vital safety bridge between your home’s power supply and your outdoor HVAC condenser. It functions as a specialized switch, allowing you to cut electricity flow instantly when the system requires service. Without this essential component, technicians would struggle to perform basic maintenance safely, as they would have to rely on the main breaker panel located inside the house. By providing a local, manual shutoff point, it ensures that the equipment remains completely de-energized while work is being performed on the unit.

You need this device for three primary reasons that keep your home and service team secure:

● Safety: It prevents accidental electrical shock by ensuring the unit is fully isolated from power before anyone touches internal components. This creates a physical barrier between the technician and the live circuit, which is crucial for preventing injuries during routine checkups or complex repairs.

● Emergency Shutoff: Should an electrical fault occur, this box offers an immediate way to stop power without needing to navigate inside your residence. This speed is critical during emergencies, as it helps contain potential damage to the condenser unit or surrounding wiring systems.

● Code Compliance: The National Electrical Code, specifically Article 440.14, mandates that a disconnect must be within sight of the equipment. It must remain readily accessible at all times, ensuring that no walls or fences block the path to the power switch.

Selecting the right hardware depends heavily on your specific electrical setup and the local environment where the unit sits. You must decide between fused and non-fused models based on whether your system already has overcurrent protection elsewhere in the circuit. If your HVAC unit requires dedicated fuse protection within the disconnect itself, a fused model is mandatory to meet safety standards. The following table helps summarize the key differences you should consider before making a purchase:

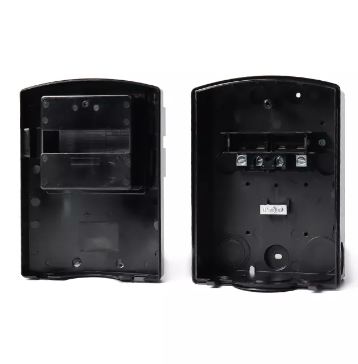

Material choice is just as important as the electrical configuration, especially when you live in tough climates. Standard galvanized steel enclosures work well for most residential settings, but they can struggle against the salt and moisture found in coastal regions. In these harsh areas, polycarbonate non-metallic enclosures are a much better choice because they resist rust and corrosion over time. For instance, companies like DABUND PIPE provide specialized non-metallic options designed specifically to withstand these challenging conditions. Choosing the right material ensures your AC Disconnect Box remains functional and safe for years, regardless of the weather outside your home.

Planning and Preparation: Before You Start

Before you even touch a tool, you must prioritize safety by securing the necessary permits for your electrical project. Local building departments often require these documents to ensure your installation meets regional safety codes and standards. Once you have the green light, you need to verify the power status at your main breaker panel. Always flip the dedicated AC circuit breaker to the OFF position and use a reliable multimeter to confirm zero voltage at the outdoor site. Skipping this verification step is dangerous, so you should test the wires twice to be absolutely certain they are dead before proceeding.

Having the right equipment on hand makes the entire installation process much smoother and more efficient for you. You do not want to realize you are missing a crucial tool while standing outside in the heat. We suggest gathering everything in one place before you begin working on your AC Disconnect Box. The following table outlines the essential items you should prepare to ensure a professional and safe installation experience:

Selecting the perfect location for your enclosure is just as important as the wiring itself. The National Electrical Code requires the unit to be within sight of the condenser, which generally means keeping it within 50 feet of the equipment. If you place it too far away, it becomes difficult for technicians to maintain a clear line of sight during emergency shutdowns. You should also ensure the mounting height is between 48 and 60 inches from the floor to allow for easy access. This height range keeps the switch away from ground moisture while remaining reachable for anyone performing urgent maintenance.

When you mount the box, choose a firm, flat surface on the exterior wall near your condenser unit. If you are working with a high-quality product like a DABUND AC Disconnect Box, you will find that the design often includes convenient knockouts for easier conduit entry. Make sure the area is free from obstructions like heavy bushes or debris that might block your path. Taking the time to plan your layout correctly prevents future headaches and helps you maintain a clean, professional setup that lasts for years. By following these preparation steps, you set yourself up for a successful project that keeps your HVAC system running reliably.

Step-by-Step Installation Guide

Begin your installation by ensuring the power is completely disconnected at your main breaker panel. You must flip the dedicated double-pole breaker to the OFF position before touching any wires. Use your multimeter to test the incoming lines at the outdoor location to confirm zero voltage exists. This simple verification step protects you from accidental shock and ensures a safe working environment. Never assume the power is off just because you flipped a switch inside the house.

Once you confirm the area is safe, you can mount the AC Disconnect Box to your exterior wall. Position it at a height of 48 to 60 inches for easy access during future maintenance. You will need to punch out the appropriate knockouts on the box to allow your conduit to enter cleanly. As a pro-tip, always insert protective plastic bushings into these holes to prevent sharp metal edges from cutting into your wire insulation over time.

Running your conduit and wiring requires careful attention to the "Line" and "Load" sides of the box. The "Line" side brings power from your home panel, while the "Load" side sends it directly to your AC unit. You should pull enough wire through the conduit to leave about 6 to 8 inches of slack inside the enclosure. This extra length makes it much easier to strip the ends and secure them into the terminal lugs without straining the connections.

The following table summarizes the essential wiring connections you need to make inside the enclosure:

Making secure electrical connections is perhaps the most critical part of the entire process. Start by attaching the green or bare ground wire to the designated grounding lug inside the box. You must ensure all terminal lugs are tightened to the specific torque settings required by the manufacturer. If you are using a DABUND AC Disconnect Box, refer to their provided manual for exact torque specifications to prevent loose connections that could lead to overheating or electrical failure.

Finally, you can finish the assembly by installing the correct fuses if your specific model requires overcurrent protection. Check the HVAC manufacturer's nameplate to ensure you select the exact fuse size recommended for your unit. After the fuses are in place, re-secure the internal plastic deadfront shield to cover all live electrical parts. This barrier prevents accidental contact and keeps the interior of your AC Disconnect Box clean and protected from debris. Once everything is tight and covered, you are ready to move on to weatherproofing and final testing.

Weatherproofing and Final Inspection

After you secure all electrical connections, you must protect your AC Disconnect Box from the elements. Apply a high-quality exterior silicone caulk along the top and sides where the enclosure meets your wall. Do not seal the bottom edge of the box. Leaving this bottom section open allows any trapped moisture or condensation to drain out naturally. This simple drainage path prevents water from pooling inside and causing corrosion on your sensitive electrical components.

Testing your work ensures that everything functions exactly as it should before you restore full power. Use a multimeter to verify continuity and check for correct polarity across all terminals. You should also perform a quick mechanical check by cycling the pullout handle between the ON and OFF positions. It must slide in and out smoothly without any resistance or binding. If the handle feels loose or fails to engage the internal contacts, double-check your alignment and ensure the box is mounted perfectly level.

Proper labeling is a final step that often gets overlooked by busy installers. You need to affix a clear, durable label to the front of your AC Disconnect Box that displays the unit voltage and amperage. This information helps future technicians identify the circuit requirements immediately without having to guess. High-quality components, such as the NEMA 3R-rated DABUND disconnect box, are specifically designed to support these labels while providing long-term resistance against harsh outdoor weather.

The following table provides a quick checklist for your final inspection phase:

When you finish these steps, you can confidently restore power at your main breaker panel. Turn on your home thermostat to confirm the outdoor condenser fires up and operates normally. If you hear the unit start, you have successfully completed the installation. Keep your workspace clean and remove any leftover wire scraps or packaging materials from the area. A tidy installation site reflects your attention to detail and makes the entire system easier to manage during future service visits.

Conclusion

A properly installed AC Disconnect Box is the backbone of a safe HVAC system.

Always check local electrical codes. Arrange for professional inspections when necessary.

Prioritize your safety and system longevity. Choose high-quality, certified components for your next installation.

Protect your home today!
