AC Disconnect Box Wiring Diagram: Complete Installation Guide

Ever wonder how to safely power down your AC for repairs? An AC Disconnect Box is the unsung hero of your HVAC system. It ensures both safety and maintenance ease.

Installing one can feel intimidating. Our guide simplifies the process. We will walk you through installing reliable units like the DABUND PCDS-60AN.

In this post, you’ll learn the correct wiring steps to meet modern safety standards. Always verify zero power with a multimeter before starting. Let’s get your system code-compliant and secure today.

What is an AC Disconnect Box and Why Do You Need One?

Think of the AC Disconnect Box as the primary gatekeeper for your cooling system. It sits between your home’s main electrical panel and the outdoor condenser unit. By providing a clear, localized point of control, it allows you to cut power to the equipment instantly. Whether you are dealing with a residential air conditioner or a light commercial heat pump, this device serves as the essential bridge for safe power management.

When we talk about why this hardware is non-negotiable, three main factors stand out. These pillars ensure that your setup remains functional and, more importantly, safe for everyone involved.

● Safety for Maintenance: Technicians need a reliable way to ensure the unit stays off while they work. By pulling a handle or flipping a switch, they create a visible gap in the circuit. This physical separation prevents accidental startups that could lead to severe electrical shock or injury during routine service calls.

● Strict Code Compliance: Local electrical inspectors look for specific setups to approve your HVAC installation. The National Electrical Code, specifically Article 440.14, mandates that a disconnecting means must be within sight and readily accessible to the equipment. Failing to meet these standards often leads to failed inspections and potential liability issues for homeowners.

● Emergency Response: Electrical faults or sudden water damage can turn a standard unit into a significant hazard. Having a dedicated shutoff allows you to kill the power immediately without running to the main breaker panel inside your home. This quick action can prevent fire risks and protect the internal components of your expensive cooling system from further damage.

To help you understand the technical requirements for these components, we have summarized the key operational standards below.

Modern hardware, such as the units manufactured by companies like DABUND, often integrates these features into a single, durable housing. They design these boxes to withstand harsh outdoor conditions while providing ample wiring space for installers. Using high-quality equipment ensures that the enclosure does not become a weak point in your electrical system. When you choose a robust model, you are investing in the long-term reliability of your entire HVAC setup. It keeps the internal breakers and fuses safe from the elements, ensuring they function perfectly when you need them most. Always remember that the goal is to create a secure environment where power is always under your control.

Planning Your Installation: Before You Start

Before you even touch a screwdriver, you need to verify your system’s specific electrical demands. Start by checking the data plate on your AC unit to confirm the voltage and amperage requirements. Most residential setups operate on 240V, but the current draw varies significantly between units. If you install an AC Disconnect Box rated for lower amperage than your unit requires, you risk overheating the switch and creating a dangerous fire hazard.

When choosing the right hardware, you have to decide between fused and non-fused models. A fused disconnect provides essential overcurrent protection directly at the unit, which is often required if your main panel does not provide specific protection for the condenser. If your system already has the necessary circuit protection at the main breaker, a non-fused version is usually sufficient. Always check your local codes and manufacturer guidelines to see which path you should take.

The physical build of your enclosure matters just as much as the electrical specs. You are placing this equipment outside, so it will face rain, heat, and potential impacts. High-quality manufacturers like DABUND offer enclosures made from durable polycarbonate or galvanized steel. These materials resist rust and UV damage, ensuring the internal connections stay dry and secure over the years.

To help you organize your shopping list, we have broken down the essential items you will need for a professional-grade installation.

Before you head to the store, take a moment to consider these specific installation needs:

● Conduit Selection: You should choose conduit based on your local environment. Flexible liquid-tight conduit is often the best choice for the final run to the AC unit because it handles vibration well. Rigid PVC or EMT conduit works better for the long run from your main panel.

● Wire Sizing: Never guess the wire gauge. It must match the circuit breaker size at your main panel. If you use wire that is too thin, it will get hot and potentially melt. When in doubt, always go with a thicker gauge to ensure safety and efficiency.

● Mounting Surface: You need a solid wall or structure to hold the weight of the box. Avoid mounting it directly onto the vibrating chassis of the AC unit itself. Constant vibration can loosen your terminal connections over time, leading to arcing and eventual failure of the switch.

Gathering these tools and materials ahead of time prevents mid-project trips to the hardware store. It also keeps your workflow steady and focused. When you have everything laid out, you can move through the wiring steps with confidence. Remember, a well-planned installation is almost always a successful one.

Step-by-Step: How to Wire an AC Disconnect Box

Wiring your AC Disconnect Box is a straightforward task if you follow a logical sequence. Start by flipping the main breaker to the off position at your service panel. Use a reliable voltage tester on the wires inside the box to confirm they carry no current. Never skip this check, as it remains your primary defense against accidental electrical shock.

Once you confirm the power is off, move to mounting the enclosure. Place it on a stable wall surface near the condenser unit, ideally at a height between 48 and 60 inches. Avoid mounting it directly onto the AC chassis, as the constant vibration will eventually rattle the internal connections loose. A solid, vibration-free wall ensures your equipment stays secure for years.

Next, focus on routing your conduit and conductors. Use protective conduit like PVC, EMT, or a flexible liquid-tight whip to shield the wires from the elements. Ensure the conduit connectors fit snugly at the box entry points to keep moisture out. Proper routing not only protects the insulation but also keeps your installation looking clean and professional.

Wiring Logic and Terminal Connections

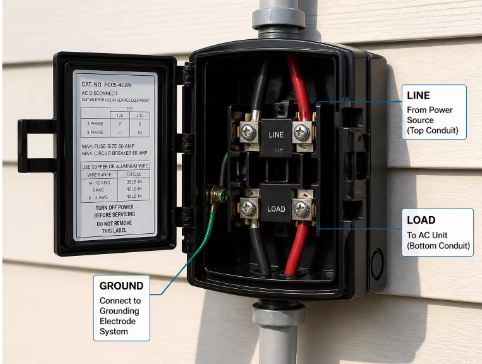

Connecting the wires correctly is the most critical part of the process. You will see terminals labeled as LINE and LOAD inside the box. Follow this simple logic to ensure power flows exactly where it needs to go:

● Line Side Connections: Take the incoming power wires from your main breaker panel. Secure the black and red hot wires into the terminals marked LINE. These terminals feed power into the switch.

● Load Side Connections: Connect the outgoing wires running to your AC unit into the LOAD terminals. This ensures power only reaches the condenser when the disconnect is engaged.

● Grounding Procedures: Attach your bare copper or green ground wires to the dedicated ground bus bar. Bonding the metal housing to the ground system prevents dangerous voltage buildup on the outer shell.

When tightening these connections, precision is key. You should always torque your terminal lugs to the manufacturer's specific requirements. Loose connections cause heat buildup and arcing, which can quickly ruin even a high-quality unit like a DABUND disconnect switch. Taking an extra moment to verify the tightness of every screw ensures long-term performance and reliability.

After securing all wires, perform a final inspection of your work. Check that no wire insulation is caught under the terminal clamps and that all strands are fully seated. Reinstall the internal safety shield or deadfront cover to protect yourself from live parts. Finally, flip the pullout handle or switch to the ON position to test the mechanical action. If it moves smoothly, you are ready to restore power at the main breaker and fire up your cooling system.

FAQ

Q: Does an AC Disconnect Box need a neutral wire?

A: Typically, no. Most 240V systems do not require one unless your specific unit includes 120V auxiliary electronics.

Q: What if the disconnect won't open or appears weathered?

A: These are clear signs the box has reached the end of its service life. You should replace it to prevent moisture from damaging internal components.

Q: How far can the disconnect be from the unit?

A: NEC guidelines require the device to be "within sight" of the equipment, generally within 50 feet.

Q: Is it safe to touch the neutral wire?

A: Never. Always assume wires carry a charge; test for current first.

Summary

Installation is now complete. Use this quick checklist to ensure your AC Disconnect Box is safe and functional.

Verify all connections are tight. Confirm the enclosure is properly sealed against weather. Finally, test the switch operation.

Proper installation protects your expensive equipment. It also provides lasting peace of mind for your home. Enjoy your reliable, code-compliant cooling system for years to come.
