What Is An AC Disconnect Box? Types, Functions And Applications

Ever wonder about that small box outside your home? It is the most critical safety component for your HVAC system.

An AC Disconnect Box is a weatherproof device. It provides a reliable way to shut off power safely.

This switch is essential for code compliance and technician protection. It ensures emergency shutdowns are always quick and easy.

In this post, you’ll learn how these boxes function. We will explore the different types and their key applications.

Understanding the AC Disconnect Box: What Does It Actually Do?

You might walk past your outdoor air conditioning unit every day without giving the AC Disconnect Box a second thought. It sits quietly on the wall, yet it serves as the primary gatekeeper for your system's electrical health. Think of it as a dedicated "kill switch" that stands between your main power panel and your equipment. When technicians need to service your unit, they rely on this device to ensure the power is completely cut off, preventing any accidental startups while they have their hands inside the machinery.

The core purpose of this device centers on the "Visible Disconnect" concept. It offers a clear, physical indication of whether the power is flowing or stopped. This is not just a suggestion for convenience; it is a vital safety requirement. Without this visual confirmation, a technician could never be certain if a system is truly de-energized. By pulling a tab or flipping a switch, they create a physical gap in the circuit, which eliminates the guesswork that often leads to dangerous electrical accidents during routine maintenance or emergency repairs.

Safety isolation remains the most critical function of these boxes. When we talk about isolating a system, we mean creating a total separation from the electrical grid. This process protects anyone working on the equipment from the risk of sudden electric shock. If a fault occurs in the main panel, the disconnect acts as a secondary layer of protection. It ensures that even if someone accidentally trips the main breaker inside the house, the outdoor unit remains safely isolated. This level of control is essential for modern HVAC setups and solar installations alike.

Beyond simple safety, you must consider the legal side of things. Electrical codes, specifically NEC Article 422.31(B), mandate that a local disconnect must be installed within sight of the equipment. This rule exists for a very good reason. It ensures that anyone responding to an emergency or performing a repair can reach the power source instantly. If you ignore these regulations, you risk failing inspections or, worse, creating a hazardous environment for your family or professional service crews. Reliable manufacturers like DABUND understand these strict requirements, which is why their designs focus heavily on meeting these specific NEC standards for both residential and commercial applications.

Using a certified AC Disconnect Box provides peace of mind that your setup is fully compliant. These devices are built to withstand harsh outdoor conditions, ensuring that the switch mechanism inside stays clean and functional over many years. When you choose a high-quality unit, you are investing in a product that has undergone rigorous testing to handle the specific voltage and current loads of your system. It is a small piece of hardware, but it carries a heavy responsibility in keeping your home’s electrical infrastructure safe, organized, and ready for any maintenance needs that might arise down the road.

Why Is an AC Disconnect Box Essential for Your System?

Think of your electrical system like a complex network of pipes. You need a reliable valve to shut off the flow when things go wrong. An AC Disconnect Box acts as this vital valve for your HVAC or solar setup. It provides a secure, localized point of control. Without it, you would have to run all the way to your main breaker panel during an emergency. Having this switch nearby saves precious time when seconds actually count the most.

● Rapid Emergency Shutdown: Fires or equipment malfunctions require an immediate response. By pulling the handle on your AC Disconnect Box, you cut power instantly. This prevents further damage to your expensive hardware. It also keeps your home safe from electrical hazards during critical moments.

● Preventing Dangerous Backfeeding: Solar systems often generate power even when the grid goes down. Without a proper disconnect, this energy could flow back into the utility lines. This creates a massive danger for workers trying to restore power. The disconnect acts as a physical barrier to keep everyone safe.

● Reliable Centralized Control: It serves as a single, dedicated location for all your power isolation needs. Whether you have a residential heat pump or a light commercial unit, it simplifies the process. You get peace of mind knowing the system is fully isolated.

We often see people worry about their system efficiency as much as they might worry about keeping their favorite beverages cold—like ensuring their Beer Cans stay chilled on a hot summer day. Just as you need the right cooler to maintain temperature, you need the right disconnect to maintain safety. It is a simple investment that pays off by protecting your entire electrical infrastructure. You do not want to leave your property vulnerable to surges or unexpected power flows.

The design of these boxes focuses on durability and ease of use. Many modern units, including those from manufacturers like DABUND, feature rugged, weather-resistant materials. They are built to handle rain, dust, and UV exposure without failing. You can lock them in the "OFF" position, which adds another layer of security against unauthorized tampering. This feature is particularly helpful if you have curious children or want to prevent accidental activation while you are away. It is all about giving you total control over how your equipment behaves.

When you integrate this component, you are following best practices for electrical safety. It bridges the gap between your main panel and your outdoor equipment. By keeping this connection clean and accessible, you ensure that any future maintenance or repairs go smoothly. Your technicians will appreciate having a clear, safe way to work on your system. It makes their job faster and much safer, which usually translates to lower service costs for you in the long run.

Key Types of AC Disconnect Boxes

Choosing the right hardware for your setup matters. Not every AC Disconnect Box works the same way for every home. You need to pick one matching your specific electrical needs. Let’s look at the three main styles you will find on the market today. Each serves a distinct purpose for your cooling or heating equipment.

Non-Fused Pull-Out Disconnects (The Standard Choice)

This is the most common style you see on residential homes. It works by using a simple, removable pull-out tab. When you pull this tab out, you physically break the circuit path. It is a very simple, cost-effective way to ensure safety. Many pros prefer it for standard HVAC systems.

● Reliable Performance: It offers a straightforward way to kill power during routine service.

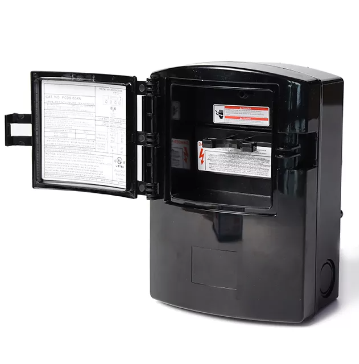

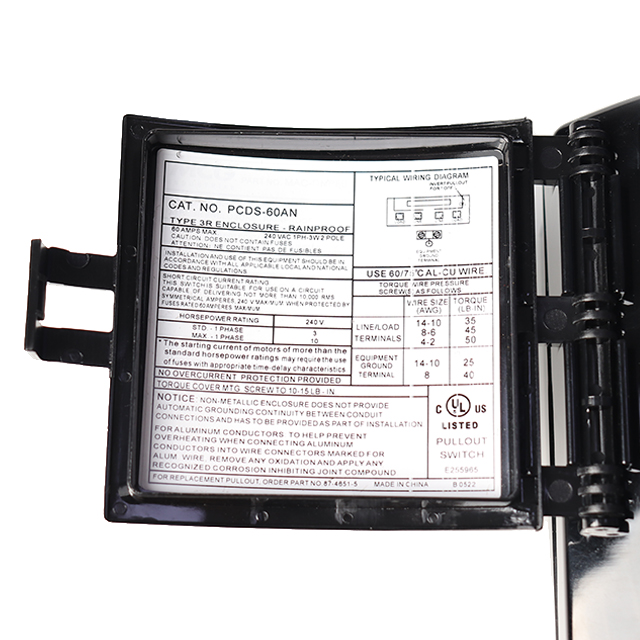

● DABUND Quality: The DABUND PCDS-60AN model stands out as a prime example here. It is widely used in residential heat pump applications.

● Budget-Friendly: Because it lacks complex internal fuses, it keeps your installation costs low.

Fused Pull-Out Disconnects

Sometimes, you need an extra layer of protection for your equipment. Fused units integrate internal fuses directly into the box. These fuses act as a guard against overcurrent and short-circuit issues. If a power surge hits, the fuse blows before it damages your expensive condenser unit.

You should consider this option if your system requires specific current limits. It is a smart move for critical cooling setups. It provides peace of mind by isolating the unit from potential electrical spikes. While it costs a bit more, the added safety is worth it.

Circuit Breaker Disconnects

These units skip the pull-out tab entirely. Instead, they use a built-in, switchable circuit breaker. You just flip the switch to turn the power off. If the breaker trips during a surge, you simply reset it. It is incredibly convenient for homeowners who want to avoid handling tabs.

● Easy Resetting: You do not need to replace fuses after a minor electrical event.

● User-Friendly: Flipping a switch is intuitive for almost anyone.

● Robust Design: These units handle repeated use very well over time.

You will find these in various setups where frequent maintenance or testing occurs. They offer a clean look and a very smooth user experience. If you prefer a "set it and forget it" approach, this is likely your best path. Just ensure the breaker rating matches your equipment requirements perfectly. This prevents nuisance tripping while keeping your system fully protected.

Choosing the Right Enclosure: Metal vs. Non-Metallic

The outer shell of your AC Disconnect Box matters just as much as the switch inside. It protects your electrical components from the elements. If you choose the wrong material, you might face rust or degradation much sooner than expected. We need to look at your local environment before making a final decision. Let’s break down the two primary options available for your outdoor installation.

Metallic (Galvanized Steel) Enclosures

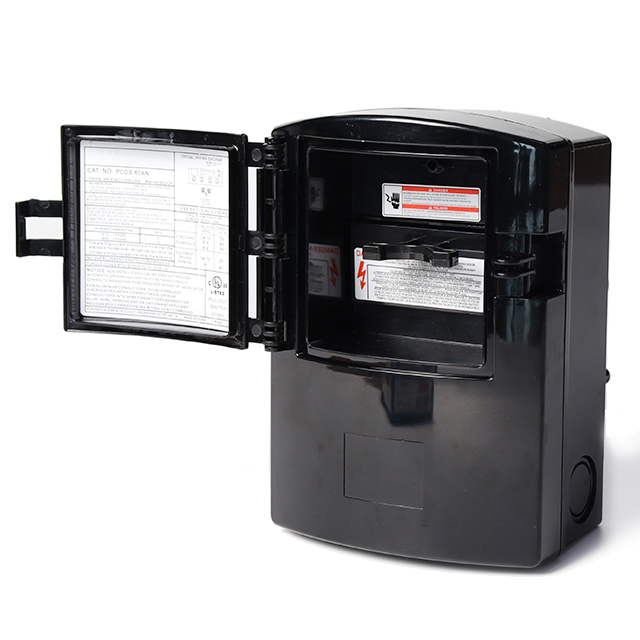

Most standard outdoor setups use galvanized steel enclosures. They are tough, reliable, and built to handle physical impacts. You will often see these rated as NEMA 3R. This rating means they are specifically designed to keep rain, sleet, and external ice from damaging the internal switch. They offer a classic, heavy-duty feel that many contractors trust for standard residential projects.

● Impact Resistance: Steel provides a solid barrier against accidental bumps or falling debris.

● Proven Durability: These boxes have been the industry standard for decades because they last.

● NEMA 3R Protection: This rating ensures your equipment stays dry during heavy storms.

Non-Metallic (Polycarbonate) Enclosures

Sometimes, steel is not the best choice for your specific location. If you live near the ocean, salt air will eat through metal over time. This is where high-grade plastic comes into play. For these challenging coastal or high-humidity environments, DABUND offers corrosion-resistant polycarbonate enclosures. They are specifically engineered to withstand constant salt-water exposure and harsh UV degradation.

● Rust-Free Performance: You never have to worry about the box flaking or corroding due to moisture.

● UV Protection: These materials are specially treated to prevent the plastic from becoming brittle under the hot sun.

● Longer Outdoor Life: By avoiding metal oxidation, these enclosures ensure your AC Disconnect Box stays functional for many years.

You might think plastic sounds less sturdy, but modern polycarbonate is incredibly strong. It handles temperature swings without warping or cracking. It also provides an extra layer of electrical insulation, which is a nice bonus for safety. If your home sits in a humid climate or near a saltwater breeze, this material is the smarter, more practical investment. It keeps your electrical connections safe from the invisible damage that moisture and salt cause every single day. Always check your site conditions before you buy. Choosing the right material now saves you from a headache later.

Applications: Where Are AC Disconnect Boxes Used?

You might be surprised by how many places rely on an AC Disconnect Box to keep things running safely. It is not just for your home air conditioner. These devices appear wherever high-voltage equipment needs a reliable, local power shutoff. From your backyard pool to large industrial sites, they provide the same essential safety barrier.

Common HVAC and Residential Uses

Most people first encounter these boxes when installing central AC or heat pump systems. They sit right next to the outdoor condenser unit. This placement allows technicians to kill the power instantly before they touch any internal wiring. Mini-split systems also require them. Because these ductless units have sensitive compressors, a local disconnect is mandatory for safe servicing. It ensures that the power stays off while the work happens.

● Central AC Units: They provide the necessary safety isolation for heavy-duty cooling motors.

● Heat Pump Systems: They protect the outdoor unit from electrical surges during seasonal operation.

● Mini-Split Compressors: They offer a compact, accessible way to isolate power for ductless units.

Solar and Industrial Applications

Solar energy systems also depend on these boxes to manage the connection between the inverter and the grid. If the grid goes down, the disconnect prevents the solar system from backfeeding energy into the lines. This protects utility workers from unexpected shocks. Beyond solar, you will find them in industrial areas. Pump houses, ventilation fans, and large-scale cooling equipment all use them to maintain a zero-energy state during repairs.

Recreational and Specialized Environments

Do you have a swimming pool or a hot tub in your backyard? You likely have a disconnect box nearby. These areas are particularly high-risk because water and electricity are a dangerous mix. A properly installed AC Disconnect Box ensures you can shut down the pump or heater instantly if a leak or malfunction occurs. It is a simple piece of insurance for your family’s safety.

These boxes are also common in pump houses where irrigation systems operate. They protect the motor from electrical fluctuations that might occur during heavy rain or storms. No matter where you install them, the goal remains the same. You want a reliable, weatherproof switch that you can trust. Whether you are managing a small home spa or a sprawling industrial ventilation network, the disconnect serves as the vital link. It keeps your equipment running efficiently while ensuring that everyone stays safe during maintenance.

FAQ

Q: Why do I need an AC disconnect if I have a main breaker?

A: It provides essential local isolation, allowing technicians to safely shut off power directly at the equipment without navigating to the main panel.

Q: What is the difference between an AC and DC disconnect?

A: An AC disconnect isolates the inverter from the electrical grid, while a DC disconnect interrupts the flow of direct current from solar panels.

Q: Is an AC disconnect required for all solar installations?

A: Yes, it is typically mandatory for grid-tied systems to ensure safety during maintenance and emergencies.

Q: Can I install an AC disconnect myself?

A: No, consult a licensed professional to ensure compliance with local electrical codes.

Conclusion

The AC Disconnect Box is vital for safety and code compliance.

Always prioritize quality, certified components for long-term reliability.

Consider DABUND for UL/CSA certified options and flexible support.

They provide reliable supply chain solutions for your specific project needs.

Consult a licensed professional to ensure your system remains properly protected.
