How To Test And Replace An AC Disconnect Box

Is your air conditioner acting up?

A faulty AC disconnect box could be the hidden culprit behind your cooling troubles.

Burnt plastic or corrosion often signals a dangerous electrical failure.

Ignoring these signs puts your home and HVAC system at risk.

Safety and reliability are our top priorities.

In this post, you’ll learn how to safely test your unit.

We will guide you through the complete replacement process.

Follow along to restore your system with confidence.

What Is an AC Disconnect Box and Why Is It Important?

Think of the AC disconnect box as the primary gatekeeper for your outdoor cooling system. It sits right next to your condenser, acting as a manual safety switch that cuts off power whenever you need to perform maintenance or handle an emergency. Without it, you would have to trek back to your main electrical panel inside the house to kill the power every single time you want to clean your unit or fix a minor issue.

This simple metal or plastic enclosure serves several critical functions that keep your home safe and your equipment running smoothly. When you pull the handle or flip the switch, it physically breaks the electrical connection. This ensures that no live current reaches the unit while you work. It is the difference between a safe afternoon of repairs and a dangerous encounter with 240 volts of electricity.

Beyond just being a switch, this box is a vital layer of protection for both homeowners and professional technicians. When a technician arrives to service your system, the first thing they look for is this box. They need to know that they can kill the power locally and lock it out. If the box is damaged, rusted, or failing, they cannot safely do their jobs. It is not just about convenience; it is about following the rules of electrical safety to prevent accidents.

Compliance with electrical codes is another reason why you should never ignore the condition of your disconnect. These boxes must meet specific standards, such as those set by UL (Underwriters Laboratories), to ensure they can handle outdoor weather and high voltage without melting or catching fire. Using certified equipment, like the robust solutions provided by manufacturers such as DABUND, ensures your setup meets the necessary safety benchmarks.

● Weather Resistance: Outdoor units face rain, heat, and humidity daily. A proper box stays sealed to keep moisture away from the sensitive wiring inside, which prevents dangerous arcing.

● Durability Requirements: Electrical codes demand equipment that stands up to physical impact and environmental stress. A cheap or uncertified box will often degrade quickly, leading to loose connections and potential fire hazards.

● Reliable Performance: When you choose high-quality, certified hardware, you reduce the risk of unexpected power failures. This keeps your AC running efficiently during the hottest months of the year without constant worry.

You should always verify that your equipment has the right certifications stamped on the label. If you find that your current box is showing signs of age or lacks these safety markings, it is time to consider a replacement. Investing in a reliable AC disconnect box now saves you from much larger headaches, such as compressor damage or electrical fires, later down the line. It is a small piece of hardware that carries a massive responsibility for your home's overall electrical health.

Safety First: Essential Precautions Before You Start

Before you even think about touching the AC disconnect box, you must prioritize your personal safety above everything else. The golden rule of electrical work is simple: always kill the power at the main circuit breaker panel inside your home. Never assume the switch near the unit is enough to protect you from a shock. You need to flip the specific breaker labeled "AC" or "Condenser" to the OFF position, and it is a smart move to tape it down so nobody accidentally turns it back on while you are working outside.

Once you have flipped that breaker, you still have to prove the system is actually dead. Relying on your memory or a visual check is a recipe for disaster. Use a reliable non-contact voltage tester to scan the wires inside the box. If the device beeps or lights up, you still have live current running through the lines, and you must head back to the panel to find the correct breaker. Never proceed until you get a zero-voltage reading on every single wire inside that housing.

Beyond the electrical hazards, you also need to consider where your home is located. If you live near the ocean or in a humid, salt-heavy area, standard metal boxes will turn into a rusty mess within a few short years. Corrosion eats away at the metal, creates gaps, and eventually compromises the integrity of your electrical connections. This is exactly why you should look into non-metallic, polycarbonate enclosures for your setup.

● Corrosion Resistance: Polycarbonate materials do not rust or oxidize when exposed to salt air. They stay intact for years, which keeps the internal components dry and clean.

● Material Durability: High-quality options, such as the specialized series from DABUND, are engineered specifically to withstand harsh coastal conditions. They offer the same structural strength as metal but without the long-term maintenance headache of oxidation.

● Improved Longevity: By choosing the right material for your environment, you ensure the AC disconnect box remains a reliable barrier against the elements. It protects your wiring from moisture, dust, and debris, which are the primary enemies of outdoor electrical systems.

If you are unsure about the environment you live in, take a quick look at your neighbor's units or the current condition of your own box. If you see signs of flaking paint, orange rust, or crumbling metal, it is a clear indicator that your current unit is losing the battle against the weather. Switching to a non-metallic, corrosion-proof model is a proactive way to avoid future failures. It is much easier to swap the box now than to deal with a short circuit during the peak of a summer heatwave.

How to Test Your AC Disconnect Box for Faults

Before you start ripping out hardware, you need to confirm if the AC disconnect box is actually the problem. Start with a thorough visual inspection of the entire unit. Look closely at the plastic casing for any hairline cracks or signs of extreme heat. You should also inspect the terminal lugs inside for rust, corrosion, or telltale black burn marks. These visual cues often tell you exactly why the system stopped working before you even touch a tool.

If the box looks fine on the outside, you need to grab your multimeter to check the electrical flow. Set your meter to the AC voltage range, usually marked as 240V or higher. Carefully touch your probes to the incoming "Line" terminals, which bring power from your main panel. You should see a reading of approximately 240 volts. If you do not see this, the issue is likely back at your main breaker panel, not the disconnect itself.

Next, test the outgoing "Load" terminals while the disconnect handle is plugged in or the switch is set to ON. If you read 240V at the Line side but 0V at the Load side, your box has failed internally. This usually means the internal fuses have blown or the mechanical contacts inside the switch have burned out. In these cases, the internal components are no longer bridging the gap, and the unit cannot receive the power it needs to run.

If you have a model that uses fuses, you should also perform a quick continuity test. Make sure the main breaker is OFF, pull the disconnect handle out, and remove the fuses from their clips. Set your multimeter to the continuity or Ohms mode. Touch one probe to each end of the fuse. If the meter displays "OL" or stays silent, the fuse is blown and must be replaced. A healthy fuse will cause the meter to beep or show a near-zero resistance reading.

● Switch Functionality: With the power off, set your meter to continuity mode and place the probes across the line and load terminals. When the switch is in the ON position, you should hear a beep, indicating a closed circuit.

● Open Circuit Check: Flip the switch to the OFF position and test the same terminals again. You should get no reading or an "OL" display, which confirms the switch is successfully breaking the circuit.

● Mechanical Failure: If the switch feels loose, gritty, or fails to show continuity when ON, the internal mechanism is worn out. Even if the box looks clean, this internal wear prevents reliable power delivery and requires a full replacement of the AC disconnect box.

Step-by-Step: How to Replace a Broken or Melted AC Disconnect Box

Before you begin, gather your essential tools: a screwdriver, wire strippers, a hammer, and a fresh AC disconnect box. Take a clear photo of the internal wiring before you touch anything. This simple snapshot acts as your map, ensuring you connect every wire back to the correct terminal later. Having this visual reference saves you from guessing which wire belongs where when you are deep into the installation process.

To remove the old unit, start by loosening the terminal screws and pulling the wires free. Use a hammer and flathead screwdriver to tap the conduit locknuts counter-clockwise until they spin off. If the box feels stuck to the wall, it might be glued from a previous install. Carefully slide a razor knife or a thin screwdriver behind the enclosure to break the seal without damaging your siding or brickwork.

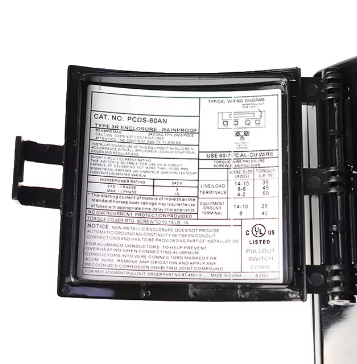

When preparing your new enclosure, focus on the knockouts. If you are installing a DABUND PCDS-60AN, follow the specific knockout alignment to ensure your conduit enters the box smoothly. Pounding down on the second-thickest ring until the sides touch, then squeezing with linesman pliers, creates a clean opening. Use your crimpers to trim any jagged metal edges that could scrape your wire insulation during the pull.

Mount the box level against the wall using heavy-duty screws. Feed your electrical whips back into the new housing and tighten the locknuts securely. Connect your ground wires to the grounding bar first, then land the "Line" wires (L1/L2) from the home panel to the top terminals. Finally, attach the "Load" wires (T1/T2) leading to your AC unit to the bottom terminals. Double-check every connection by giving them a firm tug.

● Torque Matters: Loose connections are the leading cause of melted boxes. Use your screwdriver to ensure every lug is tight enough to prevent the wires from wiggling, as this motion creates heat and eventually leads to failure.

● Weatherproofing: Apply a bead of clear outdoor silicone sealant across the top and sides of the box where it meets the wall. This prevents rain from seeping behind the unit and causing long-term water damage.

● Drainage: Always leave the bottom edge of the box unsealed. This small gap allows condensation to escape, which keeps the internal components dry and prevents the corrosion that often kills an AC disconnect box prematurely.

Post-Installation Testing and System Optimization

Once you have finished the wiring, it is time to bring the system back to life. Keep the disconnect handle in the OFF position while you head back to your main electrical panel. Flip the AC breaker to the ON position and return to the outdoor unit. Use your voltmeter to confirm that 240V is reaching the incoming line lugs. Only after you verify this voltage should you engage the AC disconnect box switch to power up the condenser.

Listen closely as the unit starts. It should hum to life smoothly without any strange buzzing or clicking sounds from the box. If you hear anything unusual, pull the disconnect immediately and re-check your terminal connections. A successful start means your installation is solid, but your work is not quite finished yet. You need to understand why the old box failed to prevent the same thing from happening again.

Most disconnects burn because of loose wiring. Even a slightly wobbly connection will arc under the heavy load of an AC compressor, which quickly turns your AC disconnect box into a charred mess. Grab your screwdriver one last time to ensure every single lug is torqued down tight. If the wires feel loose or show any signs of discoloration, trim back the ends to reach fresh, clean copper before reconnecting them.

You should also use an amp probe to watch the unit during its startup sequence. This is the best way to see if your compressor is struggling. If you see the starting amperage spike above 40 amps, even for a fraction of a second, your system is working too hard. This high heat at every start will eventually destroy your compressor windings and ruin your new electrical components.

● Hard Start Kits: If your unit pulls more than 40 amps, install a hard start kit immediately. This simple device provides the extra torque needed to get the motor spinning quickly, which reduces the duration of that high-amp startup spike.

● Compressor Health: A compressor that pulls excessive power is essentially turning that energy into heat instead of cooling. By lowering the startup load, you extend the life of your entire HVAC system and protect your electrical connections.

● Preventive Maintenance: Keep an eye on your amp readings during the first few days of operation. If the numbers remain stable, you have successfully optimized your system and prevented the primary causes of premature equipment failure.

FAQ

Q: Can I replace an AC disconnect box myself?

A: Yes, if you are comfortable with electrical work. Always turn off the main breaker, test for zero voltage, and follow safety protocols. If unsure, hire a licensed electrician.

Q: How do I know if my AC disconnect box is compatible with my unit?

A: Check your AC unit’s nameplate for voltage and amperage requirements. Ensure the new box, like the DABUND PCDS-60AN, matches these ratings.

Q: Why does my AC disconnect box smell like burning plastic?

A: It indicates overheating from loose connections or excessive current. Inspect it immediately; replacement is likely necessary.

Q: What is the difference between a fused and non-fused disconnect box?

A: Fused boxes provide overcurrent protection for the unit, while non-fused versions serve only as a power isolation switch.

Conclusion

A functional AC disconnect box is the backbone of your HVAC safety.

Always prioritize your personal safety when working with electricity.

Perform annual visual inspections to catch wear early.

Choose high-quality, durable components for all your electrical needs.

Stay proactive to keep your system running smoothly for years.
