AC Control Board Failure: Top Symptoms And Replacement Guide

Is your home suddenly feeling like a sauna?

A broken AC Control Board might be the hidden culprit.

It acts as the central brain of your HVAC system.

When it fails, your cooling cycle stops completely.

This can be incredibly stressful during hot summer days.

However, catching the warning signs early saves you money.

In this post, you will learn how to identify common failure symptoms.

We will also guide you through the safe replacement process.

Let’s get your home back to a comfortable temperature.

What is an AC Control Board and Why Does It Fail?

Think of the AC Control Board as the central nervous system of your cooling unit. It acts as the primary brain, constantly processing signals from your thermostat to keep your home comfortable. When you adjust the temperature, this board immediately triggers the necessary components. It coordinates the gas valves, igniter sequences, blower motors, and compressor cycles to ensure everything runs in perfect harmony. Without this vital component, your system simply cannot translate your comfort settings into actual cooling or heating actions.

Most boards are built to last, but they face harsh conditions every single day. Understanding why they break down helps you spot potential issues before your home turns into an oven. Here are the most common factors that lead to failure:

● Natural Age and Wear: Electronic components have a finite lifespan. Over 10 to 15 years, capacitors dry out and solder joints become brittle. These parts naturally degrade through constant operation, eventually leading to a complete loss of function.

● Environmental Stress: Humidity is a silent killer for electronics. Moisture in the air creates corrosion on delicate circuits, while extreme heat forces components to expand and contract repeatedly. This physical stress weakens connections and causes internal damage over time.

● Electrical Hazards: Power surges are particularly dangerous for sensitive circuits. Lightning strikes or grid fluctuations send excess electricity through the board, burning out delicate pathways instantly. Even small, frequent surges from large appliances starting up can cause cumulative damage that shortens the board's life.

● System Overload: Your HVAC system relies on proper airflow to stay cool. When air filters are clogged, the blower motor works much harder to push air through the vents. This extra effort generates significant heat, which radiates back to the board and causes premature component failure.

We often see these issues during peak seasons when systems are pushed to their limits. Many homeowners assume the entire unit is broken, but the problem is usually isolated to this small circuit board. If you notice your system acting strangely, check these environmental factors first. Keeping your filters clean and ensuring your electrical supply is stable goes a long way.

Reliable hardware makes a difference when it is time for a replacement. For instance, professional-grade options like the DABUND universal control board are engineered to handle these common stressors. They include features that protect against rapid cycling and help manage fan speeds more efficiently. Using a high-quality replacement ensures your system can handle the demands of your local climate without failing again next summer. It is about choosing a component that matches the intensity of your usage.

Top Symptoms of a Failing AC Control Board

When your cooling system starts acting up, the AC Control Board is often the first place to look. It communicates with every part of your unit, so when it fails, the symptoms are usually quite obvious. You might notice the system completely ignores your thermostat commands, leaving you stuck in the heat. It feels like the unit has lost its connection to the world, as no amount of adjusting the temperature settings will force it to kick into gear. This total unresponsiveness is a classic sign that the board is no longer sending or receiving the necessary electrical signals.

Beyond a total shutdown, you might encounter erratic behavior that keeps you up at night. Short-cycling is a common headache where the unit turns on and off rapidly, never actually cooling the space. Alternatively, the system might run continuously without ever reaching your desired set point. These patterns put immense stress on your compressor and blower motor. If you ignore these signs, you risk causing permanent damage to other expensive parts of your HVAC setup.

Blower fan anomalies are another frequent indicator of trouble. Sometimes the fan will stay on indefinitely, blowing air even when the cooling cycle has finished. Other times, it refuses to start at all, leaving the system dormant. These issues often stem from damaged relays on the AC Control Board that have become stuck in the closed or open position. If you hear constant clicking or buzzing coming from the control box, it is a clear sign that these mechanical switches are struggling to maintain a solid connection.

Modern systems often try to help you diagnose these issues through LED status lights. You should consult your system manual to interpret these flashes, as they provide specific error codes. A single flash might mean a simple connection error, while continuous blinking often points to a deeper hardware failure. If you see no lights at all, the board is likely not receiving power or has suffered a catastrophic internal failure. Always look for physical signs like burning smells or charred circuitry before you decide to replace the unit entirely.

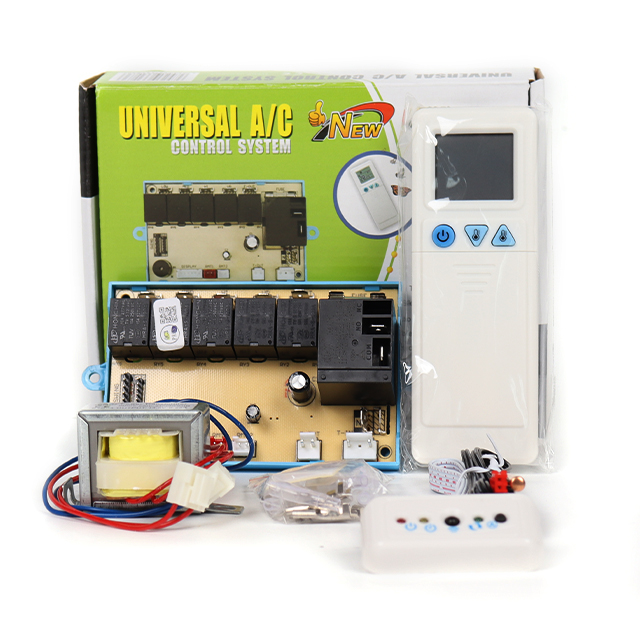

If you confirm the board is toast, you need a reliable replacement. For those managing non-inverter split systems, brands like DABUND offer a universal AC Control Board that simplifies the entire process. These boards come equipped with 5 working modes and 3 fan speeds, making them a versatile choice for many different setups. They are designed to be user-friendly, which helps you get your system back up and running without dealing with complex, proprietary electronics that are hard to source.

How to Diagnose Your AC Control Board

Before you even touch the AC Control Board, safety must be your top priority. You should always shut off the main power at the circuit breaker panel first. Never assume the power is off just because the unit stopped running. Use a reliable non-contact voltage tester to confirm there is zero electrical current flowing through the wires. Working on live circuits is dangerous and can lead to serious injury or further damage to your expensive equipment.

Once the power is confirmed off, you need to understand the electrical map of your system. Every unit comes with a wiring diagram, which is your best friend during this process. You should study the Legend to identify what those cryptic abbreviations actually mean. Then, look at the Connection Diagram to match wire colors to their specific terminals. Finally, follow the Schematic Diagram to trace the electrical path and see how power flows from the source to each component.

There is a secret most professionals know: there is no magic "test" button to prove a board is bad. You are essentially playing detective by proving every other part of the system is working perfectly. If you have a solid 24V signal arriving at the board's input terminal but the board fails to send power to the motor, you have likely found your culprit. It is a process of elimination that requires patience and careful observation of how the system reacts to your inputs.

If you are still unsure, run through this simple component checklist to rule out easier fixes:

● Inspect Molex Plugs: Check these multi-socket connectors for any signs of looseness or corrosion. Sometimes a simple wiggle of the connector or a pin reseating is all it takes to restore communication.

● Check the Transformer: Use your multimeter to verify the transformer is outputting the correct voltage to the board. If the transformer is dead, the board will look like it has failed even when it is perfectly fine.

● Bypass the Thermostat: You can manually jump the terminals to see if the system responds. If the unit kicks on after you bypass the thermostat, the board is healthy and the thermostat is the real problem.

When you are deep in the diagnostic process, remember that loose connections are surprisingly common. We often find that cracked solder joints or wires pulled slightly out of their housing cause intermittent failures. If you find a loose wire, fix it securely before assuming you need a new AC Control Board. Taking these extra steps saves you time, money, and the frustration of replacing a part that was never actually broken in the first place.

Repair vs. Replace: Making the Right Choice

When your system stops working, you might be tempted to fix the AC Control Board yourself. You could try soldering a loose relay or bridging a broken circuit trace. While this sounds like a smart way to save money, it is rarely a long-term solution. These repairs often fail quickly because the surrounding components have already aged and weakened. You might fix one spot only to have another part of the board fail a few weeks later.

Deciding when to walk away from a repair is a vital skill for any homeowner. You should always opt for a full replacement if you notice signs of severe damage. This includes large burn marks, widespread corrosion, or multiple failed relays on the board surface. These issues indicate the board has reached the end of its life cycle. Trying to salvage such a damaged unit is a waste of your time and effort.

Choosing to replace your aging board is often the smartest move for your system. Modern units offer significant efficiency gains that older boards simply cannot match. For example, the DABUND universal AC Control Board is designed with an upgraded fast-plug transformer socket. This feature makes the installation process much faster and reduces the risk of wiring mistakes. It eliminates those frustrating maintenance headaches that come from dealing with loose connections or outdated plug designs.

Upgrading to a modern board also provides better protection for your other expensive HVAC components. Newer boards often include advanced features like built-in compressor delay timers. These timers prevent the system from rapid cycling, which protects your motor from unnecessary strain. By installing a fresh, high-quality unit, you ensure your system runs smoothly for years to come. It is a proactive way to maintain your comfort without having to worry about constant, minor electrical failures.

● Consistency: A new board ensures that all signals sent to your blower and compressor are clean and stable.

● Ease of Use: Modern designs like the DABUND series prioritize simple installation, which helps you avoid common technician errors.

● Peace of Mind: You get a warranty with a new board, which gives you confidence that the part will actually perform as expected.

● Future-Proofing: Newer technology is often more compatible with modern thermostats and smart home systems, giving you more control over your environment.

FAQ

Q: Can I use a universal board for my inverter AC?

A: No. Most universal boards, including the DABUND model, are designed exclusively for non-inverter split systems. They cannot manage the complex power requirements of inverter-driven compressors.

Q: What do I do if my system has no diagnostic lights?

A: Lack of lights often indicates a power supply failure. Check your circuit breakers, fuses, and transformer voltage first. If these are functional, the board itself has likely failed.

Q: Is it safe to wiggle wires to find a loose connection?

A: Use extreme caution. Always wear rubber gloves and ensure the system is de-energized. Never touch live components, as electrical shock is a serious risk.

Q: How do I know if the problem is the thermostat or the board?

A: A technician can bypass the thermostat by jumping the R and Y terminals. If the system starts, the thermostat is faulty; if it remains unresponsive, the board is likely the issue.

Conclusion

The AC Control Board acts as your system's essential brain.
