3. PVC platic pipe is coverd whole aluminum pipe, to protect the aluminum pipe not to be wet, keep the good qualiy.
-
DBJ-003
-
DABUND
-
Copper
-
1M - 10M
Material
Color
Keywords
Application
Mini Split AC Copper Aluminum Line Set
HVAC Parts are produced by Dabund Pipe since 2008 years
In the Heating, including insulated aluminum pipe, wall pipe with cover and drain hose, wire cable. Get free sample on qualified Mini split air conditioner kit Venting & Cooling System.
Aluminum Tube: 99% pure Aluminum
Copper Tube: ASTM B280 & C12200 DHP
Insulation: High density closed cells polyethylene foam
Working Temperature: meets/exceeds ASTM C 1427-07
Surface burning characteristics: UL 94, top-rated for Surface Burning Characteristics – UL 723 Flame and Spread Index less than 25 and Smoke Development Index less than 50
Meets ASTM E84 for smoke and fire (25/50)
Superior tear resistance, UV resistant
Key Features of Copper Aluminum Line Set
Complete AC Installation Kit with Full Accessories
Aluminum copper pipe kit including one set of insulated air conditioner pipe, size 3/8" + 3/4" 15 ft, plus accessories such as communication wire, 3m drain hose, wall pipe cover, and necessary parts.

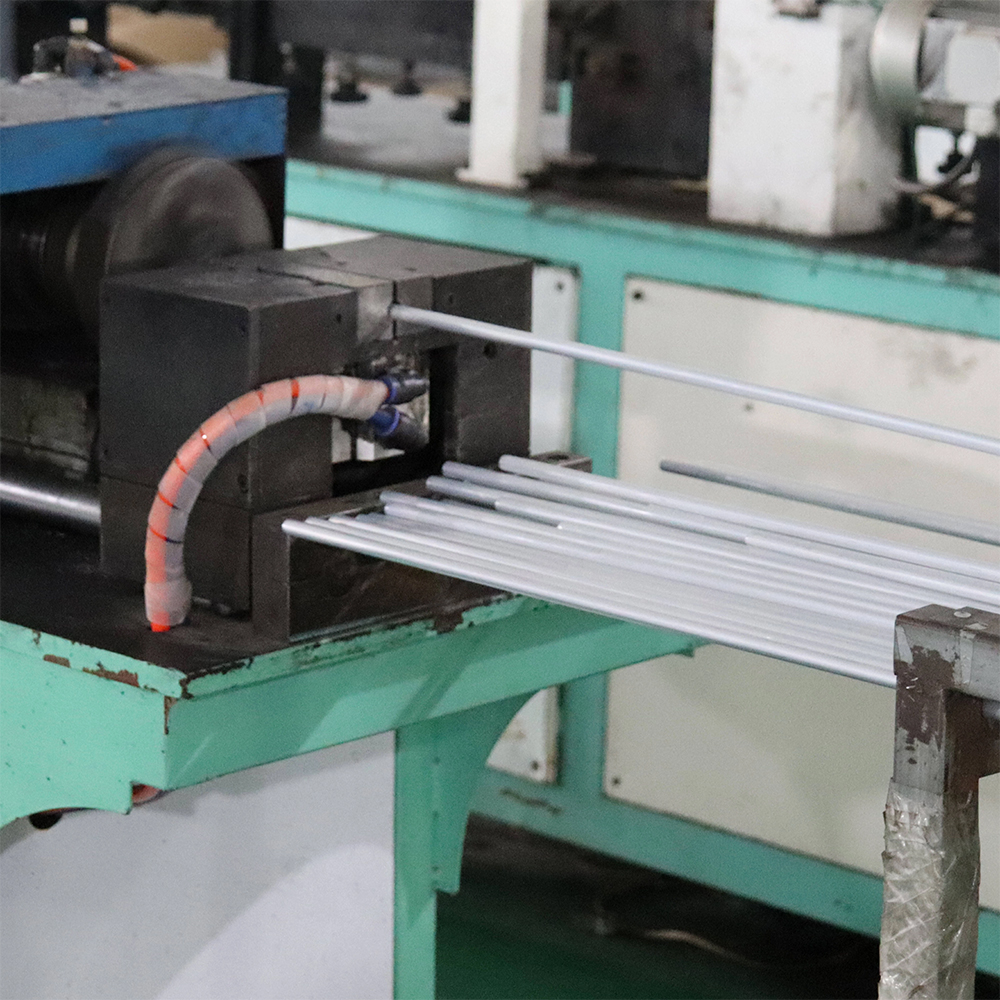

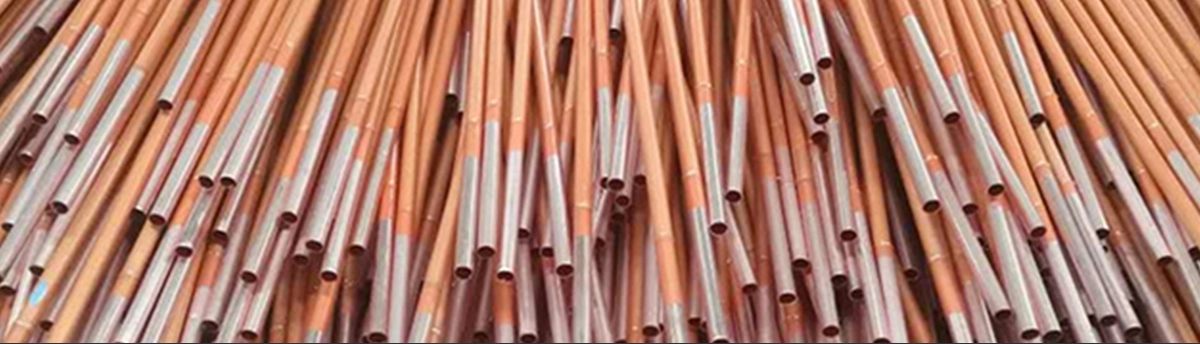

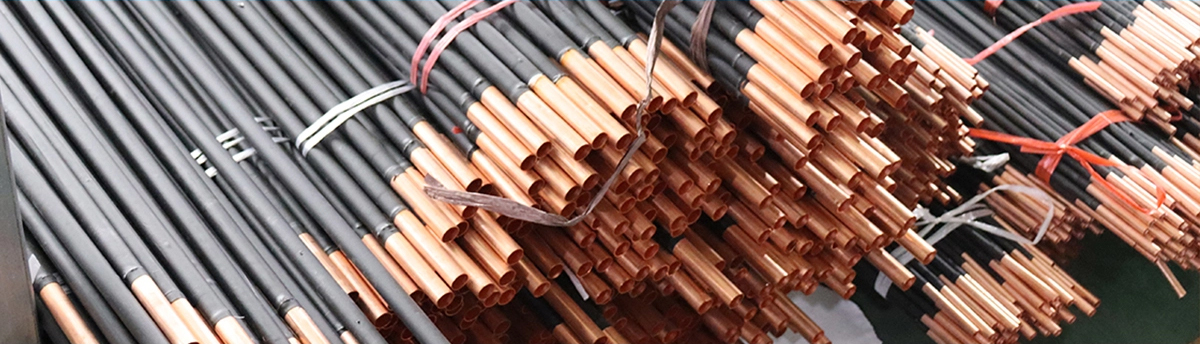

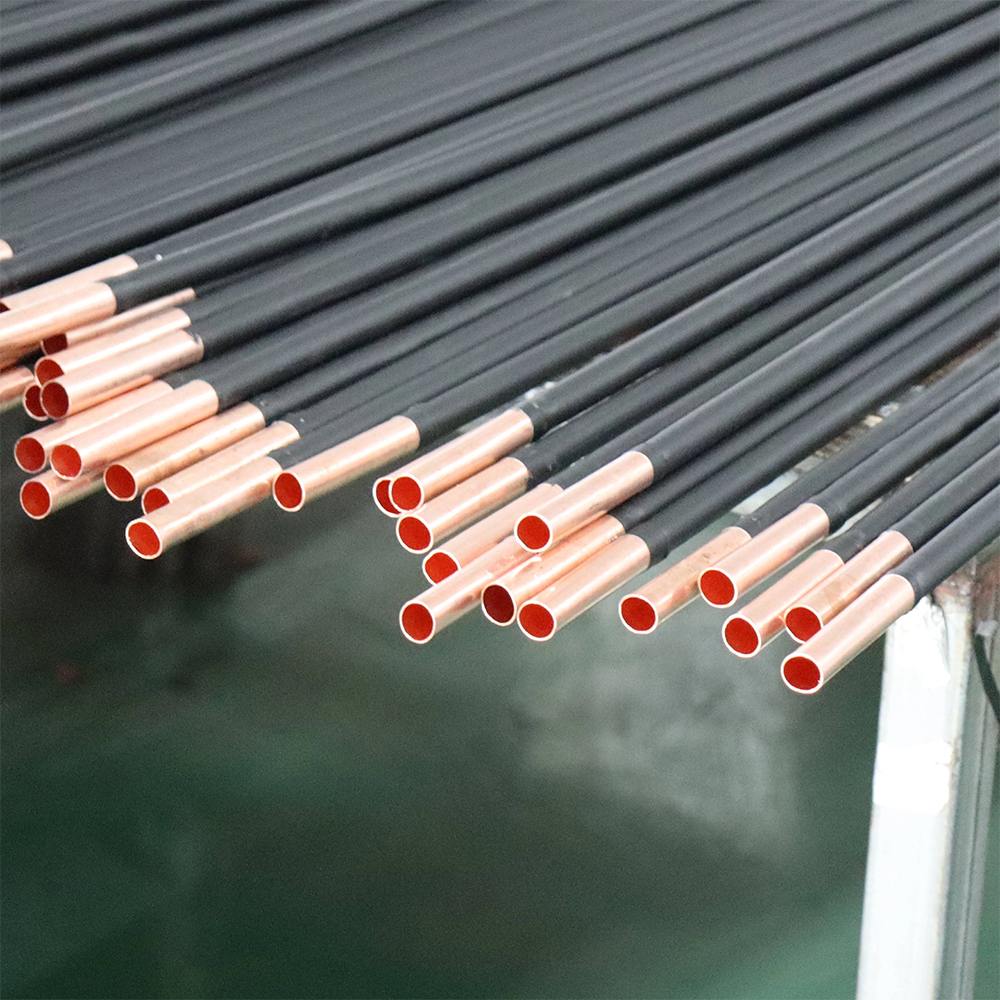

Copper Ends + 1070 Grade Aluminum Pipe for Flexibility
Both of the two ends are copper pipe, length is 15cm. The rest is Pure Aluminum Pipe, 1000series 1070 grade aluminum. Soft aluminum pipe easy to be bend to be flexible.
Full PVC Insulation Protection for Moisture Resistance
PVC platic pipe is coverd whole aluminum pipe, to protect the aluminum pipe not to be wet, keep the good qualiy.
100 ft Long Line Design for Flexible Installation
For the AC Installation kit, most popular size is 3m 4m and 5m. Europe want 6m 7m 8m 10m.
Standard Size for Small HVAC Systems
For the insulation we have SGS test report including ASTM E 84, UL 94, ASTM D1056, ASTM G 21, and copper pipe meets ASTM B280 AND C12200.
Features of pipe insulation tubing

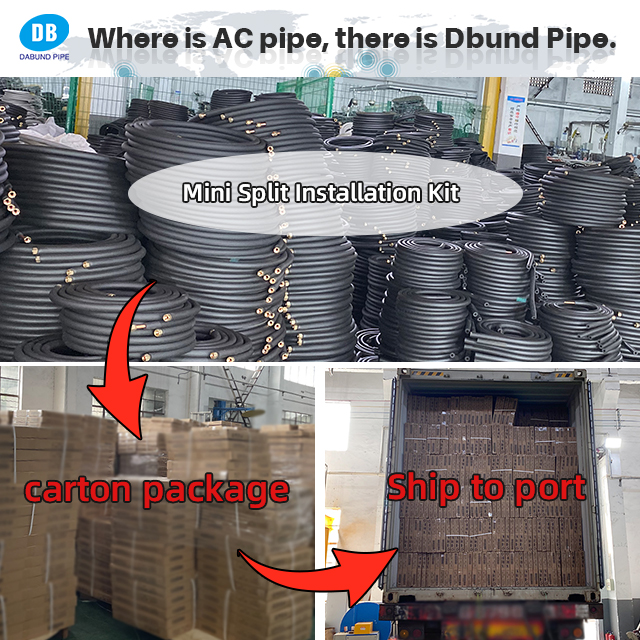

Professional manufacturer of Mini Split Installation Kit, 2 factories, 1,000,000PCS per month, 5days for sample and 14years' experience.
Insulation pipe has white embossed insulation pipe and black rubber pipe

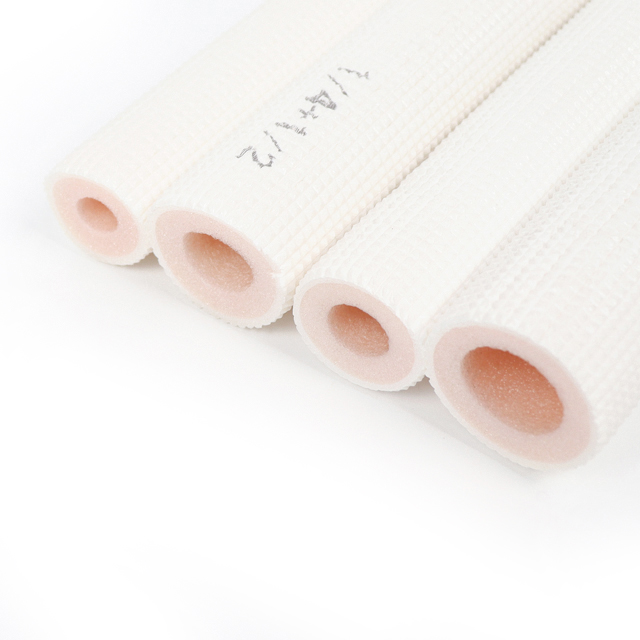

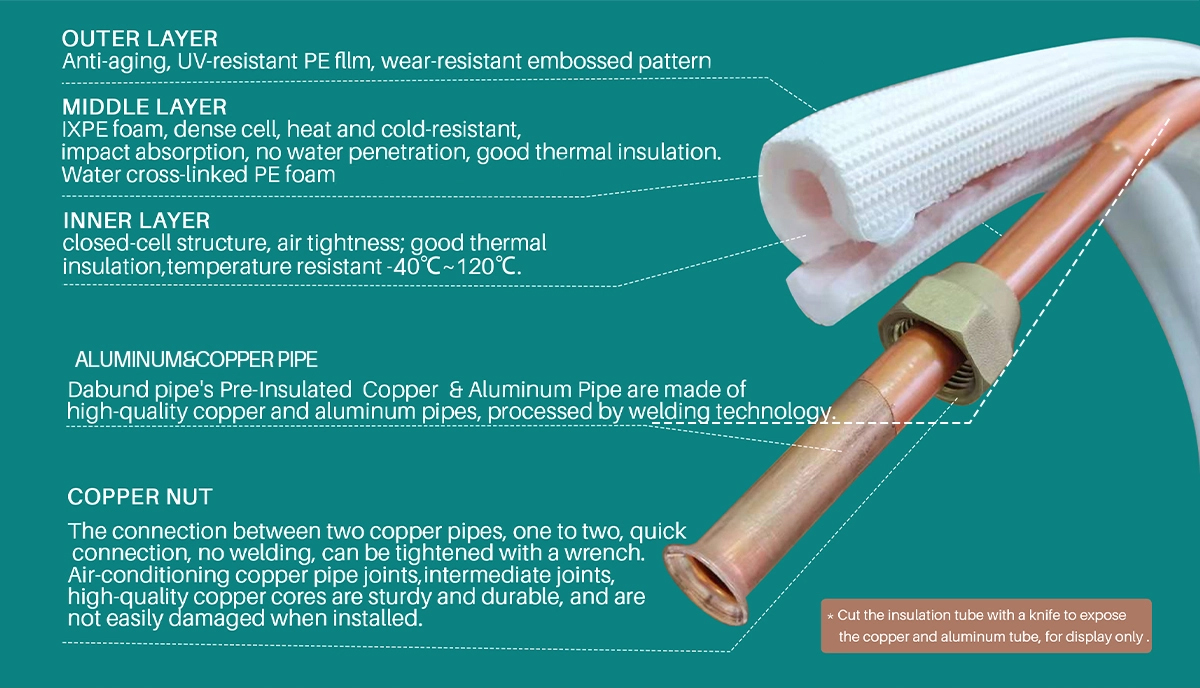

Features of white embossed insulation pipe
OUTER LAYER-Anti-aging, UV-resistant PE fllm, wear-resistant embossed pattern, antl-aging.
MIDDLE LAYER-IXPE foam, dense cell, heat and cold-resistant, impact absorption, no water penetration, good thermal insulation. Water cross-linked PE foam.
INNER LAYER-Closed-cell structure, air tightness; good thermal insulation, temperature resistant -40℃~120℃.

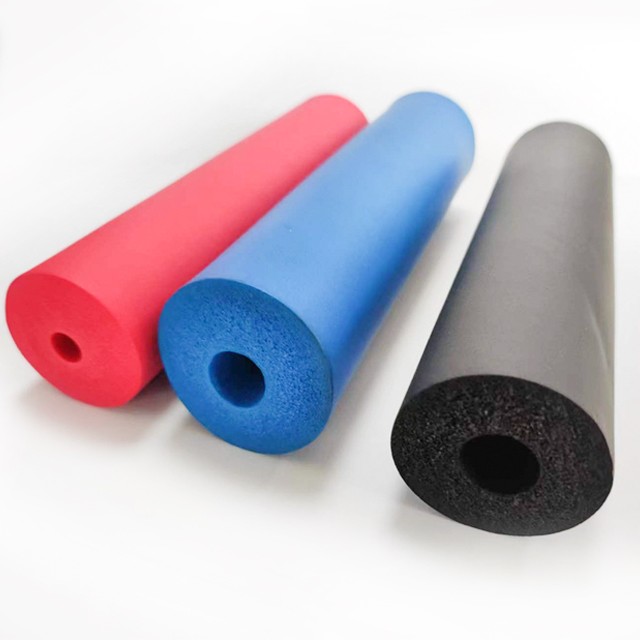

Features of rubber insulation pipe
Pipe Insulation, Material Polyethylene, Pre-Slit, Temp. Range -160 Degrees to 200 Degrees .
The pipe insulation has a better function of moisture condensation. Insulation material is both the insulation layer and moisture-proof layer.
There is no need to drop the water vapor permeation protective layer so that it has a better moisture condensation function.
The pipe insulation tubing is made of rubber and plastic which holds very tight and you do not feel tired when oprate it.
Insulated Aluminum Copper Pipe for HVACR Applications Wholesaler & Supplier
Data of AC Copper Aluminum Pipe
| Size | Length | Insulation Black Rubber | Flame Resistant |
| 1/4+3/8 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 1/4+1/2 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 1/4+5/8 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 3/8+5/8 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 3/8+3/4 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 1/2+3/4 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 3/8+7/8 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| Size | Used for | Size | Used for |
| 1/4 + 3/8 Aluminum copper pipe kit | 0.75TON - 1.0TON mini split air conditioner | 1/4 + 3/8 Mini split line set | 9000BTU and 12000 BTU split air conditioner |
| 1/4 + 1/2 Insulated aluminum&copper line set | 1.5TON - 2.0TON mini split air conditioning | Copper&aluminum line set 1/4 + 1/2 | 12000 BTU and 18000 BTU mini split air conditioners |
| 1/4 + 5/8 Insulated aluminum&copper piping | 2.0TON - 2.5TON split air conditioner system | 1/4 + 5/8 Insulated copper&aluminum line set | 24000 BTU and 30000 BTU air conditioner system |
| 3/8 + 5/8 Insulated aluminum&copper tube | 3.0TON - 4.0TON ductless mini split air conditioner | 3/8 + 5/8 Mini-split line set | 36000 BTU and 48000 ductless air conditioner |
| 3/8 + 3/4 Insulated aluminum&copper tubing | 4.5TON - 6.0TON split air conditioner installation | 3/8 + 3/4 Aluminum copper pipe kit | 54000 BTU and 72000 split air conditioner installation |
| 3/8 + 7/8 Insulated aluminum&copper piping | 6.0TON - 8.0TON ductless mini split air conditioner | 3/8 + 7/8 Mini split air conditioner kit | 72000 BTU - 96000 BTU ductless mini split air conditioner |
| Air conditioning aluminum&copper line sets 1/4 + 3/8 | 0.75P and 1P split air conditioning | Aircon copper line set 1/4 + 3/8 | 9K and 12K split air conditioner |
| Copper&aluminum pipe kit 1/4 + 1/2 | 1.5P and 2P mini split air conditioners | High quality copper&aluminum line set 1/4 + 1/2 | 12K and 18K mini split air conditioners |
| 1/4 + 5/8 Mini Split Air Conditioner Kit | 2P and 2.5air conditioner system | 1/4 + 5/8 Insulated copper&aluminum line set | 24K and 30K air conditioner system |
| 3/8 + 5/8 Mini-split copper&aluminum line set | 3P and 4P ductless mini split air conditioner | 3/8 + 5/8 Aluminum&copper pipe kit | 36K and 48K ductless air conditioner |
| 3/8 + 3/4 Copper&aluminum pipe kit | 4.5P and 6P split aircon installation | 3/8 + 3/4 Mini split air conditioner kit | 72K split air conditioner installation |
| 3/8 + 7/8 Aluminum&copper pipe kit | 6P - 8p TON ductless mini split air conditioner | 3/8 + 7/8 Mini split air conditioner kit | 72K - 96K ductless mini split air conditioner |
Why Choose Insulated Aluminum & Copper Pipe Kit from DABUND PIPE
15+ Years HVAC Manufacturing Experience
Produced by a specialized manufacturer with extensive experience in HVAC copper piping and insulation systems since 2008.
In-House Insulation Production
Ensures:
Consistent insulation quality
Faster production cycles
Custom branding capability
OEM & Custom Branding Available
Customize:
Logo printing
Pipe markings
Packaging
Perfect for distributors and wholesalers.
Strong Global Supply Capability
Weekly container shipments
Stable export logistics
Scalable production capacity

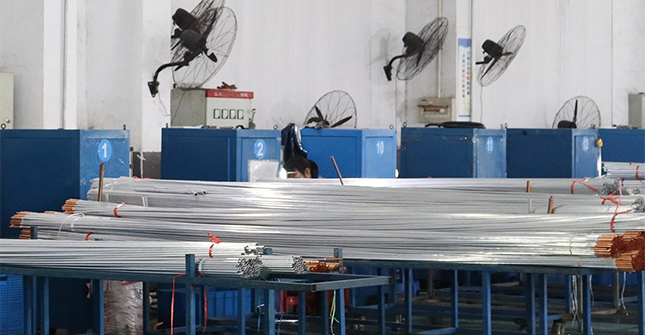

DABUND FACTORY
SGS Certificate
Exhibition
AC Copper Aluminum Pipe FAQ
What is your payment terms?
TT,L/C AT SIGHT,CREDIT CARD etc.
What is your delivery terms?
Are you trading company or manufacturer?
May I get a sample?
Can I print my logo?
How long is your delivery time?
