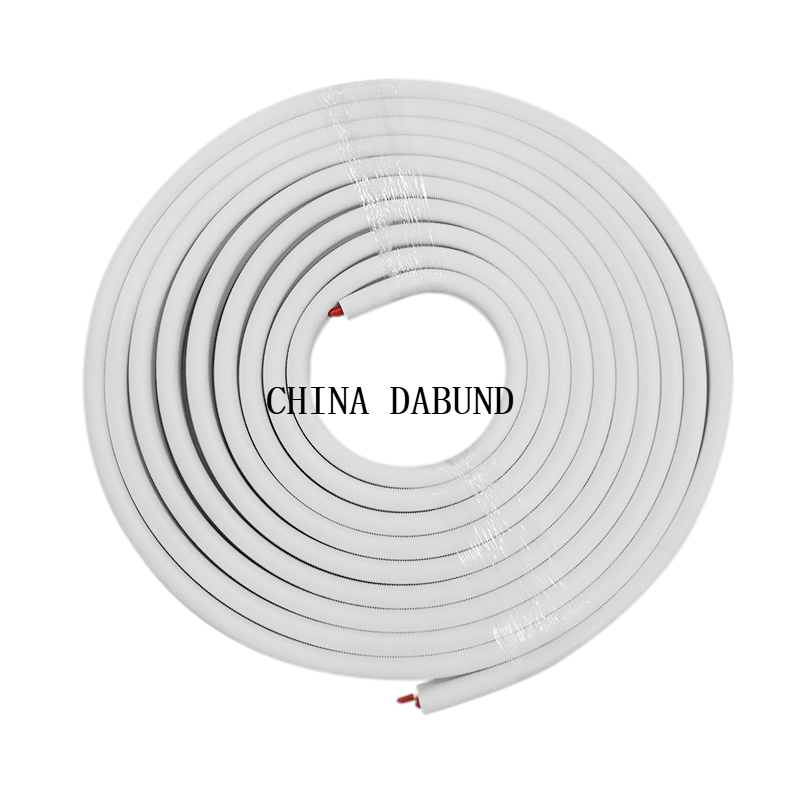

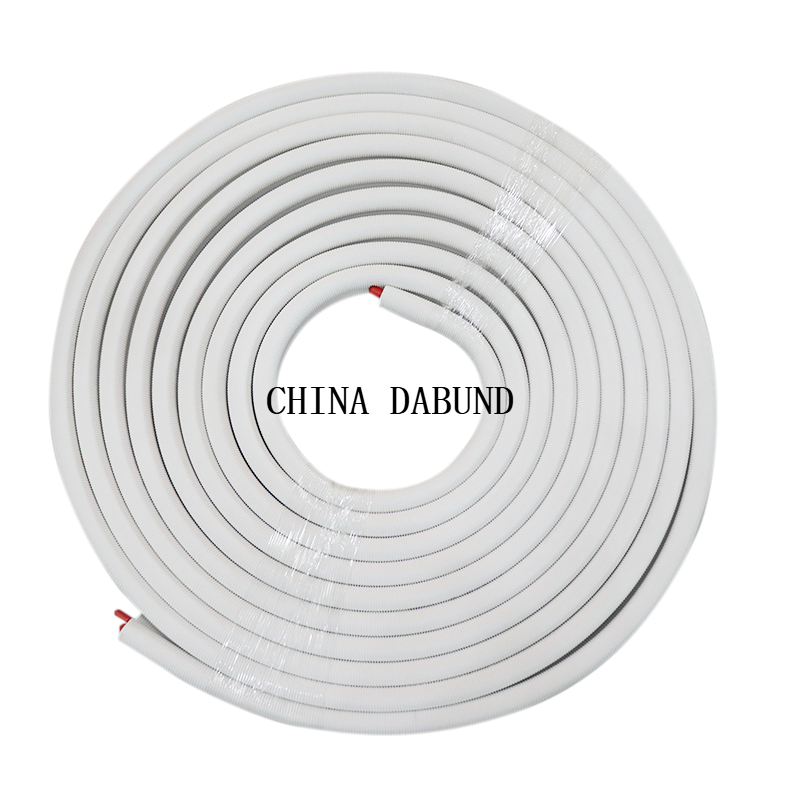

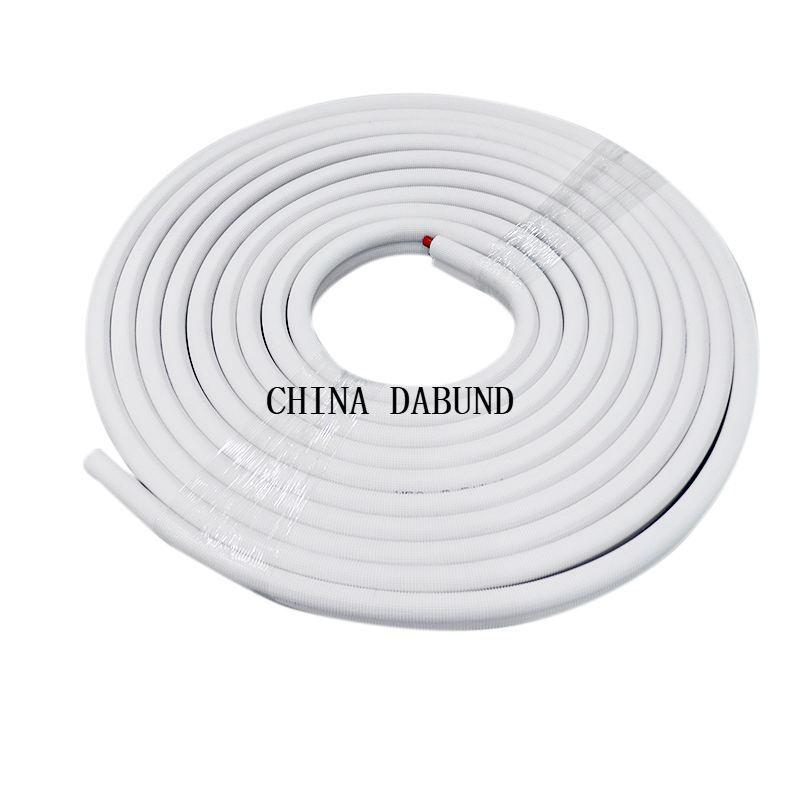

15 ft 3/8" x 3/4" Aluminum Copper Kit

1.Aluminum copper pipe including one set air conditioner insulated copper pipe, size 3/8"+3/4" 15 ft, and other accessories, like communication wire cable, drain hose 3m, wall pipe and cover and the other necessary parts.
2.Both of the two ends are copper pipe, length is 15cm. The rest is Pure Aluminum Pipe, 1000series 1070 grade aluminum. Soft aluminum pipe easy to be bend to be flexible.
3. PVC platic pipe is coverd whole aluminum pipe, to protect the aluminum pipe not to be wet, keep the good qualiy.
4. For the AC Installation kit, most popular size is 3m 4m and 5m. Europe want 6m 7m 8m 10m.
5. For the insulation we have SGS test report including ASTM E 84, UL 94, ASTM D1056, ASTM G 21, and copper pipe meets ASTM B280 AND C12200.
6.Professional manufacturer of Mini Split Installation Kit, 2 factories, 1,000,000PCS per month, 5days for sample and 14years' experience.
  • DBJ-003

  • DABUND

  • Copper

  • 1M - 10M

Material:
Color:
Keywords:
Application:
Availability:
Quantity:

HVAC Parts are produced by Dabund Pipe since 2008 years.

In the Heating, including 15 ft 3/8" x 3/4" with 1/2" insulation pipe, wall pipe with cover and drain hose, wire cable. Get free sample on qualified Mini split air conditioner kit Venting & Cooling System.


Key Features of 15 ft 3/8" x 3/4" Aluminum Copper Pipe Kit

1.Aluminum copper pipe Kit including one set air conditioner insulated copper pipe, size 3/8"+3/4" 15 ft, and other accessories, like communication wire cable, drain hose 3m, wall pipe and cover and the other necessary parts.

2.Both of the two ends are copper pipe, length is 15cm. The rest is Pure Aluminum Pipe, 1000series 1070 grade aluminum. Soft aluminum pipe easy to be bend to be flexible.

3. PVC platic pipe is coverd whole aluminum pipe, to protect the aluminum pipe not to be wet, keep the good qualiy.

4. For the AC Installation kit, most popular size is 3m 4m and 5m. Europe want 6m 7m 8m 10m.

5. For the insulation we have SGS test report including ASTM E 84, UL 94, ASTM D1056, ASTM G 21, and copper pipe meets ASTM B280 AND C12200.

6.Professional manufacturer of Mini Split Installation Kit, 2 factories, 1,000,000PCS per month, 5days for sample and 14years' experience.


Aluminum Tube: 99% pure Aluminum

Copper Tube: ASTM B280 & C12200 DHP

Insulation: High density closed cells polyethylene foam

Working Temperature: meets/exceeds ASTM C 1427-07

Surface burning characteristics: UL 94, top-rated for Surface Burning Characteristics – UL 723 Flame and Spread Index less than 25 and Smoke Development Index less than 50

Meets ASTM E84 for smoke and fire (25/50)

Superior tear resistance, UV resistant



AC aluminum pipe5

Aluminum pipe

AC aluminum pipe8

Aluminum Copper pipe welding

AC aluminum pipe7

Aluminim Copper pipe


Insulation pipe has white embossed insulation pipe and black rubber pipe

white PE insulation pipe

White PE embossed insulated pipe

black rubber insulation pipe

Rubber insulated pipe


Features of white embossed insulation pipe:

OUTER LAYER-Anti-aging, UV-resistant PE fllm, wear-resistant embossed pattern, antl-aging.

MIDDLE LAYER-IXPE foam, dense cell, heat and cold-resistant, impact absorption, no water penetration, good thermal insulation. Water cross-linked PE foam.

INNER LAYER-Closed-cell structure, air tightness; good thermal insulation, temperature resistant -40℃~120℃.


Features of rubber insulation pipe:

Pipe Insulation, Material Polyethylene, Pre-Slit, Temp. Range -160 Degrees to 200 Degrees .

The pipe insulation has a better function of moisture condensation. Insulation material is both the insulation layer and moisture-proof layer.

There is no need to drop the water vapor permeation protective layer so that it has a better moisture condensation function.

The pipe insulation tubing is made of rubber and plastic which holds very tight and you do not feel tired when oprate it.


Whiet PE insulated copper and aluminum pipe


black rubber copper Aluminum pipe


15 ft 3/8" x 3/4" Aluminum Copper Pipe for HVACR Applications Wholesaler & Supplier

DABUND PIPE in-house tested Aluminum Copper Pipe is designed to make installation sample and quick – saving you time and money on each job.




Aluminum Copper Pipe

Size

Length

Insulation Black Rubber

Flame Resistant

1/4+3/8
3m/4m/5m/7m/10m
8mm/9mm/10mm/13mm/19mm/25.4mm
M1/B1
1/4+1/2
3m/4m/5m/7m/10m
8mm/9mm/10mm/13mm/19mm/25.4mm
M1/B1
1/4+5/8
3m/4m/5m/7m/10m
8mm/9mm/10mm/13mm/19mm/25.4mm
M1/B1
3/8+5/8
3m/4m/5m/7m/10m
8mm/9mm/10mm/13mm/19mm/25.4mm
M1/B1
3/8+3/4
3m/4m/5m/7m/10m
8mm/9mm/10mm/13mm/19mm/25.4mm
M1/B1
1/2+3/4
3m/4m/5m/7m/10m
8mm/9mm/10mm/13mm/19mm/25.4mm
M1/B1
3/8+7/8
3m/4m/5m/7m/10m
8mm/9mm/10mm/13mm/19mm/25.4mm
M1/B1


1/4 + 3/8 Aluminum copper pipe kit used for 0.75TON - 1.0TON mini split air conditioner.

1/4 + 1/2 Insulated aluminum&copper line set used for 1.5TON - 2.0TON mini split air conditioning.

1/4 + 5/8 Insulated aluminum&copper piping used for 2.0TON - 2.5TON split air conditioner system.

3/8 + 5/8 Insulated aluminum&copper tube apply for 3.0TON - 4.0TON ductless mini split air conditioner.

3/8 + 3/4 Insulated aluminum&copper tubing used for 4.5TON - 6.0TON split air conditioner installation.

3/8 + 7/8 Insulated aluminum&copper piping apply for 6.0TON - 8.0TON ductless mini split air conditioner.


Air conditioning aluminum&copper line sets 1/4 + 3/8 used for 0.75P and 1P split air conditioning.

Copper&aluminum pipe kit 1/4 + 1/2 commonly used for 1.5P and 2P mini split air conditioners.

1/4 + 5/8 Mini Split Air Conditioner Kit used for 2P and 2.5air conditioner system.

3/8 + 5/8 Mini-split copper&aluminum line set apply for 3P and 4P ductless mini split air conditioner.

3/8 + 3/4 Copper&aluminum pipe kit used for 4.5P and 6P split aircon installation.

3/8 + 7/8 Aluminum&copper pipe kit apply for 6P - 8p TON ductless mini split air conditioner.


1/4 + 3/8 Mini split line set used for 9000BTU and 12000 BTU split air conditioner.

Copper&aluminum line set 1/4 + 1/2 commonly used for 12000 BTU and 18000 BTU mini split air conditioners.

1/4 + 5/8 Insulated copper&aluminum line set used for 24000 BTU and 30000 BTU air conditioner system.

3/8 + 5/8 Mini-split line set apply for 36000 BTU and 48000 ductless air conditioner.

3/8 + 3/4 Aluminum copper pipe kit used for 54000 BTU and 72000 split air conditioner installation.

3/8 + 7/8 Mini split air conditioner kit apply for 72000 BTU - 96000 BTU ductless mini split air conditioner.


Aircon copper line set 1/4 + 3/8 used for 9K and 12K split air conditioner.

High quality copper&aluminum line set 1/4 + 1/2 commonly used for 12K and 18K mini split air conditioners.

1/4 + 5/8 Insulated copper&aluminum line set used for 24K and 30K air conditioner system.

3/8 + 5/8 Aluminum&copper pipe kit apply for 36K and 48K ductless air conditioner.

3/8 + 3/4 Mini split air conditioner kit used for 54K and 72K split air conditioner installation.

3/8 + 7/8 Mini split air conditioner kit apply for 72K - 96K ductless mini split air conditioner.



Why Choose 15 ft 3/8" x 3/4" Aluminum&Copper Pipe Kit from DABUND PIPE

We are manufacturer of mini split installation kit since 2008 years, have good experience of producing and exporting. We have cooperated 9 years forwarder, can guarantee the shipment. Every week we load at least 6-8 40HQ to different countries. Choose Dabund You will win the business.

Individual pre-insulated rolls to perfectly fit every ductless mini-splits, VRF, heat pumps and unitary systems installation.


Quality products with competitive pricing

Peace of mind with professional services




DABUND FACTORY


We produce Insulated Copper Pipe, Mini Split Line Set and Aluminum Pipe and HVAC Parts


DABUND PIPE COPPER AND ALUMINUM PIPE



SGS Certificate


Mini Split Line Set is made of Polypropylene or Black Rubber with UV Resistant, meets ASTM E 84, UL94, ASTM D1056 and ASTM G 21


证书



Exhibition


We join the exhibitions all over the word, just to facilitate customers to experience our mini split line set face to face.


Exhibition


FAQ

Q1: What is an HVAC Line Set and what is its function?

An HVAC line set is a pair of copper tubes connecting the outdoor unit (condenser/heat pump) to the indoor unit (air handler). Its function is to circulate refrigerant to transfer heat. It consists of:

• Suction Line (Large): Insulated, carries cool, low-pressure gas back to the compressor.

• Liquid Line (Small): Less insulated, carries warm, high-pressure liquid to the indoor unit.

Q2: What are the different types of HVAC Line Sets?

Main types are defined by material and build:

• ACR Copper: Industry standard, factory-sealed with nitrogen to prevent contamination.

• Soft vs. Hard Drawn Copper: Soft copper is bendable for easy installation; hard drawn is for straight runs.

• Pre-insulated Line Sets: Most common for homes, with foam insulation (e.g., Armaflex) pre-installed on the suction line.

Q3: How do I choose the correct line set size?

Size is critical and is based on your system’s tonnage (capacity) and the distance between units.

Common Residential Sizes:

• 1.5-2 Ton: 3/8" liquid line, 3/4" suction line.
• 3-4 Ton: 1/2" liquid line, 7/8" suction line.
• 5 Ton: 5/8" liquid line, 1-1/8" suction line.

Always consult a licensed technician or the manufacturer's manual. Incorrect sizing reduces efficiency and can cause damage.

Q4: Can I reuse an existing line set?

Generally not recommended. Reasons include:

• Contamination: Old lines may contain debris or moisture that harms the new compressor.

• Compatibility: Newer systems (R-410A/R-32) run at higher pressures than older ones (R-22).

• Leak Risk: Existing joints and tubing may be fatigued.

Best practice is to install a new line set to ensure performance and protect your warranty.

Q5: What is the purpose of the insulation on the suction line?

The insulation serves two key purposes:

1. Prevents Energy Loss: Keeps the cold refrigerant from absorbing outside heat, maintaining efficiency.
2. Stops Condensation: Keeps the pipe surface above the dew point to prevent water drip, which can cause mold or damage.

Q6: Should I search for "HVAC supply store near me" or "HVAC installation service"?

Always search for a licensed "HVAC installation service" or "HVAC contractor."

• Why a Contractor? Installation requires specialized skills (brazing, pressure testing, evacuation) and is not DIY.
• Supply Store Role: They mainly sell to professionals. Your contractor will source the correct line set for the job.

Q7: What are the consequences of a leaking line set?

A refrigerant leak is a serious problem, causing:

• Reduced cooling/heating capacity.
• Higher energy bills.
• Compressor failure due to overheating and lack of lubrication.
• Environmental harm from released greenhouse gases.

If you suspect a leak (e.g., ice on coils, hissing sounds), contact an HVAC professional immediately for repair.
