HVAC Parts are produced by Dabund Pipe since 2008 years.
30 ft 1/4" x 3/8" HVAC Installation Kit with Copper Line Set - copper tube pipe meets ASTM B280 and C12200 - White PE and Black Rubber Insulation 3/8" 1/2" 3/4" 1" - length 15 ft 25 ft 35 ft 50 ft - Dabund Pipe Manufacturer.
The AC Installation Kit is twin already. So buy it now.
Key Features of 30 ft 1/4" x 3/8" HVAC Installation Kit

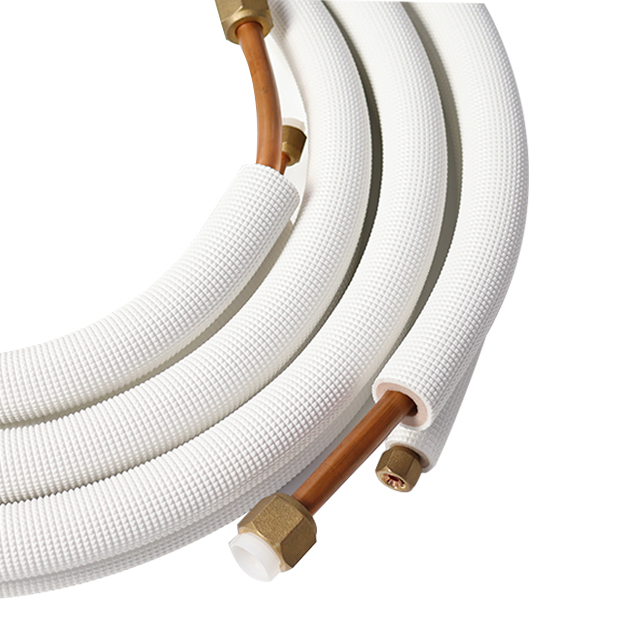

1.Mini Split Installation Kit including one set air conditioner insulated copper pipe, size 1/4"+3/8" 30 ft, and other accessories, like communication wire cable, drain hose 3m, wall pipe and cover and the other necessary parts.
2. Both of the two copper pipe end do flaring and nuts.
3. The insulation we can offer White PE and Black Rubber. White PE thickness is 3/8" 1/2" 3/4" 1" or 8mm 9mm 10mm 13mm 19mm 25.4mm. Black Rubber thickness is 1/2" 3/4" 1" or 13mm 17mm 19mm 25.4mm.
4. For the AC Installation kit, most popular size is 3m 4m and 5m. Europe want 6m 7m 8m 10m.
5. For the insulation we have SGS test report including ASTM E 84, UL 94, ASTM D1056, ASTM G 21, and copper pipe meets ASTM B280 AND C12200.
6.Professional manufacturer of Mini Split Installation Kit, 2 factories, 1,000,000PCS per month, 5days for sample and 14years' experience.
Copper Tube: ASTM B280 & C12200 DHP
Insulation: High density closed cells polyethylene foam
Working Temperature: meets/exceeds ASTM C 1427-07
Surface burning characteristics: UL 94, top-rated for Surface Burning Characteristics – UL 723 Flame and Spread Index less than 25 and Smoke Development Index less than 50
Meets ASTM E84 for smoke and fire (25/50)
Superior tear resistance, UV resistant
Features of pipe insulation tubing:
With embossed polyethyene film, climate resistant foam, and thickened insulated cotton, this three-layer insulated mini split copper line set is corrosion-resistant, fireproofing, flame-retarded, thermal insulation, waterproof, shockproof, sound absorption and durable.
Outer Layer: Anti-aging, UV-resistant PE fllm, wear-resistant embossed pattern, antl-aging.
Middle Layer: IXPE foam, dense cell, heat and cold-resistant, impact absorption, no water penetration, good thermal insulation. Water cross-linked PE foam.
Inner Layer: Closed-cell structure, air tightness; good thermal insulation, temperature resistant -40℃~120℃.
30 ft 1/4" x 3/8" HVAC Installation Kit for HVACR Applications Wholesaler & Supplier
DABUND PIPE in-house tested HVAC Installation Kit is designed to make installation simple and quick – saving you time and money on each job.
HVAC Installation Kit
Size | Length | Insulation White PE | Flame Resistant |
1/4+3/8 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
1/4+1/2 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
1/4+5/8 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
3/8+5/8 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
3/8+3/4 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
1/2+3/4 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
3/8+7/8 | 3m/4m/5m/7m/10m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
1/4 + 3/8 HVAC Installation Kit used for 0.75TON - 1.0TON mini split air conditioner.
1/4 + 1/2 Mini Split Line Set used for 1.5TON - 2.0TON mini split air conditioning.
1/4 + 5/8 Copper Line Set used for 2.0TON - 2.5TON split air conditioner system.
3/8 + 5/8 Insulated Copper Tube apply for 3.0TON - 4.0TON ductless mini split air conditioner.
3/8 + 3/4 Insulated Copper Tubing used for 4.5TON - 6.0TON split air conditioner installation.
3/8 + 7/8 Insulated Copper Piping apply for 6.0TON - 8.0TON ductless mini split air conditioner.
Air conditioning copper line sets 1/4 + 3/8 used for 0.75P and 1P split air conditioning.
Copper pipe kit 1/4 + 1/2 commonly used for 1.5P and 2P mini split air conditioners.
1/4 + 5/8 Mini Split Installation Kit used for 2P and 2.5air conditioner system.
3/8 + 5/8 Mini-split copper line set apply for 3P and 4P ductless mini split air conditioner.
3/8 + 3/4 HVAC Installation Kit used for 4.5P and 6P split aircon installation.
3/8 + 7/8 AC Installation Kit apply for 6P - 8p TON ductless mini split air conditioner.
1/4 + 3/8 Mini split line set used for 9000BTU and 12000 BTU split air conditioner.
All copper line set 1/4 + 1/2 commonly used for 12000 BTU and 18000 BTU mini split air conditioners.
1/4 + 5/8 AC Installation Kit used for 24000 BTU and 30000 BTU air conditioner system.
3/8 + 5/8 Mini-split line set apply for 36000 BTU and 48000 ductless air conditioner.
3/8 + 3/4 HVAC Installation Kit used for 54000 BTU and 72000 split air conditioner installation.
3/8 + 7/8 Mini Split Installation Kit apply for 72000 BTU - 96000 BTU ductless mini split air conditioner.
HVAC Installation Kit 1/4 + 3/8 used for 9K and 12K split air conditioner.
Mini Split Installation Kit 1/4 + 1/2 commonly used for 12K and 18K mini split air conditioners.
1/4 + 5/8 AC Installation Kit used for 24K and 30K air conditioner system.
3/8 + 5/8 Mini-split line set apply for 36K and 48K ductless air conditioner.
3/8 + 3/4 Line set kit used for 54K and 72K split air conditioner installation.
3/8 + 7/8 Insulated Copper Piping apply for 72K - 96K ductless mini split air conditioner.
Why Choose 30 ft 1/4" x 3/8" HVAC Installation Kit from DABUND PIPE
We are manufacturer of HVAC Installation Kit since 2008 years, have good experience of producing and exporting. We have cooperated 9 years forwarder, can guarantee the shipment. Every week we load at least 6-8 40HQ to different countries. Choose Dabund You will win the business.
Individual pre-insulated rolls to perfectly fit every ductless mini-splits, VRF, heat pumps and unitary systems installation.
Quality products with competitive pricing
Peace of mind with professional services
DABUND FACTORY
We produce Insulated Copper Pipe, Mini Split Line Set and Aluminum Pipe and HVAC Parts
SGS Certificate
Mini Split Line Set is made of Polypropylene or Black Rubber with UV Resistant, meets ASTM E 84, UL94, ASTM D1056 and ASTM G 21
