Pre-Flared Copper Line Set Vs Field-Flared Copper Tubing: Pros, Cons, And Leak Prevention

Refrigerant leaks often start small, then cost big.

Most buyers focus on the unit, but the flare joint does the heavy lifting.

When it fails, the system can develop slow leaks you only notice later.

That’s why choosing the right COPPER LINE SET matters for reliability.

A few high-stress connections can decide whether your job runs smoothly for years.

In many service calls, flare problems trace back to poor sealing at the metal-to-metal interface.

In this post, you’ll learn what a COPPER LINE SET is.

You’ll also see how pre-flared vs field-flared changes the seal and leak risk.

Plus, you’ll get a practical leak-prevention checklist for both options.



Pre-Flared vs Field-Flared: What Changes at the Seal

When a system leaks, people often blame the refrigerant, a valve, or “bad luck.”

But in real projects, the moment that matters most is the flare joint. They’re small, high-stress connections that can’t hide poor fit. That’s why choosing a COPPER LINE SET setup changes more than convenience.Here’s the simple contrast. A pre-flared COPPER LINE SET brings precision from the factory. A field-flared job asks installers to create the sealing surfaces on-site. Both can work, but they shift risk to different places.

Pre-Flared COPPER LINE SET (Factory Standardization)

A pre-flared COPPER LINE SET is built like a repeatable system, not a one-off craft project.

Factory automated flaring forms the sealing geometry, and it usually uses a common 45° flare geometry. That means the sealing face is more consistent across units.You typically get:

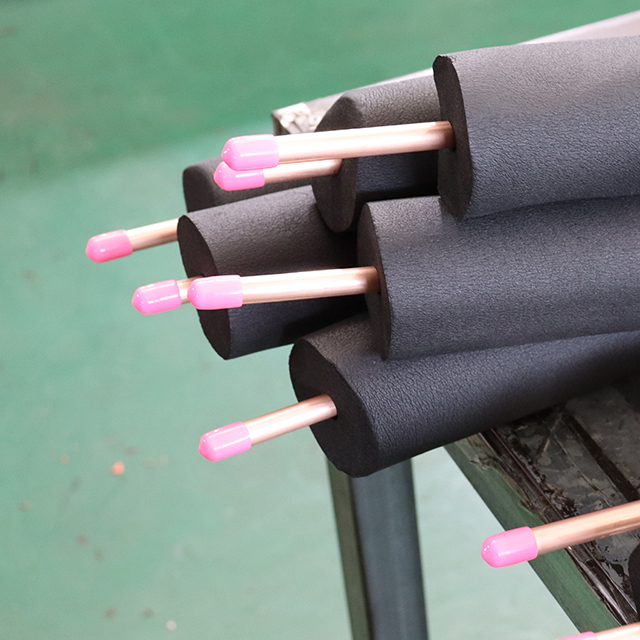

● Protective end caps during transit and storage

● Matched flare nuts for the paired connection

● Insulation already assembled to the line set

This packaging-level detail matters more than many buyers expect. If sealing faces get dust, moisture, or tiny scratches, the metal-to-metal contact never becomes truly “perfect.” Factory assembly reduces how often those problems start in the first place. It’s also easier for contractors to train teams around one consistent connection style.

Here’s what that standardization usually improves in day-to-day purchasing and installation:

In practice, that often translates into fewer “mystery callbacks.” Installers don’t have to fight process differences every time they touch tubing ends.

Field-Flared Copper Tubing (Jobsite Creation)

Field-flared copper tubing is basically raw material plus responsibility.

It’s supplied as bare unflared copper coils or tubes, and installers must cut, deburr, flare, and inspect the sealing surfaces on-site.That means the quality of the connection depends on:

● Sharp tools and clean cuts

● Deburring that actually removes burrs

● Flare tools that can form smooth, correct geometry

● Careful inspection before final tightening

Even when a technician is skilled, jobsite conditions add friction. Crowded piping runs, rushed schedules, and different crew setups can all push execution closer to the edge. One uneven flare face or a tiny ridge left behind can become a slow leak later, especially when the system cycles through temperature changes and vibration.

So the “flexibility” field-flared offers comes with a trade-off. They can get the exact length, but they also create more steps where the sealing surface can be damaged or imperfectly formed.

The Key Difference (Where the Risk Lives)

If you boil it down to one line, it’s this: pre-flared moves critical flare precision from the jobsite to the factory, while field-flared puts it on installer skill + tools + environment.

So the decision isn’t only about what’s cheapest per foot. It’s about where the tolerance stack is managed and how consistently it stays within spec across every install.For reliability-minded buyers, that’s why COPPER LINE SET options that are ready-to-connect tend to look attractive. They reduce variables at the exact connection that’s most likely to fail when something goes wrong.

Why Refrigerant Leaks Happen at the Flare Joint

Most refrigerant leaks don’t start as “big failures.” They start as tiny seal problems at one place: the flare joint.

That’s why the COPPER LINE SET connection feels so critical in the field. It’s a small area, but it takes heat, pressure, and vibration every day.A flare joint failure usually follows a simple chain: a small defect forms, it stays hidden for a while, then it turns into a slow leak.

By the time people notice, they’re dealing with callbacks, refrigerant top-ups, and comfort complaints.

The Flare Joint Failure Chain (Small Defect → Slow Leak)

Think of the joint like a metal-to-metal handshake.

If the “handshake” is uneven, it may seal today. But it won’t seal perfectly forever.Here’s how the chain often unfolds:

● A mechanical sealing issue appears during flaring or tightening

● The system holds for weeks or months because pressure cycles stay “close enough”

● Tiny paths form under thermal expansion, vibration, or repeated compressor cycles

● Refrigerant escapes slowly and performance drifts

● Callbacks show up later, when the leak becomes obvious enough to detect

Mechanical Sealing Issues That Create Leaks

Leaks usually come from the flare faces and what happens to them before assembly.

Installers may not see the problem in the first minutes, because the joint can look “tight” and still fail later.Common mechanical issues include:

● Uneven flare angle

○ Even a small angle mismatch can reduce the contact area on the sealing face.

○ That means less compression, and more chance for escape routes to form over time.

● Offset flare face (misalignment)

○ If the faces aren’t aligned, tightening won’t fully correct the geometry.

○ It leaves corners that don’t compress, even when the nut feels secure.

● Burrs and metal shavings trapped on sealing surfaces

○ These particles act like tiny spacers.

○ They can prevent full metal-to-metal contact, then get worked loose by vibration.

● Scratches or dents on the sealing face from handling

○ Rough handling can damage the sealing surface before connection.

○ Those marks can become permanent leak paths after the first pressure cycle.

● Micro-cracks caused by excessive force or over-torquing

○ Too much tightening can stress the copper flare and create micro-cracks.

○ Cracks may not leak right away, but they often widen as the system cycles.

● Poor compression caused by insufficient torque

○ Under-tightening can leave the joint incompletely compressed.

○ Then pressure and thermal cycling gradually worsen the seal.

To make this more practical, here’s a quick “symptom by cause” map that teams often use during troubleshooting:

Why “Micro-Leaks” Are Common and Costly

Micro-leaks are tricky because they don’t behave like a dramatic rupture.

They can be small enough that airflow, temperatures, and noise still look “normal” early on.In many real jobs, this is what drives cost:

● Small leaks may not be immediately obvious

○ People notice comfort issues later, not at the first day.

○ Oil residue or pressure changes often show up only after repeated cycles.

● Refrigerant loss worsens efficiency

○ Less refrigerant means reduced system performance and higher operating strain.

○ Then the compressor runs more often, which can accelerate wear.

● It triggers callbacks later

○ By the time service arrives, the system may need refrigerant recovery, re-evacuation, and rework.

○ That’s not just labor, it’s downtime, scheduling pressure, and customer frustration.

Environmental and Lifecycle Factors That Expose Marginal Flares

Even when the flare joint isn’t perfectly made, it can “survive” initial installation.

Then real-world forces start testing the weak points.These factors often expose borderline flares:

● Thermal expansion and contraction

○ Copper and insulation move differently as temperatures change.

○ That movement can open tiny gaps at imperfect sealing faces.

● Compressor vibration over time

○ Vibration works on the joint like a repeated stress cycle.

○ Any uneven compression gets amplified until a leak path forms.

● Seasonal temperature shifts

○ Each season changes operating conditions and stresses the connections again.

○ Small defects become easier to notice after repeated seasonal cycling

In practice, teams learn that a “good-looking” flare isn’t enough.

A COPPER LINE SET connection needs the right geometry, clean sealing faces, and correct compression, because the environment will eventually test every weak spot.

Leak Prevention Advantage: Pre-Flared COPPER LINE SET

If you’ve ever watched a team rush the last 10% of an installation, you already know where problems hide.

That “last 10%” often includes the flare work, and flares decide whether refrigerant stays put.

A pre-flared COPPER LINE SET helps because it reduces uncertainty before the job even starts.

What Pre-Flared Fixes vs Field-Flared

Pre-flared units shift key steps from the jobsite to the factory.

That’s not just about speed. It’s about keeping the sealing geometry consistent across thousands of connections.Here’s what pre-flared typically improves compared to field-flared tubing:

Those differences matter because even “tiny” flaws can survive installation tightening.

Then the system cycles, vibrates, and exposes weak contact points later.

Automated Precision + Clean Sealing Faces

Standardized automated flaring is where many buyers feel the confidence immediately.

Factory control helps the flare face form evenly, which lowers the odds of:

● angle mismatch

● offset sealing faces

● surface defects that survive installation tightening

End-face protection during logistics is the other quiet advantage.

Protective caps limit dust and moisture exposure, and they reduce debris contamination.

They also prevent abrasive scratches that can ruin the metal-to-metal sealing surface after tightening.

Fewer Jobsite Steps, Less Setup Risk

When teams use a pre-flared COPPER LINE SET, the installer work shifts to final connection.

Often, they mainly tighten flare nuts to the unit service valves.

That means less cutting, less deburring, and less on-site flaring, so fewer human-error points exist.It also helps training. New installers learn the workflow around one consistent connection style.

That consistency reduces “version differences” across crews and projects.

Better Fit as an Integrated Assembly

Pre-flared line sets are built as a matched system, not separate parts.

Copper forming suitability and insulation fit are designed together, so the assembly behaves as intended.

They’re less likely to experience stress from rework, shifting alignment, or awkward routing during installation.This is where contractors care about real-world handling.

When a product arrives ready-to-connect, teams spend less time forcing parts into place.

Quality Verification Mindset (Traceability Matters)

Factory testing supports a more disciplined verification approach.

Controlled production and checks make it easier to isolate issues if something goes wrong.

Instead of chasing inconsistencies across jobsite tools, they can look back at production and handling history.Brand insert #1 (subtle credibility note): DABUND is an example of a supplier that focuses on factory precision flaring and shipping protection using dedicated end-cap coverage.

That reduces sealing-face damage and contamination risk, which is exactly where flare joint failures usually begin.With pre-flared COPPER LINE SETs, the goal stays simple: keep sealing surfaces clean, keep geometry consistent, and keep the assembly reliable from day one.



FAQ

Q:What is a COPPER LINE SET in HVAC?

A:Twin pre-insulated copper tubes with flare ends, flare nuts, and matching accessories for mini-split/AC connections.

Q:Does a pre-flared COPPER LINE SET reduce refrigerant leaks?

A:Yes. Factory automated flaring standardizes flare geometry and sealing faces, adds end-cap protection, and lowers human error.

Q:What’s the difference between pre-flared and field-flared copper tubing?

A:Pre-flared sets are made and inspected in the factory; field-flared tubes require on-site cutting, deburring, flaring, and inspection.

Q:Why do flare joints fail and cause slow refrigerant leaks?

A:Improper flare angle or misalignment, burrs/shavings, scratches on sealing faces, micro-cracks from over-torque, or poor compression from under-torque.

Q:Can you cut a pre-flared COPPER LINE SET?

A:You can shorten tubing, but cutting the pre-flared end ruins the factory flare and requires re-flaring with proper tools.
