How To Install A Mini Split Line Set Without Kinks, Leaks, Or Poor Insulation

A small installation mistake can turn your mini split system into a costly repair.

A properly installed MINI SPLIT LINE SET ensures smooth refrigerant flow between indoor and outdoor units.

However, kinks, refrigerant leaks, and poor insulation can reduce efficiency and cause long-term problems.

In this guide, you’ll learn how to install a mini split line set correctly, avoid common mistakes, and improve system reliability with proper handling techniques.



Step 1: Plan the Installation Route to Prevent Mini Split Line Set Kinks

Before touching the copper tubing, take time to plan the route. Many MINI SPLIT LINE SET problems start before installation begins. A rushed layout can create unnecessary bends, difficult wall penetrations, and stress points that damage the copper tube.

A good route should balance distance, protection, and installation convenience. The goal is to create a smooth path where the line set can move naturally without sharp turns or excessive pressure.

Measure the Shortest and Safest Line Set Route

Start by measuring the distance between the indoor air handler and the outdoor condenser unit. A shorter route usually means fewer bends, lower installation difficulty, and less chance of damaging the copper tubing.

Before uncoiling the line set, check these key factors:

Avoid routes that require repeated turns around corners or narrow spaces. Every sharp change in direction adds stress to the copper tube and insulation. If possible, design wider curves instead of sudden angles.

Professional installers often plan the full path first, then uncoil the line set. This simple step prevents twisting, pulling, and reshaping the tubing multiple times during installation.

How to Uncoil a Mini Split Line Set Without Damaging the Copper Tube

A factory-packed line set may look flexible, but the copper inside still needs careful handling. The wrong movement can create hidden deformation before the installation is even finished.

When uncoiling a MINI SPLIT LINE SET, follow these practices:

● Unroll slowly and evenly: Let the copper tubing return to its natural shape instead of forcing it straight.

● Avoid twisting the bundle: Rotation can stress the copper lines and damage the insulation layer.

● Do not pull aggressively: Strong pulling may flatten sections or create internal restrictions.

Many installers focus only on visible damage. However, small bends inside the pipe can reduce refrigerant flow and affect system performance later. Slow handling helps maintain the original tube shape and keeps the insulation fully wrapped.

A helpful method is to place the coil on a flat surface and gradually release the tension. If the line set needs to pass through a wall opening, guide it carefully instead of pushing from behind.

How to Bend a Mini Split Line Set Without Kinking

Copper tubing is designed to bend, but it has limits. When a MINI SPLIT LINE SET is bent too sharply, the tube wall can collapse. This creates restrictions that reduce refrigerant circulation and may increase system pressure.

Use proper bending methods to maintain a smooth curve:

● Internal mandrel benders: These tools support the inside of the copper tube and help prevent oval shapes or pipe collapse.

● External spring benders: They distribute pressure around the outside of insulated tubing during manual bending.

● Manual bending technique: Apply steady pressure using both hands and create gradual curves instead of forcing the pipe.

Maintaining the correct bend radius is important. A smooth curve protects the copper structure and helps refrigerant move efficiently through the system.

Avoid these common mistakes during bending:

● Bending the copper line over your knee

● Using sharp objects as bending points

● Forcing the line set through tight wall spaces

● Pulling the tubing until it changes shape

When space is limited, adjust the route instead of forcing the pipe. A carefully planned installation reduces stress on the line set and helps prevent future leaks or performance issues.

Step 2: Install Mini Split Line Set Connections to Prevent Refrigerant Leaks

A secure connection is one of the most important parts of a MINI SPLIT LINE SET installation. Even high-quality copper tubing can fail if the flare connection is prepared incorrectly or tightened with the wrong force.

Most refrigerant leaks happen around connection points. Taking extra time during preparation, tightening, and testing helps prevent expensive repairs and protects long-term system efficiency.

Prepare Copper Tubing and Flare Connections Correctly

Before connecting the line set, make sure the copper ends are clean, smooth, and ready for flaring. Small mistakes during preparation can create weak sealing surfaces.

A proper flare connection depends on four basic steps:

● Cut the copper tubing correctly: Use a sharp tube cutter instead of a saw. It creates a clean edge and prevents metal particles from entering the refrigeration system.

● Remove burrs carefully: After cutting, remove sharp edges from the inside of the tube. Keep the opening facing downward so debris falls away from the pipe.

● Keep the system clean: Dust, copper particles, and moisture inside the tubing can damage the compressor and reduce cooling performance.

● Inspect the flare surface: Check for cracks, uneven edges, or damaged areas before connecting the flare nut.

The flare surface must be smooth and evenly shaped. A poor flare may look acceptable at first, but it can slowly lose refrigerant after the system starts running.

How to Tighten Mini Split Line Set Flare Fittings Properly

Many installation problems come from incorrect tightening. A flare connection needs the right amount of pressure to create a reliable seal.

Too little force leaves small gaps between the flare surfaces. Too much force can damage the copper and create a crack.

Use a calibrated torque wrench whenever possible. It removes guesswork and ensures the flare nut is tightened according to the required specification.

For a reliable MINI SPLIT LINE SET installation, follow these practices:

● Match torque settings to the copper pipe diameter.

● Tighten the flare nut evenly without sudden force.

● Avoid using excessive hand pressure to “make it tighter.”

● Check every connection before starting the system.

DABUND Pipe line sets are designed for easier installation by using precision copper tubing and factory-prepared components. These features help installers achieve more consistent connections during mini split projects.

Pressure Testing and Vacuuming After Mini Split Line Set Installation

Never release refrigerant immediately after connecting the pipes. Testing confirms whether the system is sealed properly before operation.

A professional installation usually includes three important checks:

1. Nitrogen pressure testing

Pressurize the system using dry nitrogen to check connection strength. Holding pressure for a suitable period helps identify slow leaks that may not appear immediately.

2. Leak inspection

Apply soapy water around flare joints and watch for bubbles. This simple method can reveal connection problems before the system starts running.

3. Deep vacuum evacuation

Use a vacuum pump to remove moisture and non-condensable gases inside the line set. Trapped moisture can cause corrosion, ice formation, and compressor damage.

A proper vacuum process helps the refrigerant cycle operate smoothly. It also improves system reliability by reducing hidden problems inside the copper tubing.

When installers combine clean flare preparation, accurate tightening, and complete testing, the MINI SPLIT LINE SET can deliver stable performance for years.

Step 3: Avoid Poor Insulation and Condensation Problems

Insulation is not just an extra layer around a MINI SPLIT LINE SET. It protects the refrigerant pipes, controls temperature loss, and prevents moisture problems during daily operation.

Many installation issues appear after the system has been running for weeks or months. A small insulation gap may look harmless, but it can slowly create condensation, energy waste, and indoor damage.

Why Mini Split Line Set Insulation Is Critical

The suction line carries cold refrigerant, which makes proper insulation essential. When the insulation layer is damaged or incomplete, warm air contacts the cold pipe surface and creates moisture.

Common problems caused by poor insulation include:

A well-insulated line set keeps the refrigerant temperature stable during operation. It also helps the air conditioning system maintain expected cooling performance.

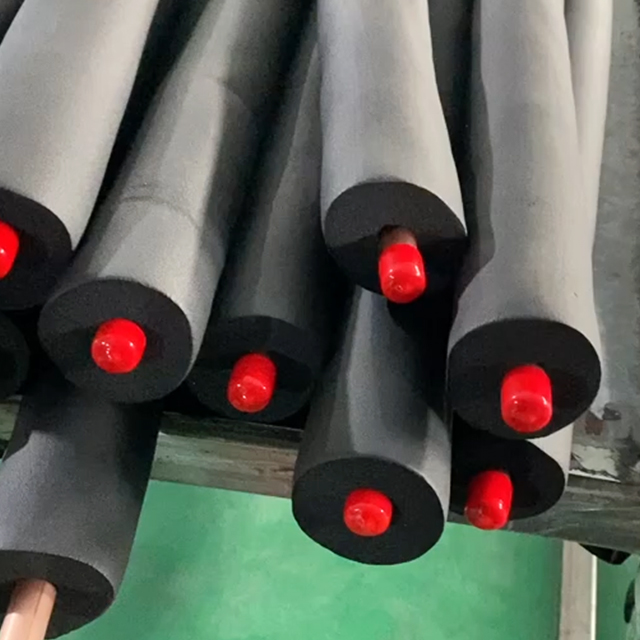

Professional-grade MINI SPLIT LINE SET products usually use closed-cell foam insulation because it blocks moisture absorption better than basic open-cell materials. This structure helps reduce condensation risks in both indoor and outdoor applications.

How to Maintain Proper Insulation During Installation

During installation, the insulation should be treated as carefully as the copper tubing itself. Cutting, squeezing, or damaging it can reduce its protective performance.

Follow these installation practices:

● Keep factory insulation intact: Avoid removing large sections of insulation unless absolutely necessary. The original covering provides continuous protection around the copper pipes.

● Avoid unnecessary cuts: Every opening creates a potential weak point where air and moisture can enter.

● Seal insulation joints completely: Use suitable sealing tape around connection areas, gaps, and wall penetration sections.

When joining insulation sections, make sure the edges meet tightly. Even a small gap can allow humid air to reach the cold copper surface.

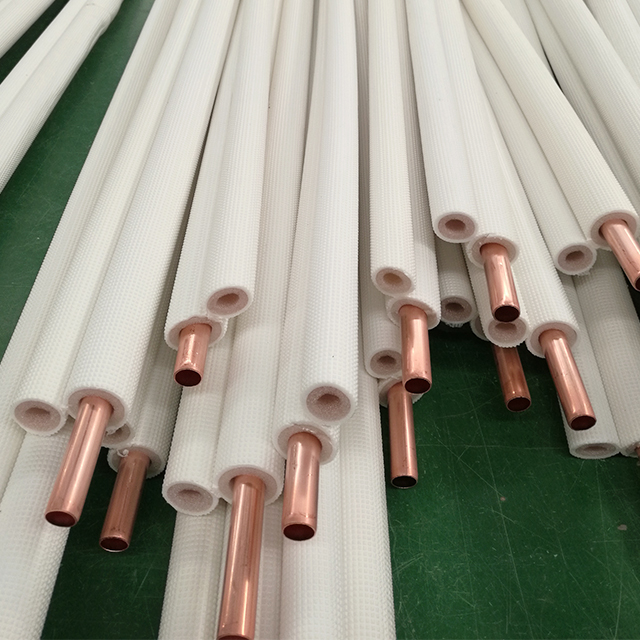

DABUND Pipe uses self-produced closed-cell PE insulation on its insulated copper line sets. The insulation is designed for stable performance across different installation environments, helping installers reduce extra insulation work on-site.

Important insulation features include:

● Continuous foam coverage around copper tubing

● Anti-condensation performance

● Resistance against aging and temperature changes

● Multiple thickness options for different installation requirements

Protect Outdoor Mini Split Line Set Insulation

Outdoor sections face more challenges than indoor installations. Sunlight, rain, wind, and physical contact can gradually damage exposed insulation.

A properly protected outdoor line set should consider these risks:

When routing through exterior walls, seal the opening around the pipe sleeve carefully. This prevents rainwater from entering the wall structure and keeps insulation dry.

For long outdoor runs, a protective cover adds another defense layer. It helps prevent insulation cracking, maintains appearance, and extends the service life of the MINI SPLIT LINE SET.

Avoid compressing insulation too tightly during installation. Excess pressure can reduce its thickness and lower thermal protection. A properly installed insulation layer should stay smooth, complete, and evenly wrapped around the copper tubing.



Conclusion: Install Your Mini Split Line Set Correctly for Reliable Performance

A reliable MINI SPLIT LINE SET installation depends on three key steps: preventing copper kinks, avoiding refrigerant leaks, and protecting insulation.

Choosing a high-quality insulated copper line set reduces installation risks and improves long-term system efficiency.

DABUND Pipe provides factory pre-insulated line sets, customized lengths, and complete HVAC&R solutions for dependable mini split installations.



FAQ

Q: What is the correct way to bend a mini split line set without kinking?

A: Use internal mandrel benders, external spring benders, or slow manual bending methods. Maintain a proper bend radius and avoid sharp turns or excessive force.

Q: Can a mini split line set be bent by hand?

A: Yes, manual bending works for gentle curves. For tighter bends or larger copper tubing, use proper bending tools to prevent pipe collapse.

Q: How do you prevent leaks in a mini split line set?

A: Prepare clean flare connections, tighten fittings using correct torque values, perform nitrogen pressure testing, and complete deep vacuum evacuation before operation.

Q: Why does mini split line set insulation need to be sealed?

A: Sealed insulation prevents condensation, heat loss, and moisture damage. Closed-cell foam insulation helps maintain cooling efficiency and system reliability.

Q: How long can a mini split line set be?

A: Common lengths range from 15 ft to 50 ft. Maximum distance depends on the HVAC system manufacturer’s installation requirements.
