3/8 x 7/8 in. x 50 ft. Insulated Copper Pipe

3/8" x 7/8" x 50 ft Insulated Copper Pipe for HVAC

The 3/8" x 7/8" x 50 ft insulated copper pipe is designed for split air conditioning systems, ductless mini split units, heat pumps, centralized air ducted units and HVACR refrigerant line applications.

This insulated copper piping uses white PE insulation and 99.9% pure copper tubing. It supports reliable refrigerant flow, thermal insulation, condensation control and outdoor line protection for HVAC installation projects.

Dabund Pipe has produced HVAC parts, insulated copper pipe, mini split line sets and HVAC installation accessories since 2008, serving HVAC contractors, wholesalers, distributors and private-label customers.

Product Overview: 50 ft Insulated Copper Pipe for HVACR

This 50 ft insulated copper pipe set is built for air conditioning and refrigeration line runs where stable refrigerant flow and insulation performance are required. The 3/8" and 7/8" copper pipe combination is commonly selected for larger ductless mini split, heat pump and HVAC systems.

The factory-applied insulation helps reduce heat transfer, minimize pipe sweating and protect the copper tubing from weather exposure. Final pipe size, line length and refrigerant charge should always follow the HVAC equipment manufacturer’s installation manual.

Key Features of 3/8" x 7/8" x 50 ft Insulated Copper Pipe

• 3/8" x 7/8" insulated copper pipe for HVAC and refrigeration applications.

• 50 ft length for moderate to long indoor-to-outdoor unit line runs.

• 99.9% pure copper pipe meets ASTM B280 and C12200 standards.

• White PE insulation provides thermal protection and condensation control.

• Insulation is made with polypropylene and UV-resistant materials.

• Insulation options meet ASTM E84, UL94, ASTM D1056 and ASTM G21 requirements.

• Working temperature range from -40℃ to 120℃.

• Pressure rating from 2100 PSI to 7000 PSI, suitable for modern HVAC refrigerant systems.

• Works for ductless mini split, heat pump, centralized air ducted units and refrigeration applications.

• Custom printing is available for company name, size, meters and brand marking.

Copper Tube and Insulation Standards

The copper tube meets ASTM B280 and C12200 DHP standards, providing reliable performance for HVAC refrigerant transport. The copper pipe is suitable for air conditioning and refrigeration systems that require durable, clean and consistent copper tubing.

The insulation uses high-density closed-cell polyethylene foam. It helps maintain stable temperature, reduce condensation and improve long-term pipe protection in outdoor and indoor HVAC installations.

• Copper tube: ASTM B280 and C12200 DHP.

• Insulation: high-density closed-cell polyethylene foam.

• Working temperature: meets or exceeds ASTM C1427-07 requirements.

• Surface burning characteristics: UL94 and UL723 options available.

• Flame spread index less than 25 and smoke development index less than 50 options available.

• Meets ASTM E84 25/50 smoke and fire performance options.

• Superior tear resistance and UV resistance.

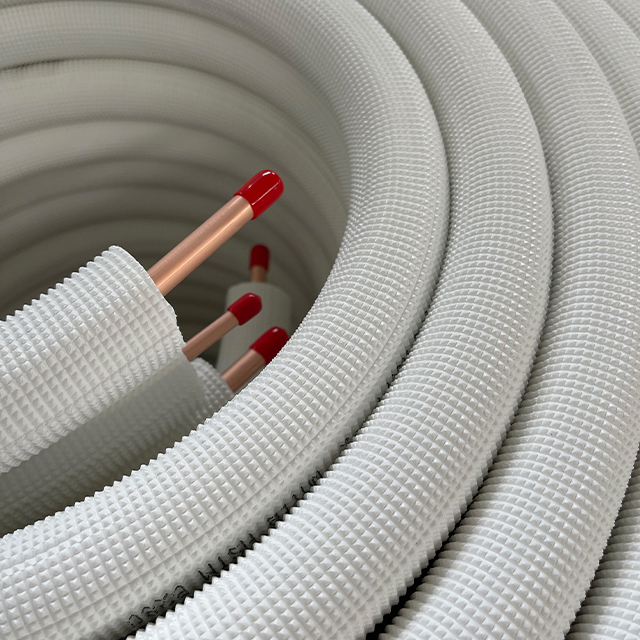

99.9% Pure Copper

White PE Insulated Pipe

Plastic Cap Protection

Features of Pipe Insulation Tubing

The insulation tubing uses a multi-layer structure to protect copper refrigerant lines from temperature loss, moisture, UV exposure and mechanical damage during HVAC installation.

• Embossed polyethylene film provides anti-aging and UV-resistant outer protection.

• Climate-resistant foam helps improve thermal insulation and impact absorption.

• Thickened insulation layer supports waterproof, shockproof and sound absorption performance.

• Closed-cell inner structure improves air tightness and thermal insulation.

• Temperature resistance from -40℃ to 120℃.

• Designed for corrosion resistance, flame retardancy and long-term durability.

Thermal Insulation Pipe Production

Insulation Pipe Warehouse

Inner Layer Insulated Pipe

Three-Layer Insulation Structure

Outer Layer: Anti-Aging PE Film

The outer layer uses anti-aging and UV-resistant PE film with a wear-resistant embossed pattern. It helps protect the insulated copper pipe from outdoor weather and installation wear.

Middle Layer: IXPE Foam

The middle layer uses dense-cell IXPE foam with heat and cold resistance, impact absorption and water-resistance performance. It supports reliable thermal insulation for HVAC refrigerant lines.

Inner Layer: Closed-Cell Insulation

The inner layer has a closed-cell structure for air tightness and thermal insulation. It supports stable performance across temperature conditions from -40℃ to 120℃.

Product Specifications

3/8" x 7/8" x 50 ft Insulated Copper Pipe for HVACR Wholesalers

Dabund Pipe supplies in-house tested insulated copper pipe and tubing for HVACR applications. The insulated copper line set is designed to make installation simple and quick, helping HVAC professionals save time and cost on each job.

This product is suitable for HVACR wholesalers, suppliers, contractors, distributors and private-label customers that need consistent insulated copper pipe supply for mini split and refrigeration markets.

Insulated Copper Pipe Size Options

Recommended Applications by AC Capacity

The 3/8" x 7/8" insulated copper pipe is commonly used for 6.0 ton to 8.0 ton ductless mini split air conditioner systems and 72,000 BTU to 96,000 BTU applications. Final selection should always follow the equipment manufacturer’s installation requirements.

Why Choose Dabund 3/8" x 7/8" x 50 ft Insulated Copper Pipe?

Manufacturing Experience Since 2008

Dabund is a manufacturer of insulated copper pipe, mini split line set, aluminum pipe and HVAC parts. With production and export experience since 2008, Dabund supports HVAC customers in global markets.

Individual Pre-Insulated Rolls

Individual pre-insulated rolls are designed to fit ductless mini split, VRF, heat pump and unitary system installations, helping contractors and distributors select suitable products for different HVAC projects.

Competitive B2B Supply

Dabund provides quality HVAC products with competitive pricing, professional service, OEM printing and custom packaging support for wholesalers, suppliers and private-label brands.

Dabund Factory

Dabund produces insulated copper pipe, mini split line set, aluminum pipe and HVAC parts for global customers.

SGS Certificate

Mini split line set insulation can be made with polypropylene or black rubber with UV resistance, meeting ASTM E84, UL94, ASTM D1056 and ASTM G21 requirements.

Exhibition

Dabund joins HVAC exhibitions worldwide to present insulated copper pipe and mini split line set products to customers face to face.

FAQ

What is 3/8" x 7/8" x 50 ft insulated copper pipe used for?

It is used as an HVAC refrigerant line set for ductless mini split systems, heat pumps, centralized air ducted units and refrigeration applications that require insulated copper piping.

What does 3/8" x 7/8" mean?

It refers to the outer diameters of the two copper refrigerant pipes. The 3/8" pipe is commonly used as the smaller refrigerant line, while the 7/8" pipe is commonly used as the larger suction line in compatible systems.

What AC capacity is 3/8" x 7/8" commonly used for?

The 3/8" x 7/8" insulated copper pipe is commonly used for 6.0 ton to 8.0 ton ductless mini split systems, including many 72,000 BTU to 96,000 BTU applications.

What standards does the copper pipe meet?

The 99.9% pure copper pipe meets ASTM B280 and C12200 standards for HVAC refrigerant line applications.

What insulation standards are available?

Insulation options can meet ASTM E84, UL94, ASTM D1056 and ASTM G21 requirements, depending on project and order requirements.

What is the insulation temperature range?

The insulation is designed for a working temperature range from -40℃ to 120℃.

Is this insulated copper pipe suitable for R410A systems?

Yes. The pipe pressure rating is much higher than the typical required pressure for R410A systems, but installation must always follow the HVAC equipment manufacturer’s specifications.

Can this insulated copper pipe be used outdoors?

Yes. The UV-resistant insulation and protective outer layer are suitable for outdoor HVAC line runs. For long-term exposed installations, a line set cover may provide additional protection.

Can Dabund print my company name on the insulation?

Yes. Dabund can print company name, size, meters and other custom markings on the insulation for OEM and private-label orders.

Can Dabund provide other sizes and lengths?

Yes. Dabund can provide copper sizes including 1/4", 3/8", 1/2", 5/8", 3/4", 7/8" and 1 1/8", with lengths such as 15 m, 20 m, 25 m, 30 m and 50 m.

Are you a trading company or manufacturer?

Dabund is a manufacturer of insulated copper pipe, mini split line sets, aluminum pipe and HVAC parts.

Can I get a free sample?

Yes. Dabund can provide qualified customers with 3 pieces of free samples. Express cost may need to be covered by the buyer. You can request samples through the free sample page.

Can I print my logo?

Yes. Dabund accepts OEM and ODM orders, including logo printing, insulation marking and customized packaging.

What payment terms are available?

Payment terms may include T/T, L/C at sight, credit card and other agreed payment methods depending on order details.

What delivery terms can you offer?

Dabund can offer common international trade terms such as EXW, FOB, CFR and CIF.

How long is your delivery time?

Normal delivery time is usually 15 to 20 days. For urgent orders, production and shipment can be arranged in advance according to factory schedule.
