One pair 1/4"x 3/8" 20 ft line set sizes (liquid and suction line) of mini split air conditioner system. Copper line set with 1/2" rubber insulation for ac installation kit.
25 ft Mini Split Line Set is two tubes tied together with insulating tape, unlike White Embossed Copper Tube, two tubes can be glued together. For the convenience of transportation, we will pack the tubes very neatly and beautifully. So buy it now.
Key Features of 1/4" x 3/8" 25 ft Mini Split Line Set
1. 1/4" x 3/8" is the out dimension in inch. 6.35mm - 9.52mm is the out dimension in metric.
2. 99.9% Pure copper pipe meets ASTM B280 and C12200 standard.
3. AC Copper Size what we can do have following 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" 1 1/8", length can do 15m 20m 25m 30m 50m.
4. Insulation is made of 1/2" Polypropylene & UV Resistant, meets ASTM E 84, UL94, ASTM D1056 and ASTM G 21. Working temperature from -40℃ to 120℃.
5. Works for every Air Conditioning & Refrigeration Application including Ductless mini-split, heat pump and Centralized Air Ducted Units.
6. Pressure Rating: 2100 to 7000 PSI, much more than required 700 PSI for R410.
7. Insulation we produce by ourself, can print your company name, size, meters etc.
Copper Tube: ASTM B280 & C12200 DHP
Insulation: High density closed cells polyethylene foam
Working Temperature: meets/exceeds ASTM C 1427-07
Surface burning characteristics: UL 94, top-rated for Surface Burning Characteristics – UL 723 Flame and Spread Index less than 25 and Smoke Development Index less than 50
Meets ASTM E84 for smoke and fire (25/50)
Superior tear resistance, UV resistant

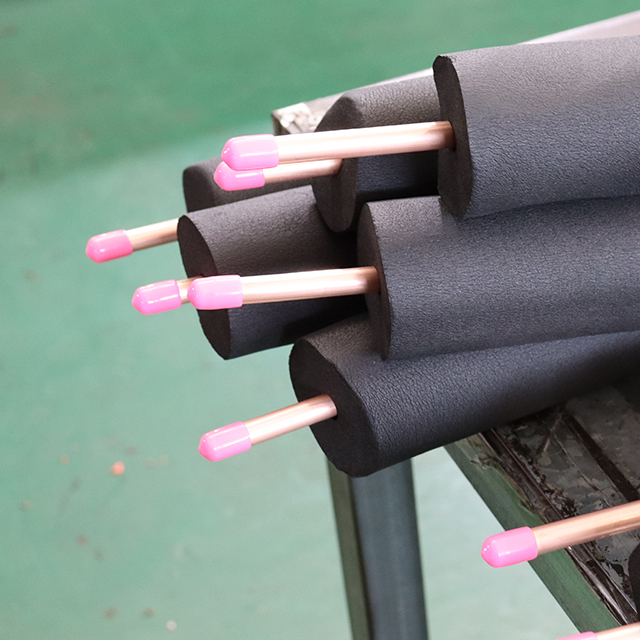

Features of pipe insulation tubing:
● Pipe Insulation, Material Black Rubber, Temp Range -40 Degrees to 120 Degrees.
● The pipe insulation has a better function of moisture condensation. Insulation material is both the insulation layer and moisture-proof layer.
● There is no need to drop the water vapor permeation protective layer so that it has a better moisture condensation function.
Excellent Heat Preservation Insulation: The high density and closed structure of selected raw material has the ability of low thermal conductivity and stable temperature，so the inside of the copper liquid pipe will not be affected even if the weather is frozen outside
Eco-friendly Material: The environmental friendly raw material has no stimulation and pollution, it can avoid the mold growth and mouse biting; The material has the effection of corrosion-resistant, acid and alkali, it can increase the life of using
Excellent Flame Retardant Properties: The material contains a large amount of flame-retardant cigarette raw materials, and the bath fire is not easy to burn and melt, the range of Using temperature is from -40℃ to 120℃
Moisture Condensation: Insulation material is both the insulation layer and moisture-proof layer. There is no need to drop the water vapor permeation protective layer so that it has a better moisture condensation function.
The pipe insulation has many functions such as Heat Preservation Ability, Environmental pollution free, Good flame retardant properties and so on. Besides, it can make your home more tidy and protect the copper pipe in summer.
The pipe insulation has many functions such as Heat Preservation Ability, Environmental pollution free, Good flame retardant properties and so on. Besides, it can make your home more tidy and protect the water pipe whenever summer or copper pipe.
25 ft Mini Split Line Set for HVACR Applications Wholesaler & Supplier
DABUND PIPE in-house tested insulate copper pipe and tubing is designed to make installation simple and quick – saving you time and money on each job.
Mini Split Line Set
Size | Length | Insulation Black Rubber | Flame Resistant |
1/4+3/8 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
1/4+1/2 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
1/4+5/8 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
3/8+5/8 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
3/8+3/4 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
1/2+3/4 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
3/8+7/8 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
1/4 + 3/8 AC line set used for 0.75TON - 1.0TON mini split air conditioner.
1/4 + 1/2 Mini split line set used for 1.5TON - 2.0TON mini split air conditioning.
1/4 + 5/8 Copper line set used for 2.0TON - 2.5TON split air conditioner system.
3/8 + 5/8 Insulated copper tube apply for 3.0TON - 4.0TON ductless mini split air conditioner.
3/8 + 3/4 Insulated copper tubing used for 4.5TON - 6.0TON split air conditioner installation.
3/8 + 7/8 Insulated copper piping apply for 6.0TON - 8.0TON ductless mini split air conditioner.
Air conditioning copper line sets 1/4 + 3/8 used for 0.75P and 1P split air conditioning.
Copper pipe kit 1/4 + 1/2 commonly used for 1.5P and 2P mini split air conditioners.
1/4 + 5/8 Line set for mini split used for 2P and 2.5air conditioner system.
3/8 + 5/8 Mini-split copper line set apply for 3P and 4P ductless mini split air conditioner.
3/8 + 3/4 Copper pipe kit used for 4.5P and 6P split aircon installation.
3/8 + 7/8 Insulated copper piping apply for 6P - 8p TON ductless mini split air conditioner.
1/4 + 3/8 Mini split line set used for 9000BTU and 12000 BTU split air conditioner.
All copper line set 1/4 + 1/2 commonly used for 12000 BTU and 18000 BTU mini split air conditioners.
1/4 + 5/8 Insulated copper line set used for 24000 BTU and 30000 BTU air conditioner system.
3/8 + 5/8 Mini-split line set apply for 36000 BTU and 48000 ductless air conditioner.
3/8 + 3/4 Mini split line set used for 54000 BTU and 72000 split air conditioner installation.
3/8 + 7/8 Insulated copper piping apply for 72000 BTU - 96000 BTU ductless mini split air conditioner.
Aircon copper line set 1/4 + 3/8 used for 9K and 12K split air conditioner.
High quality copper line set 1/4 + 1/2 commonly used for 12K and 18K mini split air conditioners.
1/4 + 5/8 Insulated copper line set used for 24K and 30K air conditioner system.
3/8 + 5/8 Mini-split line set apply for 36K and 48K ductless air conditioner.
3/8 + 3/4 Mini split line set used for 54K and 72K split air conditioner installation.
3/8 + 7/8 Insulated copper piping apply for 72K - 96K ductless mini split air conditioner.
Why Choose 25 ft Mini Split Line Set from DABUND PIPE
We are manufacturer of mini split line set since 2008 years, have good experience of producing and exporting. We have cooperated 9 years forwarder, can guarantee the shipment. Every week we load at least 6-8 40HQ to different countries. Choose Dabund You will win the business.
Individual pre-insulated rolls to perfectly fit every ductless mini-splits, VRF, heat pumps and unitary systems installation.
Quality products with competitive pricing
Peace of mind with professional services
DABUND FACTORY
We produce Insulated Copper Pipe, Mini Split Line Set and Aluminum Pipe and HVAC Parts
SGS Certificate
Mini Split Line Set is made of Polypropylene or Black Rubber with UV Resistant, meets ASTM E 84, UL94, ASTM D1056 and ASTM G 21
Exhibition
We join the exhibitions all over the word, just to facilitate customers to experience our mini split line set face to face.
FAQ
1.Q:What is your payment terms?
A:TT,L/C AT SIGHT,CREDIT CARD etc
2.Q:What is your delivery terms?
A:EXW, FOB, CFR, CIF etc
3.Q:Are you trading company or manufacturer?
A:Manufacturer
4.Q:May I get a sample?
A:Yes, we can send you 3pieces free samples.
You just charge for the express cost is ok.
5.Q:Can I print my logo?
A:Yes of cause, we accept OEM and ODM.
6.Q:How long is your delivery time?
A:Usually 15-20days, if urgent, we can arrange to do in advance and delivery fast.
