Can You Reuse An Existing Copper Line Set? Compatibility, Cleaning, And Pressure Testing Guide

Can an old copper line set really work with your new HVAC system?

Reusing an existing copper line set can save costs, especially for hidden pipes inside walls or concrete.

However, incorrect reuse may cause refrigerant leaks, compressor damage, efficiency loss, and warranty problems.

This guide explains how to evaluate a copper line set through compatibility checks, cleaning, flushing, and pressure testing.

You’ll learn when to reuse copper line set systems and when replacement is the safer choice.



Can You Reuse an Existing Copper Line Set for a New HVAC System?

Reusing an existing copper line set can be a practical option during an HVAC upgrade. It can reduce replacement costs and avoid damaging finished walls, ceilings, or concrete structures. However, it should never be reused without checking its size, condition, and pressure capability first.

A copper line set must match the requirements of the new HVAC unit. Even small differences in pipe specifications can affect refrigerant circulation, cooling performance, and system reliability. Before installation, technicians usually compare the existing pipes against the equipment manufacturer’s requirements.

When You CAN Reuse an Existing Copper Line Set

A reusable copper line set normally needs to meet four basic conditions:

● Correct pipe size

● Suitable tube wall thickness

● Complete insulation protection

● No physical damage

If all conditions are satisfied, reuse may be possible after proper cleaning and pressure testing.

Check Copper Line Set Size Before Reuse

The pipe diameter must match the new air conditioning or heat pump system. Refrigerant lines are designed for specific flow rates. Using an incorrect size may create problems inside the refrigeration cycle.

Common copper tube sizes include:

A pipe that is too small can restrict refrigerant movement. It may reduce cooling capacity and increase energy consumption.

A pipe that is too large can also create performance issues. Refrigerant may not flow at the correct speed, affecting system balance and efficiency.

For mini split copper line set applications, always confirm the required liquid and suction line sizes before connecting a new indoor and outdoor unit.

Verify Copper Tube Wall Thickness and Pressure Rating

Pipe size alone does not determine whether an existing copper line set is safe. Wall thickness is another key factor because it affects pressure resistance.

Modern refrigerants, such as R410A and R32, often operate at higher pressures than older systems. Older copper pipes may not always meet these requirements.

Before reuse, check:

● Copper tube wall thickness

● Refrigerant compatibility

● Maximum pressure rating

● Manufacturer installation requirements

A strong copper tube helps prevent leakage risks during long-term operation. Thin or aged tubing may fail under higher working pressure, especially after years of service.

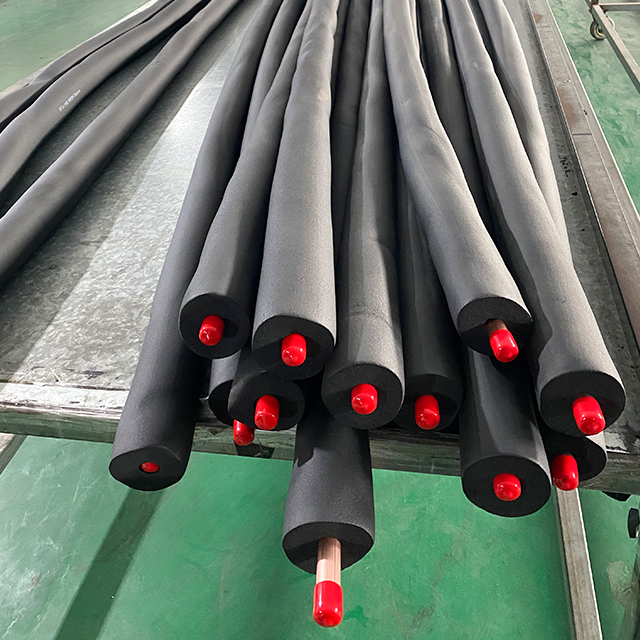

Inspect Insulation Condition Carefully

The insulation around a copper line set protects the system from heat transfer and condensation. Damaged insulation can reduce efficiency and create moisture problems.

Before reuse, look for:

● Cracked insulation foam

● Water damage

● Aged or hardened insulation

● Missing insulation sections

Damaged insulation may cause:

● Condensation on the pipe surface

● Unnecessary heat loss

● Increased corrosion risk

● Reduced HVAC efficiency

A properly insulated copper line set should remain flexible, continuous, and free from visible damage.

Check for Physical Damage Before Installation

Copper tubing is durable, but years of installation stress can affect its structure. A pipe may look acceptable outside while having hidden weaknesses.

Inspect carefully for:

● Kinks from improper bending

● Deep dents

● Flattened sections

● Surface corrosion

● Pinhole leaks

● Damaged flare connections

If the copper line set passes these checks, the next steps are cleaning, flushing, and pressure testing. These processes remove contamination and confirm that the reused pipe can safely support the new HVAC system.

How to Check Copper Line Set Compatibility Before Reuse

Before reconnecting an old copper line set to a new HVAC system, compatibility checks are essential. A pipe may look clean and strong outside, but small differences in size, pressure rating, or internal condition can affect the entire refrigeration cycle.

Many installation problems happen because old pipes are reused without comparing them against the new equipment requirements. Taking time to verify specifications helps prevent poor cooling performance, refrigerant leaks, and unexpected compressor failures.

Match Copper Line Set Dimensions With New HVAC Equipment

The first step is comparing the existing copper line set against the new unit’s technical requirements. Every HVAC system is designed around specific refrigerant flow conditions. A mismatch can reduce efficiency or create long-term operating problems.

Before reuse, check these key specifications:

● Outer diameter: Confirm the liquid and suction lines match the required sizes.

● Tube thickness: Verify the copper wall can handle the system pressure.

● Line length: Make sure the existing length stays within the equipment limits.

● Refrigerant type: Check compatibility between the pipe and refrigerant.

● Manufacturer specifications: Follow the new HVAC system’s installation guidelines.

For example, mini split systems often use copper line set sizes such as 1/4", 3/8", 1/2", or 5/8". However, the correct combination depends on the unit capacity and manufacturer design.

Using an incorrect size may cause unstable refrigerant movement. The system may work initially, but energy consumption can increase while cooling performance decreases.

Check Copper Line Set Pressure Rating

Pressure rating is another critical factor when evaluating an existing copper line set. Modern refrigerants usually operate at higher pressures than older systems. An older pipe may not always provide enough safety margin.

This is especially important when replacing older equipment:

● R22 systems being upgraded to newer refrigerants

● R410A systems requiring higher pressure performance

● R32 systems using modern A2L refrigerant technology

● New heat pump systems designed for higher operating pressures

Older copper tubing may have thinner walls or unknown service history. Before reuse, confirm that it can withstand the required pressure level from the new HVAC system.

A professional check should include:

● Maximum working pressure

● Copper tube wall thickness

● Refrigerant compatibility

● Manufacturer-approved pressure requirements

Never assume an existing pipe is suitable just because it worked with the previous air conditioner. The operating conditions may be completely different after replacement.

Inspect Copper Line Set Internal Condition

The inside of a copper line set can affect the new HVAC system just as much as the outside condition. Years of operation may leave contaminants inside the tubing.

Common internal contaminants include:

● Old compressor oil

● Acid residue from compressor failure

● Moisture trapped inside the pipe

● Metal particles from system wear

● Remaining refrigerant residue

These contaminants can create serious problems after reuse. They may damage sensitive components and reduce system reliability.

A contaminated copper line set can shorten compressor life and reduce overall HVAC efficiency. That is why internal inspection, cleaning, and proper flushing are necessary before connecting it to new equipment.



How to Clean and Flush an Existing Copper Line Set Before Reuse

A used copper line set is not the same as a factory-new pipe. New copper tubing is usually sealed, clean, and protected before installation. An existing pipe may contain years of oil, moisture, and system residue.

Before connecting it to new HVAC equipment, proper cleaning is necessary. A contaminated copper line set can affect refrigerant circulation, damage internal components, and reduce system reliability.

Cleaning helps remove:

● Compressor oil residue left from previous operation

● Acid sludge caused by compressor problems

● Moisture trapped inside the tubing

● Metal particles from system wear

● Old refrigerant and chemical residues

These contaminants may appear small, but they can create major problems. For example, moisture can react with refrigerant oil and form acids. Those acids may damage the compressor and shorten equipment life.

Step-by-Step Copper Line Set Flushing Procedure

A complete flushing process requires several steps. Each stage prepares the copper line set for safe reuse and helps protect the new HVAC system.

Step 1: Recover Existing Refrigerant Safely

Before cleaning starts, all remaining refrigerant must be removed from the system. This step protects both technicians and the environment.

Old refrigerant inside the copper line set may contain oil residue or contaminants from previous operation. Leaving it inside can reduce cleaning effectiveness and affect the new refrigerant cycle.

Professional technicians normally recover refrigerant using approved recovery equipment. The pipe should only be cleaned after the system is fully isolated.

Step 2: Apply Proper HVAC Flushing Solvent

After refrigerant removal, the copper line set can be flushed using suitable HVAC cleaning solutions. The purpose is to dissolve oil deposits and remove internal buildup.

A proper flushing process should remove:

● Used compressor oil

● Sticky residue

● Acid contamination

● Small particles inside the tube

The flushing solvent should pass through the entire pipe section until the discharged fluid appears clean. Using unsuitable chemicals may leave additional residue or damage the copper surface.

Step 3: Perform Nitrogen Purging

Dry nitrogen is an important part of copper line set cleaning. It pushes out remaining solvent, loose particles, and moisture after flushing.

During nitrogen purging, technicians focus on:

● Using clean, dry nitrogen

● Maintaining proper pressure according to system requirements

● Continuing the purge until contaminants are removed

Nitrogen also helps reduce oxidation inside the copper tubing. This protects the internal surface and prepares the line set for the next installation step.

Step 4: Complete Deep Vacuum Evacuation

After flushing and nitrogen purging, moisture can still remain inside the pipe. A deep vacuum process removes trapped water vapor before the new HVAC system starts operation.

This step helps:

● Prevent internal copper oxidation

● Reduce corrosion risks

● Improve refrigerant stability

● Protect compressor performance

A properly evacuated copper line set provides a cleaner environment for the new refrigeration cycle.

Step 5: Seal Copper Line Set Ends After Cleaning

Once cleaning is complete, the pipe ends should be sealed immediately. Even a clean copper line set can become contaminated again if it remains open.

Use protective caps to prevent:

● Dust entering the tubing

● Humidity exposure

● New particle contamination

Keeping the cleaned copper line set sealed until installation helps maintain the results of the flushing process.

How to Pressure Test a Reused Copper Line Set

Cleaning is an important step, but it does not prove that an old copper line set is safe for reuse. A pipe may look clean inside and outside while still having hidden leaks or weak connection points.

Pressure testing is used to confirm the mechanical condition of the copper line set before it connects to new HVAC equipment. It helps identify problems that may cause refrigerant loss, compressor damage, or reduced system performance.

Skipping this step can lead to:

● Refrigerant leakage after installation

● Poor cooling efficiency

● Compressor stress and failure

● Higher maintenance costs

A proper pressure test gives technicians confidence that the reused copper line set can handle the new system’s operating conditions.

Copper Line Set Nitrogen Pressure Testing Procedure

Dry nitrogen is commonly used for pressure testing because it is stable, clean, and does not react with the copper tubing. The process should follow HVAC manufacturer requirements and the pressure limits of the equipment.

The main testing steps include:

Step 1: Seal Both Ends of the Copper Line Set

Before applying nitrogen, both ends of the copper line set must be completely sealed. This creates a controlled environment for accurate testing.

The pipe should be isolated from other HVAC components during inspection. Any open connection can cause incorrect readings and make it difficult to identify the actual problem.

Technicians should also check:

● Flare connections

● Service ports

● Pipe joints

● Existing fittings

A proper seal ensures the pressure reading reflects the real condition of the copper tubing.

Step 2: Fill the Copper Line Set With Dry Nitrogen

After sealing the pipe, dry nitrogen is introduced into the copper line set. The testing pressure depends on the refrigerant type, equipment design, and manufacturer recommendations.

Modern HVAC systems may operate under higher pressure conditions, especially those using refrigerants such as R410A or R32. Therefore, the test pressure must be selected carefully.

During this stage, technicians should confirm:

● Correct nitrogen pressure level

● Stable pressure increase

● No immediate pressure loss

Using dry nitrogen also prevents moisture from entering the system during testing.

Step 3: Hold Pressure and Monitor Changes

After reaching the required pressure, the copper line set needs time for observation. A stable reading indicates that the pipe structure and connections are likely in good condition.

Technicians usually monitor:

● Pressure drop over time

● Connection stability

● Flare fitting performance

● Possible leakage points

Even a small pressure decrease can indicate a hidden problem. It may come from a damaged tube section, loose connection, or aging flare joint.

Step 4: Perform Leak Detection

Pressure monitoring shows whether a leak exists, but additional inspection helps locate the exact source.

Common leak detection methods include:

● Soap bubble test: Apply leak detection solution around joints and connections. Bubbles indicate escaping nitrogen.

● Digital pressure monitoring: Use precise gauges to track small pressure changes during the holding period.

A reused copper line set should only be connected to new HVAC equipment after it passes pressure testing. This process helps reduce hidden risks and supports more reliable system operation.



Conclusion: Should You Reuse Your Existing Copper Line Set?

A copper line set can be reused, but only after careful professional evaluation.

Compatibility checks, cleaning, and pressure testing are essential before installation.

When risks appear, choosing a new copper line set offers better reliability and long-term HVAC performance.

Contact DABUND professionals for proper inspection before reuse.

Choose reliable copper line set solutions for safer and more efficient installations.



FAQ

Q: Can you reuse an existing copper line set for a new air conditioner?

A: Yes, a copper line set can be reused if its size, condition, pressure rating, insulation, and cleanliness meet the new system requirements.

Q: How do I know if my copper line set is compatible?

A: Check the pipe diameter, wall thickness, line length, refrigerant type, insulation condition, and HVAC manufacturer specifications before reuse.

Q: Do old copper line sets need to be flushed before reuse?

A: Yes, flushing removes oil residue, moisture, acid sludge, metal debris, and refrigerant contaminants that may damage new equipment.

Q: What pressure should a copper line set be tested at?

A: The test pressure depends on the refrigerant type and manufacturer requirements. Dry nitrogen testing is commonly used to check leaks and safety.

Q: Should I replace my copper line set when switching from R22 to R410A or R32?

A: Check pressure resistance and internal contamination first. Older pipes may require replacement if they cannot meet new refrigerant requirements.
