How To Repair Damaged Insulation on Copper Refrigerant Tubing

Have you ever seen a line set drip like it’s sweating? That usually means your INSULATED COPPER TUBE insulation has failed. And that small tear can turn into bigger comfort, efficiency, and durability issues.

Your refrigerant lines rely on insulation to limit heat transfer and control condensation. When the insulation cracks, peels, punctures, or ages, the damage stops being only cosmetic. Exposed cold copper can create wet conditions that may encourage mold and corrosion risks.

In this post, you’ll learn how to repair INSULATED COPPER TUBE insulation step by step. You’ll also see what materials and sealing details matter most for long-lasting results.

Materials & Tools You Need to Repair INSULATED COPPER TUBE Insulation

Repairing INSULATED COPER TUBE insulation is less about “covering a spot” and more about rebuilding a tight closed-cell envelope. The right materials create a barrier against moisture and help insulation keep doing its job. If you skip the protective outer layer, UV and rain quietly undo your work before the season ends.

Start by gathering what you need before touching the insulation. I’ve seen crews waste time hunting parts mid-job, then rushing the seams to finish late. Plan it once, then do it cleanly—especially around butt joints and elbows where water vapor infiltration tends to start.

Core Materials for a Durable Repair ✅

For INSULATED COPPER TUBE repairs, focus on insulation, sealing, and outdoor protection. Closed-cell insulation does the thermal work, sealing keeps gaps from breathing, and outer layers handle UV exposure and physical wear.

● Closed-cell elastomeric rubber insulation (outdoor-rated): This matches the thermal barrier role of the original line-set insulation and resists moisture penetration.

● UV-resistant line set tape or aluminum foil tape: Use it on seams and external protection so the repair doesn’t fade, crack, or peel.

● HVAC duct seal putty: It seals the wall penetration area, where outdoor air and pests can otherwise sneak in.

● UV-resistant zip ties: They keep control wires tidy and reduce the risk of abrasion against insulation.

● Optional but worth it: replacement insulation sleeves (split or pre-slit) and dedicated sealing mud for elbow/interface gaps.

If you’re repairing outdoors, the “outdoor-rated” part matters. UV can break weaker insulation quickly, and once the surface cracks, the damage expands.

Tools That Make the Job Precise (Not Messy)

Tools matter because you’re working around copper tubing and refrigerant line connections. One slip with a blade can turn a small insulation issue into a bigger repair scope.

● Utility knife and scissors: Use them for controlled removal and accurate cutting lengths on insulation sleeves.

● Cleaning cloth/alcohol wipes (recommended): Copper surfaces need to be clean and dry so tape adhesives bond reliably.

● Measuring tape: Measure exposed run lengths and allow a snug fit at both ends so edges don’t lift later.

Field experience tip: seam quality is everything. If the longitudinal seam or butt joint isn’t sealed tightly, water vapor finds pathways, and the insulation fails from the inside out.

Matching Sleeves and Sealants for Elbows & Connections

Elbows and connections are where geometry fights you. Straight runs are easier, but turns create small gaps if you don’t use the right sleeve type.

● Split insulation sleeves help when insulation is partially peeled.

● Pre-slit sleeves help you wrap without disturbing the copper more than necessary.

● Dedicated sealing mud fills the connecting spaces so the repair doesn’t “leak” air or moisture at the transition.

This is also why repair kits from a consistent manufacturer approach can be easier to manage on site. For example, DABUND’s one-stop accessories concept focuses on matching repair materials with the insulation system, including sealing and protective layers, which helps reduce mismatch risk during recurring maintenance.

What to Buy: Quick Reference Table

Use this table to plan your INSULATED COPPER TUBE insulation repair kit. It keeps crews aligned on what belongs where, instead of mixing tape types or grabbing random adhesives.

Work the repair in layers, not steps. Insulation comes first, then seals and tapes, then outer protection, especially where sunlight hits. That layered approach is what keeps your repaired INSULATED COPPER TUBE looking solid long after installation day.

Step-by-Step Repair Guide — How to Repair Damaged Insulation on INSULATED COPPER TUBE

When insulation on an INSULATED COPPER TUBE fails, the repair needs to rebuild the whole insulation envelope. Most callbacks don’t come from the foam itself. They come from wrong measuring, dirty copper, gaps at seams, and weak sealing at joints and wall penetrations. Take your time and do each step in order, because we’re working with adhesives, moisture control, and outdoor exposure all at once.

Below is the workflow I use with teams. It’s practical, repeatable, and it keeps the repair from turning into a second repair job a few weeks later.

1) Measure the Tubing Correctly (Outside Diameter + Exposed Length)

Start small. Peel back only enough foam to measure the copper tube outside diameter. If you peel too far, they create extra debris and more area to fix later, and that adds errors.

Then measure the total exposed length that needs coverage. Add a little allowance so ends compress tightly when the foam expands and contracts. Too tight can split insulation; too loose can lift edges and invite moisture.

● Measure outside diameter from the peeled area only

● Measure exposed run length end-to-end

● Add a small compression allowance at both ends

2) Remove Old Damaged Insulation Safely

Shut down the system first. It’s not only safety—it also helps avoid condensation and wet surfaces while they work.

Score the old insulation carefully along the length. Remove degraded foam without scratching or puncturing the copper. Clear all broken pieces and confirm the copper surface is clean and dry before tape and any adhesive-grade surfaces touch it.

Here’s what “clean enough” looks like in the real world: no dust, no oil sheen, no damp spots.

3) Cut and Dry-Fit the New Closed-Cell Insulation Sleeve

Cut the new closed-cell insulation sleeve to length, then do a dry fit before fully sealing. This is where many crews skip the check. They rush to close it, then discover one end can’t seat fully or the sleeve is slightly off.

Closed-cell insulation should wrap fully around the copper. No voids, no floating edges, and no “almost fits” moments. Take one extra minute here and you avoid half a day of rework later.

4) Install the Sleeve and Seal the Longitudinal Seam

If you’re using pre-slit insulation, place the longitudinal seam downward. That simple orientation helps reduce rainwater entry risk when the pipe run is outdoors. Next, press the integrated adhesive edges together firmly along the full length.

Pressing matters. If edges don’t bond evenly, water vapor finds a route through the seam area and spreads the damage from the inside.

Quick Fit Check (before taping)

● Seam faces downward

● Edges look fully seated

● No visible gap at either end

5) Tape Butt Joints and Secure Ends

Where two insulation pieces meet, treat the butt joint as a primary failure point. Apply HVAC-grade foil tape or specialized line-set tape over those joints so they form a continuous moisture barrier around the INSULATED COPPER TUBE.

After that, secure control wires neatly. Use UV-rated zip ties with appropriate spacing so wires don’t rub against insulation over time. It sounds minor, but abrasion can create the next crack.

6) Seal the Wall Penetration to Block Outdoor Air and Pests

The wall entry point is where indoor/outdoor pressure differences can move air and moisture. Use HVAC duct seal putty to seal around the insulation sleeve at the exterior wall penetration.

Press it firmly into the gap. This helps stop outdoor air infiltration and reduces the chance of pests accessing wall spaces near the line set.

7) Apply UV Protection (Highly Recommended)

UV protection is the difference between a repair that survives seasons and one that fails quickly. Apply UV-rated outer protection over the sun-facing half of the repaired run. If the system calls for a specific approach, follow that guidance and match materials, not just appearance.

Use UV-ready tape or compatible UV barrier layers so the outer insulation surface doesn’t crack under sunlight.

For outdoor runs, it’s also smart to think about minor impact. A protected seam and a UV-protected surface keep the repair stable long after installation day.

Outdoor Protection & UV-Resistant Finishing for INSULATED COPPER TUBE Repairs

Outdoor repairs live on a tougher schedule than indoor work. Sun, rain, and temperature swings attack insulation edges first, then the seams, then the copper itself. For an INSULATED COPPER TUBE, that means your repair needs an outer “shield,” not just a foam patch.

The failure pattern is predictable: UV exposure cracks the outer surface, cracks expand into larger damaged zones, and more copper ends up exposed. Once that happens, cold surfaces pull in condensation again, and the wet cycle restarts.

Why UV Protection Isn’t Optional for INSULATED COPPER TUBE

If the insulation outer film breaks down, moisture can migrate through tiny openings. Even a well-sealed seam can fail if the sun-facing layer degrades quickly and pulls the whole protective system apart.

Crews often assume tape is enough. It’s not. Tape protects joints, but the sun-facing insulation surface still needs UV-rated outer protection to stay stable.

● UV cracking usually starts at the top half of the run

● Edges and butt joints fail sooner than mid-span foam

● Once condensation forms repeatedly, mold risk increases near the line set area

Finishing Layers That Hold Up in Real Installations

Think in layers. Foam handles insulation, tape handles continuity, and the outer layer handles weather and abrasion.

You’ll usually see two categories used outdoors: UV-rated tape applied over the repaired section, or a compatible UV barrier layer that matches the insulation system. Either way, they need to cover the sun-facing half and any section exposed to direct weather.

Also watch how the repair sits in space. A repaired section that “floats” or is slightly misaligned tends to lift edges over time. They create micro-gaps that rain can push into.

Practical “where to protect” checklist

● Top sun-facing portions of the INSULATED COPPER TUBE run

● Areas near elbows where seams are more stressed

● Sections close to maintenance pathways where people brush cables or covers

Brand-Specific Fit: DABUND-Style Outdoor Protection Logic

If you use DABUND’s three-layer embossed PE insulation series for outdoor line sets, their outer layer is built to resist wear and UV exposure during real jobsite conditions. That matters because outdoor repairs fail when the outer surface can’t stay intact long enough for the seam and closed-cell foam to do their job.

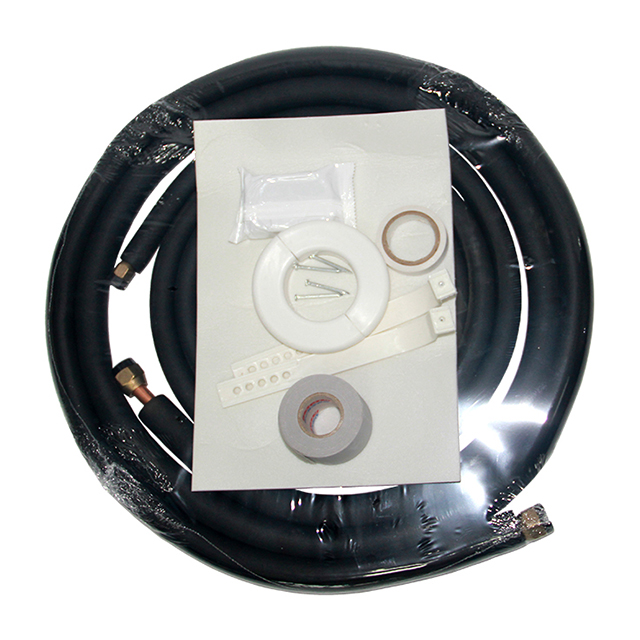

When you need additional protection on exposed runs, the line set cover kit concept fits naturally. It adds an external physical barrier so the repaired area doesn’t get re-damaged by handling, minor collisions, or repeated access around the installation.

This approach keeps the repair aligned with the system’s design intent, rather than mixing materials and hoping for the best under sunlight.

Conclusion — Restore Performance and Protect Your INSULATED COPPER TUBE

A properly repaired INSULATED COPPER TUBE restores a continuous closed-cell thermal barrier. It helps cut cooling and heating efficiency loss around the line set. It also reduces condensation-related issues that can lead to wet spots and longer-term damage.

The workflow stays consistent every time. Diagnose damage severity, measure correctly, and remove safely. Clean and dry the copper, then install the correctly sized closed-cell insulation. Seal seams and butt joints, seal wall penetrations, and add UV-rated outdoor protection. Done right, the repair lasts longer than repeated fixes.

FAQ

Q:What happens if you don’t repair damaged insulation on an insulated copper tube?

A:Condensation forms, droplets drip, nearby areas stay wet, and mold risk rises. Exposed copper can oxidize, and efficiency may drop due to cold/heat loss.

Q:Do I need to insulate both refrigerant lines on insulated copper tube systems?

A:Usually only the suction (larger cold) line needs insulation. The liquid line is often left uninsulated per system design.

Q:How do I choose the right insulation size for an insulated copper tube repair?

A:Measure the copper tube outside diameter, then pick a closed-cell sleeve that matches. It should fit snugly and compress at both ends.

Q:Can I repair a small puncture without replacing the entire insulated copper tube section?

A:Yes for minor punctures, using matching UV-rated tape or patch materials. Bigger peeling or widespread aging needs a split sleeve or replacement section.

Q:Why do insulated copper tube insulation repairs fail outdoors?

A:Most failures come from missing/insufficient UV protection, seam or butt-joint gaps, poor wall-penetration sealing, or non-outdoor-rated materials.
