Copper Line Set for Mini Split Vs Central AC: What Is The Difference?

Why do some Copper Line Set orders sweat, leak, or get returned while others fit perfectly?

It usually comes down to the wrong system match, not “bad luck.”In this post, you’ll learn how choosing the right Copper Line Set changes the job.

Mini split and central AC copper line sets differ in insulation, connection method, sizing, length, and install scenario.

By the end, you’ll know what to check first so the right parts land on site fast.



Key Differences at a Glance (The Buying Checklist)

If you’re buying a Copper Line Set for mini split or central AC, the “two pipes” idea is only half the story. Buyers get stuck when insulation, connections, and sizing don’t match the system design. This checklist helps you avoid the most common procurement mistakes before they hit the jobsite.

This table is the fastest way to align your order specs. It also helps installers and wholesalers talk in the same language, instead of guessing based on pictures or vague product codes. Once you lock these items, the rest of the job usually goes smoother.

How to use this table in procurement

Most delays happen after a wrong assumption. So we keep it simple and follow a short flow that locks the right Copper Line Set early. It prevents rework, wrong stock returns, and those annoying “we need a different one” calls right before installation.

1. Step 1: identify your system type first (mini split vs central)

Mini split is ductless and zone-based, so the Copper Line Set follows each indoor zone’s needs. Central AC is ducted and whole-house oriented, so the Copper Line Set matches the main run feeding an air handler.

2. Step 2: confirm the size combo (diameter pair)

Mini split orders often center on 1/4"+3/8", 1/4"+1/2", or 1/4"+5/8". Central AC orders more often revolve around 3/8"+5/8", 3/8"+3/4", or 3/8"+7/8". Getting the diameter pair wrong is one of the fastest ways to create performance and fit issues.

3. Step 3: confirm length format + insulation requirements

Mini split is commonly stocked around 15m/20m/25m style formats, which map well to typical wall-penetration routes. Central AC usually needs longer 30m/50m runs, and insulation emphasis often differs because the system layout changes where “cold exposure” happens along the line.

The differences buyers feel on site

Insulation is where problems show up first. Mini split lines are typically double insulated, because both liquid and suction sides can be cold and sweat heavily if they’re left under-insulated. Central AC setups often treat insulation differently, focusing more thickness on the larger suction line based on how the system expands and where stable ambient conditions exist.

Connection method matters too, and it’s not just technical trivia. Mini split Copper Line Set commonly uses flare fittings and mechanical sealing, which reduces reliance on open flame at the living space. Central AC Copper Line Set often uses brazed joints, meaning torch-based brazing is part of the expected installation workflow.

If you’re working with B2B buyers who order multiple SKUs, brand consistency helps. DABUND supports OEM and ODM Copper Line Set customization, including packaging and labeling options, so wholesalers can keep SKU confusion low when mini split and central AC products ship together. That kind of supply control matters when multiple crews are installing in parallel and every carton needs to match the right size combination.

Insulation Differences — The Reason COPPER LINE SETs Aren’t Interchangeable

The insulation isn’t a “nice-to-have.” It’s the main reason a Copper Line Set works—or turns into a sweating, callback-heavy install.

When crews swap a mini split line set for central AC specs, they usually don’t notice until condensation appears behind the drywall or under insulation seams.

Mini split insulation: double full insulation

Mini split Copper Line Set installs treat both lines as “cold.”

That means liquid and suction sections can sweat if the insulation system isn’t complete and continuous.Here’s what that does for real jobs:

● Reduces surface sweating on both pipes, even when humidity is high.

● Protects walls and furniture from moisture damage, especially near bedrooms and living areas.

● Keeps airflow paths clean because wet insulation can trap dust and degrade fast.

In practice, this is why mini split insulation often feels “thicker everywhere.” They’re protecting both pipes like they’re equally important, because they are.

Central AC insulation: single main focus (usually suction line)

Central AC is different because the layout changes the “cold exposure” zones.

Only the larger suction line typically needs heavy insulation, while the smaller liquid line often gets lighter treatment or practical coverage.Why? The system design and install environment matter.

Central setups often run through attic or ME spaces, where ambient conditions can be more stable than wall cavities in ductless installs.

When insulation is planned around where the cold happens, you avoid wasted thickness and keep the line set workable for long runs. When it’s planned wrong, you get sweating where you least want it.

Common insulation materials (and why buyers care)

Buyers usually ask two questions: will it handle temperature swings, and will it resist aging?

Insulation choices affect both performance and jobsite durability.Here are the two mainstream insulation styles you’ll see referenced most:

● Black rubber closed-cell insulation

○ Often described as fire retardant, with anti-UV and anti-mold benefits

○ Typical cited range: -40℃ ~ 120℃

● White PE UV-resistant insulation

○ Lightweight, easy to cut, and built for UV-focused exposure

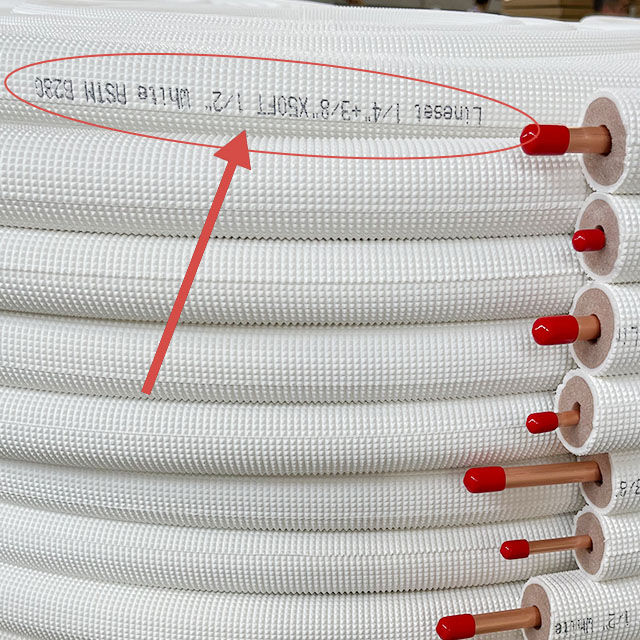

○ Commonly supports surface printing for brand, pipe size, and meter marks

Pick based on the exposure reality. If the line set sees sun or outdoor exposure, UV resistance becomes the deciding factor.

Insulation thickness & performance ranges (what to specify)

Thickness is where specs get misread during purchasing.

Mini split and central AC Copper Line Set insulation often isn’t interchangeable because the thickness target changes with the insulation coverage design.Use these practical thickness references to align ordering with project expectations:

In the field, we’ve seen crews choose the wrong thickness and still “wrap it up.”

The problem is that wrap coverage isn’t the same as insulation performance. They need the correct thickness for sweating resistance, heat retention, and long-term stability.



Size & Diameter Differences — Matching the COPPER LINE SET to Tons and BTU

Size is where most buyers “assume and hope.” For a COPPER LINE SET, that’s risky.

A correct diameter pair helps refrigerant flow match the system load. The wrong one can create weak cooling, extra sweating, and repeat labor.Think of it like choosing the right shoes.

They don’t have to look fancy, but they must fit, or the whole day feels wrong—especially on a jobsite.Mini split most common size combos

Mini split Copper Line Set sizes are usually smaller.

They match ductless, zone-based equipment where each indoor head runs a dedicated refrigerant path.Below are common diameter pairs and what installers often associate them with in ton/BTU terms:

In real procurement, teams usually pick based on the equipment spec sheet first. Then they confirm the diameter pair aligns with that spec, not just the connector style.

Central AC most common size combos

Central AC copper lines tend to be larger.

It’s about moving more refrigerant for whole-house distribution, often with longer runs and higher tonnage systems.These diameter pairs are common for central ducted setups:

When you’re ordering for central AC, it’s also smart to think about insulation design and exposure. A bigger diameter usually means different insulation volume and installation handling.

What happens if you choose the wrong size combo

Mistakes don’t always show up immediately. Some issues appear only after the system stabilizes.

● Here are the patterns crews report most often:Performance drops and efficiency issues

● It can cool slower or fail to reach the target temperature. Then energy use rises because the system works harder for longer.Condensation and insulation mismatch symptoms

● You may see sweating on the line set where insulation coverage doesn’t match the expected temperature behavior. That moisture can stain drywall and create odor problems later.Increased installation time

The crew may spend extra minutes trying to fit, route, or rework connections. Even if it “fits,” it might not behave right.When teams treat COPPER LINE SET sizing as flexible, the job becomes unpredictable. Predictability is what buyers pay for.

Brand capability note

After listing size combos, buyers want to know one thing: can the supplier keep specs consistent?

DABUND supports OEM/ODM Copper Line Set customization, including size adjustment to match tonnage requirements. That helps wholesalers and contractors avoid mixing the wrong diameter SKUs across mini split and central AC projects.

Length & Format Differences — Coils for Mini Split, Longer Runs for Central AC

Length looks simple on paper, yet it decides how smooth the install feels. For a COPPER LINE SET, the format and run length affect routing, connection count, and insulation continuity.

Mini split and central AC follow different jobsite realities. So teams should order different lengths, not just different diameters, because the copper line set workflow changes.

Mini split COPPER LINE SET lengths (typical stock + practical range)

Most mini split jobs use pre-coiled formats. They bend easier and help crews route through wall openings without tearing up the room.

That’s why buyers often stock common lengths for quick replacements and fast installs. When the line set matches the planned wall-to-condenser distance, the crew spends less time “making it work.”

Common stock-friendly formats include these:

● 15m, 20m, 25m, often treated like the practical 15–50ft style range

● Extra short custom lengths for compact indoor kits such as 3m, 4m, 5m (when the design needs it)

Here’s how teams usually think about it for mini split inventory:

Central AC COPPER LINE SET lengths (longer route planning)

Central AC Copper line sets are usually about longer routing and fixed paths. Crews plan runs through attic or mechanical spaces, then connect to the centralized air handler.

Because the distances are longer, central systems commonly use 30m and 50m formats, either from stock or as planned runs. This is where minimizing joints matters, since every connection adds potential risk and time.

Why length planning matters in central AC:

● Minimize joints/splices where possible

Fewer connection points mean less rework risk when insulation seams and end treatments aren’t perfect.

● Ensure insulation continuity end-to-end

If insulation coverage breaks at the wrong spot, you’ll see sweating where you least want it.

How to reduce jobsite delay when lengths are uncertain

Length uncertainty causes delays more often than buyers expect. One mismatch can stop the crew while parts are re-ordered or re-labeled.

A fast way to prevent that is to lock the route early, then align the COPPER LINE SET length with actual site measurements.

Practical steps that reduce delays:

● Confirm routing path early

Check wall holes, ceiling access, and duct frames before ordering. They change where the line set must travel.

● Plan for delivery lead time and stock availability

If a project depends on exact lengths, secure inventory early and match it to the project timeline so the install doesn’t wait on shipping.



FAQ

Q:Are COPPER LINE SETs for mini split and central AC interchangeable?

A:No. Mini split needs double insulation and flare/mechanical ends. Central AC usually focuses insulation on the suction line and uses brazed joints.

Q:Can I reduce insulation thickness on a mini split COPPER LINE SET?

A:Generally no. Mini split lines run cold on both tubes, so insufficient insulation increases sweating and wall/moisture damage risk.

Q:Why does central AC typically require brazed joints?

A:Central AC installs commonly use torch brazing to create durable permanent joints for the main run and whole-house airflow setup.

Q:What if the run length is longer than expected?

A:Confirm routing early, minimize slack and joints, and ensure insulation continuity from end to end.

Q:What COPPER LINE SET sizes should a contractor stock first?

A:Mini split: 1/4"+3/8", 1/4"+1/2", 1/4"+5/8". Central AC: 3/8"+5/8", 3/8"+3/4", 3/8"+7/8". Include common lengths: 15m/20m/25m and 30m/50m.
