Copper Line Set Sizes Explained: 1/4 × 3/8, 1/4 × 1/2, And 3/8 × 5/8q

A wrong COPPER LINE SET size can hurt system efficiency and cause future reliability problems. It can also affect oil return, stressing the compressor over time.

In this post, you’ll learn what a Copper Line Set (COPPER LINE SET) really includes: liquid line, suction line, insulation, and end caps. You’ll also see why choosing by tonnage alone is a common mistake.

You’ll learn how the manufacturer’s designated pipe diameter—especially OD—guides the right size for your setup.



Copper Line Set Size Deep Dive #1 — 1/4 × 3/8

When people say the copper line set is 1/4 × 3/8, they’re really describing the OD pairing inside the copper line set itself. One side is the liquid line, the other is the suction line. Together, they shape refrigerant flow, stability, and day-one performance you’ll feel later in the system.

OD breakdown for 1/4 × 3/8 (liquid + suction)

Here’s the clean mapping installers usually verify on the spec sheet before ordering.

OD is what matters for fit and matching. Copper wall thickness can vary by product, but OD controls pairing with the unit’s connection points and the expansion valve design. When OD doesn’t match, it might “connect,” yet the system won’t behave as designed.

Typical capacity match (where this Copper Line Set shows up)

This size is common in the smaller mini-split world. Think bedrooms, light commercial, and tight spaces where builders want fewer complications and reliable cooling from day one.

Most 1/4 × 3/8 copper line set builds target:

● 0.75–1.0 TON

● 9000–12000 BTU

● Often labeled as 9K / 12K mini split

The pairing is practical. The liquid line OD supports the high-pressure liquid side, and the suction OD helps return vapor toward the compressor under normal run lengths. They line up best when the project sits inside that capacity band.

Best application scenarios

This is a good fit for jobs where the load is modest, the layout is compact, and installers need routing flexibility.

You’ll see it often in:

● Single bedroom mini split installs

● Small office cooling units

● Projects where routing through wall penetrations needs to stay clean and manageable

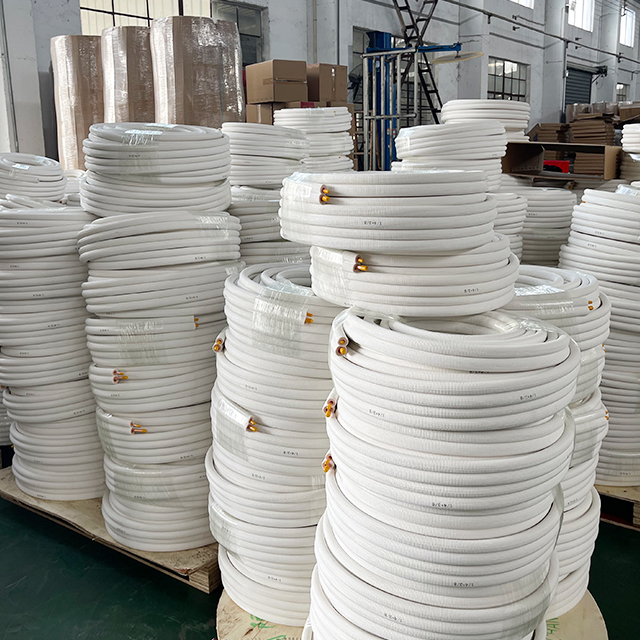

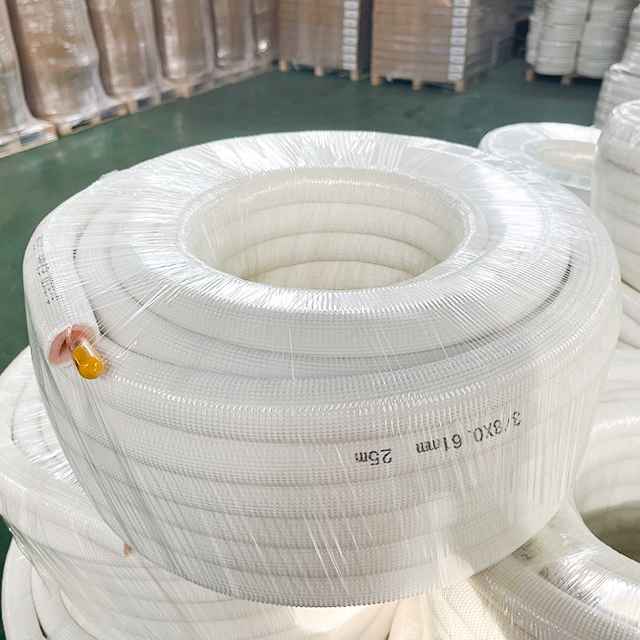

If your supplier offers pre-insulated, coiled line sets, you also reduce on-site wrapping time. That’s not just convenience; it helps keep insulation coverage consistent across the run.

Practical install considerations

Size alone won’t save you if the install details are off. This is where callbacks start. Wall penetrations, bends, and insulation handling are the usual trouble spots, especially around suction lines.

Routing through wall penetrations sounds simple, but it’s where kinks and compressed insulation can sneak in. They need coverage, not shortcuts. Keep the line set positioned cleanly, and don’t crush the foam at bends where stress concentrates.

Before finalizing your spec, run this must-verify list:

● Confirm equipment manual pipe size

● Don’t rely only on tonnage; the unit’s designated diameters drive the correct copper line set selection.Confirm insulation is rated and installed correctly

● Insulation should match the system environment and stay continuous, especially on the suction line where condensation risk exists.Confirm actual line length before final spec

Even in the 9K/12K range, longer runs can push the system toward efficiency issues, so you want the final decision aligned to the real job length.Many B2B teams also prefer suppliers that can back up consistency—stable production and clear documentation make it easier to source the right OD pairing every time. That matters when you’re installing more than one unit and can’t afford “close enough.”

Copper Line Set Size Deep Dive #2 — 1/4 × 1/2

If your COPPER LINE SET is 1/4 × 1/2, you’re in the middle tier where many residential jobs live. It’s a common pick when the system needs a bit more capacity than the smallest mini-splits, but installers still want practical routing.

OD breakdown for 1/4 × 1/2

People often read the first number and ignore the second. Don’t. The paired OD values control fit, matching, and how the system manages refrigerant flow on both sides.

Liquid side and suction side work together. If the OD pairing is wrong, connections may still mate, yet they won’t match the designed behavior of the unit and expansion valve.

Typical capacity match (what it’s usually built for)

This size fits a clear band: mid-range systems that are powerful enough for bigger rooms. In many product catalogs, you’ll see it tied to 12K and 18K class units.

Most 1/4 × 1/2 COPPER LINE SET builds target:

● 1.5–2.0 TON

● 12000–18000 BTU

● Common labels: 12K / 18K

That mapping helps buyers choose fast. Still, the equipment manual overrides everything. If the unit calls for a specific diameter pairing, they mean it.

Why the larger suction line helps (especially for longer runs)

The 1/2" suction line is wider than the 3/8" version. Wider doesn’t just mean “bigger copper.” It affects how the suction line behaves under real job conditions.

Here’s the reader-friendly logic:

● It helps manage friction and pressure drop along the suction line, especially when the run length grows.

● It supports correct vapor velocity for oil return, so oil can travel back toward the compressor as expected.

When installers stretch distances, suction side conditions matter more. That’s one reason 1/4 × 1/2 often shows up when a job isn’t short and tidy.

Installation + insulation reminders buyers should not skip

A properly sized COPPER LINE SET can still fail if insulation is handled loosely. Condensation control is not optional, and it matters most on the suction line.

Minimum reminders:

● Insulation is mandatory, not “recommended.”

● Use insulation designed for -40℃ to 120℃ operating environments, because sites swing between cold startup and hot running conditions.

● If the system is a heat pump, both lines can be impacted by temperature shifts, so follow the equipment requirement instead of assuming one universal rule.

Brand capability example (smoothly relevant to buying insulation-ready sets): DABUND PIPE develops insulation pipes engineered for fire resistance and high/low temperature performance in the -40℃ to 120℃ range, which aligns with the kind of installation conditions buyers repeatedly face across commercial and residential projects.



Copper Line Set Size Deep Dive #3 — 3/8 × 5/8

When the job needs more capacity, the COPPER LINE SET size often steps up to 3/8 × 5/8. This one is for heavier refrigerant flow and bigger indoor zones. It’s also the size where installers notice spacing and insulation details more quickly.

OD breakdown for 3/8 × 5/8

This size is defined by the matched OD pairing. Liquid and suction sides both matter, even if connections look “similar” on the outside.

Liquid line OD (3/8) supports the high-pressure liquid delivery. Suction line OD (5/8) is wider, so vapor side behavior stays more stable in real installations. That stability is part of why this size shows up in larger systems.

Typical capacity match for 3/8 × 5/8

In product specs, this pairing usually aligns with higher tonnage. Buyers commonly see it labeled for 36K and 48K class units.

Most 3/8 × 5/8 COPPER LINE SET builds target:

● 3.0–4.0 TON

● 36000–48000 BTU

● Common labels: 36K / 48K

You’ll also see it chosen when projects involve open layouts or multiple indoor areas served by one outdoor unit. The size isn’t random; it’s built around what the system expects on both liquid and suction sides.

Best application scenarios (where it fits naturally)

This size isn’t usually for tiny bedrooms. It’s more about setups that need solid cooling performance without stretching installs too far.

Typical scenarios:

● Open-concept living rooms where the load can be uneven across space

● Small retail shops where airflow and runtime can be longer than you’d expect

● Multi-room single outdoor unit mini split, where coordination across rooms matters

These projects tend to push refrigerant flow demands, so the wider copper geometry helps the system stay within its intended operating window.

Practical install considerations that matter in the field

Bigger OD copper can feel “heavier,” but the real issue is control—routing and insulation must be right from day one. If they’re sloppy, call-backs show up faster on larger systems.

Focus points installers check:

● Correct bending/routing radius (keep it practical and avoid tight kinks)

● Correct insulation thickness for the climate and the installation method

Also, plan the physical path. Larger copper lines need more space for bending and for a clean pass through wall sleeves. Insulation thickness should match local temperature swings, not just “what was used last time.”

In procurement terms, many buyers prefer insulated line set packages that keep foam coverage consistent from coil to coil. It reduces the chance that insulation is stretched, compressed, or cut too short on the suction side during installation.

Capacity Matching Guide

Getting the right COPPER LINE SET size is less about guessing and more about matching what the equipment was designed to use. When buyers skip steps, they usually don’t notice the issue until performance feels “off” or service calls start. This guide keeps it practical, step by step.

Step 1 — Start from the unit model specs

Most problems begin here: someone sees “12K” on a sticker and picks a pipe set that “seems close.” We don’t do that. The unit manual is the first authority, because it names the required pipe diameter pairing and capacities the system is built around.

Do these checks in order:

● Use the equipment manual to identify the required line set pipe size.

● Tie capacity (BTU/TON) to the correct pipe combination the manufacturer expects.

● Record what the unit specifies before ordering a COPPER LINE SET batch.

A simple capacity map helps teams align fast. Here’s the typical relationship covered in this article topic:

Step 2 — Validate the liquid/suction pairing (OD must match)

Now comes the part people underestimate: the OD pairing. First OD is liquid line, second OD is suction line. If either side is off, the connection may still look “compatible,” yet the system behavior changes.

Why close-enough by sight is a risk:

● It can mismatch how refrigerant flows across liquid and suction conditions.

● It can affect pressure characteristics and the oil return balance.

● It can push the compressor into an operating condition it wasn’t designed for.

A buyer’s rule: confirm the actual OD for both sides before shipment. We’ve seen situations where the tubes “fit,” but installers later discover the unit spec wanted the other suction OD.

Step 3 — Consider insulation type + thickness for your climate

Once OD pairing is right, insulation must do its job. This is where condensation control and thermal loss are won or lost. On suction lines, insulation isn’t optional; it’s part of keeping the system stable.

Use insulation that matches your environment:

● Black closed-cell rubber foam

● White embossed polypropylene foam

● Thickness options often selected from the field: 8mm / 9mm / 10mm / 13mm / 19mm / 25.4mm

Key purpose, said plainly:

● Prevent condensation and dripping on the suction side.

● Reduce thermal loss so the refrigerant cycle stays consistent.

DABUND PIPE is relevant here because it develops insulation pipes with fire resistance and high/low temperature performance for operating conditions around -40℃ to 120℃—exactly the kind of range buyers care about when projects swing between cold starts and hot running.

Step 4 — Factor in actual line run length

Even with the perfect COPPER LINE SET size, line length can change how the system performs. Longer runs introduce friction loss, and friction loss doesn’t negotiate.

What can happen when the run exceeds manufacturer guidance:

● The system may need changes such as upsizing the suction line.

● Refrigerant charge adjustments may be required using an ounces-per-foot logic.

● The final spec should follow the designed specification, not just “what usually works.”

Before you lock the PO, measure the real indoor-to-outdoor run. Then make sure your chosen copper line set size aligns with both OD pairing and the expected length behavior.



FAQ

Q: Are COPPER LINE SET sizes the same across all AC/heat pump brands?

A: No. Always follow the unit’s manual and the designated OD pairing.

Q: Can I substitute 1/4 × 1/2 for a unit that calls for 1/4 × 3/8?

A: Don’t assume “close.” OD pairing must match; wrong size can hurt efficiency and reliability.

Q: Does insulation matter more than copper size?

A: Both matter. Insulation is mandatory, especially on the suction line, to prevent condensation and heat loss.

Q: What happens if the COPPER LINE SET is too small?

A: Refrigerant flow and oil return can be unbalanced, raising compressor stress and performance issues.

Q: How does line length change the setup?

A: Longer runs add friction loss. The manufacturer may require upsizing suction line or adjusting refrigerant charge.
