AC Line Set Insulation Guide: How To Stop Condensation, Heat Gain, And Energy Loss

A small split in pipe insulation can create a surprisingly large moisture problem. It also lets unwanted heat enter the refrigeration cycle.

Your AC LINE SET needs continuous, correctly sized insulation and a reliable vapor seal. This guide explains condensation, line selection, materials, installation, outdoor protection, and repair. You will learn how to protect system performance without relying on one-size-fits-all advice.

Why AC Line Set Insulation Controls Condensation and Heat Gain

An AC line set connects the indoor evaporator and outdoor condenser. Its two copper tubes move refrigerant through different stages of the cooling cycle. The larger suction line usually returns cool vapor to the compressor. The smaller liquid line commonly sends warm, high-pressure liquid toward the indoor unit.

Condensation Begins at the Dew Point

Warm air can hold water vapor. When it touches a surface below its dew point, that vapor becomes liquid water. A cold, bare suction line therefore “sweats” much like an iced drink. The water may stain ceilings, wet drywall, support mold, or encourage corrosion beneath damaged insulation.

Insulation performs two connected jobs. First, it slows heat movement into the cold refrigerant. Second, its vapor-resistant outer layer blocks humid air from reaching the copper. Thick foam cannot control condensation if every seam remains open.

Heat Gain Becomes an Operating Penalty

The suction line should deliver cool vapor back to the compressor under the conditions intended by the equipment designer. Exposed copper absorbs attic, wall-cavity, or outdoor heat. This added heat can reduce usable cooling performance and make the system work harder.

Long runs and hot outdoor routes increase the exposure. However, insulation alone cannot correct an oversized line, excessive run length, bad refrigerant charge, or poor installation. Those conditions need a qualified technician.

The U.S. Department of Energy’s Building America Solution Center recommends examining refrigerant-line insulation annually. That simple check often finds damage before water reaches finished surfaces.

Which Refrigerant Lines Need Insulation?

The safest answer comes from the equipment installation manual. System architecture decides which tube stays cold, not its appearance alone. Rules copied from another air conditioner can be wrong for a mini-split or heat pump.

Conventional Split Air Conditioners

In many central air-conditioning systems, the expansion device sits near the indoor coil. The large suction line then carries cool vapor outdoors and requires continuous insulation. The smaller liquid line remains warmer, so designers often leave it bare.

This common arrangement explains the familiar advice to “insulate the big line.” It is useful, but incomplete. Ambient conditions and equipment design can create exceptions. A liquid line passing through an extremely hot attic may also need thermal protection when the manufacturer specifies it.

Mini-Splits and Heat Pumps

Many ductless systems require both refrigerant tubes to be insulated separately. Operating modes and expansion-device placement can change line temperatures. During heating, the thermal roles may also differ from cooling operation.

Use this decision sequence:

1. Identify the exact indoor and outdoor model combination. Read its piping section, including thickness and temperature requirements.

2. Confirm which lines require insulation in every operating mode. Do not assume pipe diameter gives the full answer.

3. Insulate required tubes separately unless the manufacturer approves a shared assembly. Separate coverage limits line-to-line heat transfer.

4. Continue insulation through wall penetrations and connection areas where permitted. Keep required service access available.

For contractors and distributors, a factory pre-insulated AC LINE SET can reduce field seams and inconsistent coverage. DABUND lists HVAC line sets using ASTM B280 and C12200 copper in multiple diameters and lengths. Buyers should still match tube size, insulation wall, refrigerant, code, and equipment instructions before ordering.

Never hide a flare joint before pressure testing, leak checking, and completing the required inspection. Insulation is thermal protection, not a substitute for a sound refrigerant connection.

How to Choose the Right Insulation Material and Thickness

Good refrigerant line insulation must resist heat flow and moisture entry. It also needs enough flexibility for bends and enough durability for the installation environment. Household pipe wrap or open-cell packing foam rarely provides the dependable vapor control required on cold HVAC tubing.

Compare Common Closed-Cell Options

Closed-cell construction matters because interconnected pores can absorb moisture. Once insulation becomes wet, its thermal performance declines. Trapped moisture may also support corrosion beneath the covering.

Changzhou DABUND Pipe Co., Ltd. states that it has produced HVAC parts since 2008. Its insulated copper products include closed-cell insulation options, several wall thicknesses, and UV-resistant specifications. Project buyers should verify the applicable test data and submittals for the exact product, rather than applying one model’s claims to every line set.

Thickness Depends on Actual Conditions

There is no honest universal thickness for every AC LINE SET. A humid coastal installation demands more condensation control than a short indoor run in dry air. The calculation should consider:

● Refrigerant line temperature and tube diameter;

● Highest expected ambient temperature and relative humidity;

● Indoor, attic, wall, underground, or outdoor routing;

● Insulation thermal conductivity and water-vapor permeability;

● Required energy code, mechanical code, and equipment instructions.

The selected thickness should keep the insulation’s outer surface above the design dew point. It must also satisfy the manufacturer and local code. Use an insulation manufacturer’s condensation-control calculator or a qualified HVAC designer for severe conditions.

Fire, smoke, mold-resistance, and temperature ratings also matter. Verify current certificates instead of accepting a general “HVAC grade” label. Outdoor foam needs compatible jacketing or coating because UV resistance does not mean unlimited sunlight exposure.

How to Install and Seal AC Line Set Insulation

Installation quality often matters as much as the material. A small gap at a flare nut can admit humid air behind several feet of otherwise sound foam. Plan the insulation path before connecting equipment, especially through sleeves or tight wall cavities.

Prepare and Fit the Insulation

Start only after the tubing is clean, dry, leak-free, and properly supported. Measure the copper’s outside diameter. Select insulation with the correct inside diameter, avoiding both loose gaps and foam compression.

Use long, continuous pieces wherever practical. Stagger insulation joints between adjacent tubes. Make smooth miters or fitted cuts at elbows instead of crushing the foam around sharp bends. Never place supports directly against bare cold copper when the specification requires a continuous thermal break.

Seal Every Vapor Entry Point

Apply the insulation manufacturer’s approved adhesive, sealant, or tape. Close longitudinal seams fully. Butt adjoining sections together without stretching them, then seal the joint around its complete circumference.

Pay special attention to:

● Flare nuts, valves, reducers, and irregular fittings;

● Wall sleeves and transitions into line-hide covers;

● Hangers, clamps, and points where cable ties compress foam;

● Terminations near indoor and outdoor units.

Avoid ordinary cloth duct tape. Its adhesive can dry, lift, and admit moisture. Over-tight cable ties also create thin cold bands where condensation begins.

Protect the Outdoor Run

Sunlight, rain, birds, rodents, landscaping tools, and roof work can damage exposed insulation. Use a compatible UV-resistant coating, weatherproof jacket, or purpose-built line-set cover. Seal the top of vertical coverings while allowing drainage according to the system design.

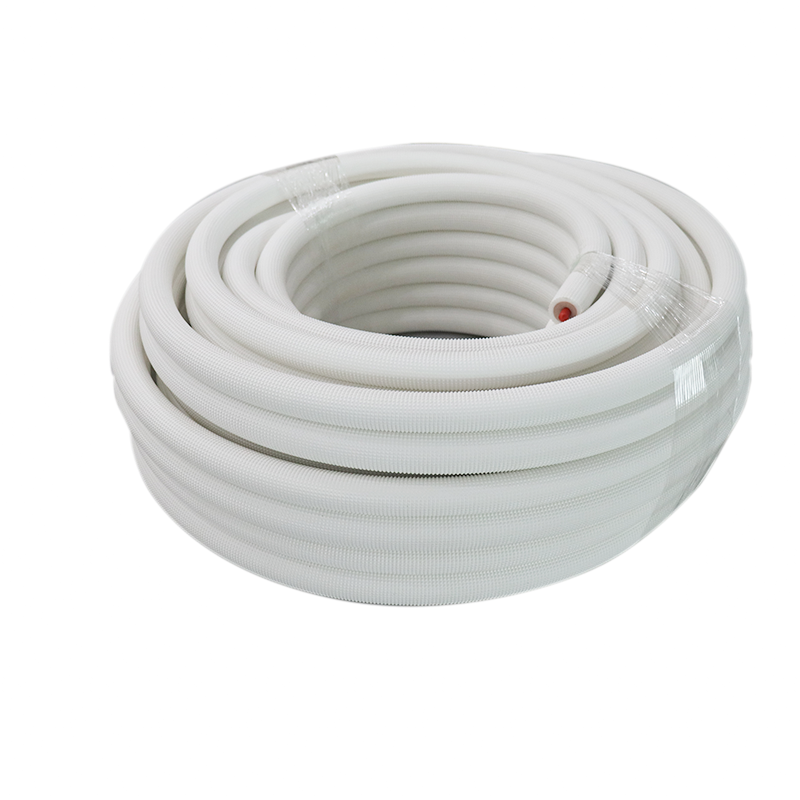

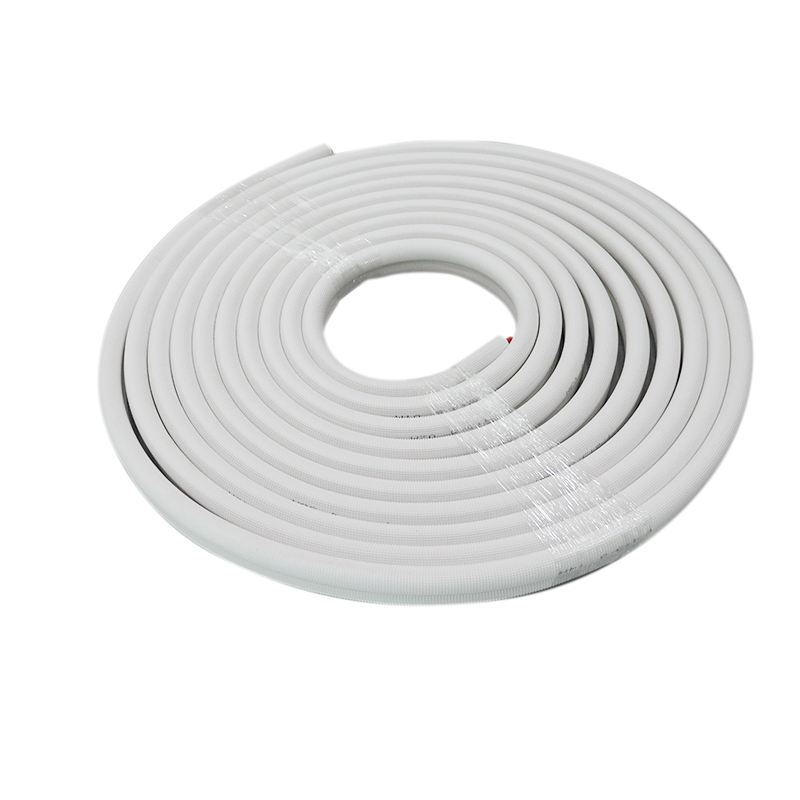

DABUND offers pre-insulated copper line-set configurations in multiple sizes for ductless, heat-pump, and central applications. Buyers can review its insulated AC line-set options and request the exact dimensional and compliance documents needed for a project.

Before startup, inspect the complete route. Confirm there is no exposed cold copper, open seam, crushed section, or unprotected outdoor foam.

Inspection, Repair, and Troubleshooting

Inspect accessible line-set insulation at least once each year. Add checks after storms, pest activity, roofing, siding, painting, or equipment service. These jobs frequently disturb outdoor coverings and wall penetrations.

A Fast Inspection Checklist

Look for splits, gaps, powdery surfaces, brittle foam, missing tape, tooth marks, water staining, or dark moisture tracks. Gently check hidden undersides near fittings. Verify that insulation has not pulled away from the air handler or outdoor service valves.

Replace a damaged section when it is wet, hardened, crushed, or extensively degraded. A surface wrap over saturated foam traps the problem. Cut back to dry, sound insulation, match the original dimensions and performance, then seal both butt joints completely.

Know When Insulation Is Not the Root Cause

Water near an indoor unit may come from a blocked condensate drain, cracked drain pan, frozen coil, or poor unit pitch. Oil residue around a refrigerant fitting can indicate a leak. Insulation will not repair either issue.

Call a licensed HVAC technician when you see ice, oily staining, damaged copper, repeated sweating after repair, or declining cooling capacity. Refrigerant circuits require proper recovery, pressure testing, evacuation, and charging procedures.

For routine insulation repair, preserve the vapor barrier from end to end. Then monitor the area through a complete cooling cycle. Dry outer surfaces and stable room conditions provide a better check than appearance immediately after installation.

Conclusion

Effective AC LINE SET insulation combines correct material, adequate thickness, sealed joints, and outdoor protection. It controls condensation by keeping humid air away from cold copper. It also limits heat gain and avoidable energy loss.

Follow the equipment manual, inspect coverage yearly, and replace wet or brittle foam. When icing, leaks, or poor cooling continue, ask a qualified HVAC technician to diagnose the system.
