What Comes in An AC Installation Kit? Complete Parts Checklist for Mini Split Installation

One missing fitting can stop an entire mini split installation.

An AC installation kit combines the main parts connecting indoor and outdoor units. However, package contents vary between suppliers, models, and installation types.

This guide explains every common component, its purpose, and which accessories usually require separate purchasing. It also covers line set sizing, compatibility, tools, and safety checks.

AC Installation Kit Parts Checklist

A standard AC installation kit connects the indoor air handler to the outdoor condenser. It usually manages refrigerant flow, condensate drainage, communication, and wall penetration.

The following checklist covers the most common components:

Kit contents are not standardized. One package may provide only a line set, wire, and drain hose. A complete mini split installation kit may also include finishing accessories.

The Split AC Installation Kit Manufacturer from DABUND includes insulated copper pipes, flared ends, nuts, drain components, control wire, and selected fixing accessories. Specific contents still depend on the ordered model.

Before purchasing, compare the packing list against the equipment installation manual. Confirm the quantity for every indoor unit in a multi-zone system.

A “complete kit” usually means complete connecting materials. It rarely includes the air conditioner, professional tools, electrical protection, or outdoor mounting equipment.

Pre-Insulated Copper Line Set and Flare Fittings

The copper line set is the most important part of an AC installation kit. It contains two tubes serving different refrigerant functions.

The smaller liquid line carries high-pressure liquid refrigerant. The larger suction line returns low-pressure vapor toward the compressor.

Both tubes should have the correct outside diameter. An incorrect diameter can restrict refrigerant flow, disturb oil return, and reduce system performance.

Common Mini Split Line Set Sizes

These combinations are general references. Always follow the sizes listed for the exact equipment model.

A quality pre-insulated copper line set should provide:

●  Clean, round tubing without crushed sections or visible damage

●  Continuous insulation covering both refrigerant lines

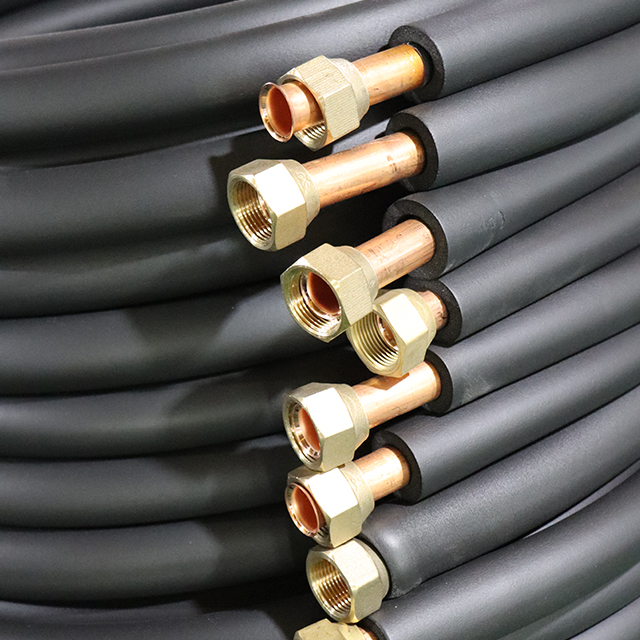

●  Correctly formed flare ends and matching brass flare nuts

●  Sealed tube ends preventing moisture or debris contamination

●  Enough length for bends, connections, and equipment clearances

A 10 ft 3/8″ x 5/8″ Mini Split Installation Kit – Pre-Insulated HVAC Copper Line Set with Drain Hose & Accessories from DABUND uses 99.9% C12200 copper tubing made to ASTM B280 requirements. It offers white PE or black rubber insulation, factory flaring, and multiple thickness options.

Standard lengths often include 10, 15, 20, 25, and 50 feet. Measure the entire route before ordering. Include vertical rises, wall thickness, service loops, and gentle bends.

An AC installation kit does not normally contain refrigerant. The outdoor unit may arrive pre-charged for a defined line length. Longer routes may require an adjusted charge.

Drain Hose, Communication Wire, and Wall Accessories

The smaller components deserve careful attention. They prevent water damage, wiring faults, and exposed wall openings.

Condensate Drain Hose

The indoor evaporator produces water during cooling. The condensate drain hose carries this water outdoors or toward an approved drain.

It should maintain a continuous downward slope. Sags, uphill sections, or tight bends can trap water and cause indoor leakage.

Check the hose diameter and included length. A short drain hose may require an extension and secure coupling. Installations without gravity drainage may need a separate condensate pump.

Communication or Control Wire

Communication wire connects the indoor and outdoor units. It may carry control signals, power, or both, depending on system design.

Do not assume every supplied cable matches every mini split. Verify these details:

●  Number of conductors

●  Wire gauge

●  Voltage rating

●  Cable length

●  Terminal arrangement

●  Indoor or outdoor exposure rating

The communication cable is different from the main power supply. Breakers, disconnects, conduit, and electrical whips are commonly purchased separately.

Wall and Finishing Accessories

A wall sleeve protects refrigerant pipes, wiring, and drainage lines passing through masonry or framing. It also reduces abrasion around sharp wall edges.

A decorative wall cover closes the outside opening. Sealing putty blocks water, insects, and uncontrolled air movement.

Finishing tape holds the insulated copper lines, drain hose, and wire together. Cable ties, clips, anchors, nails, and double-sided pads may also appear in the package.

A line set cover is usually a separate product. It provides stronger protection against sunlight, weather, and physical damage. It also produces a cleaner exterior appearance.

Check every accessory before installation begins. Small shortages often create long delays on remote jobsites.

What Is Usually Not Included in an AC Installation Kit?

“Complete” does not mean the package contains everything required onsite. It usually describes the connection kit, not the entire installation system.

Installers may also need a drill, level, hole saw, tubing cutter, deburring tool, and pipe bender. Refrigerant work requires more specialized equipment.

Common HVAC tools include a torque wrench, vacuum pump, micron gauge, manifold gauge, nitrogen regulator, and electronic leak detector. These items should not be expected inside a standard mini split installation kit.

The outdoor condenser is often factory-charged for a limited pipe length. However, the copper lines still contain air and moisture before connection. Standard systems require proper evacuation before refrigerant release.

In the United States, the Homeowners and Consumers: Frequently Asked Questions requires Section 608 certification for work capable of opening the refrigerant circuit. This includes connecting certain pre-charged lines or modifying refrigerant tubing.

Professional installation also protects equipment performance. Ductless Heating & Cooling working with an installer experienced in ductless mini split systems.

Local electrical, mechanical, and building codes may add further requirements. Check them before purchasing electrical protection or mounting equipment.

How to Choose the Correct AC Installation Kit

Begin with the installation manual for the exact indoor and outdoor unit combination. Similar BTU ratings can still require different pipe sizes or connections.

Use this buying checklist before placing an order:

1. Confirm the copper pipe diameters. Check both liquid and suction line specifications. Never select them from BTU capacity alone.

2. Measure the complete route. Include bends, wall depth, vertical rises, service space, and outdoor unit placement.

3. Check permitted line lengths. Equipment manuals specify minimum and maximum distances. They may also state additional refrigerant requirements.

4. Review insulation performance. Outdoor routes need UV-resistant and weather-resistant insulation. Humid environments may require thicker closed-cell insulation.

5. Verify the flare connections. Flare sizes, nut threads, and connection methods must match the equipment service ports.

6. Check the wire specification. Confirm conductor count, gauge, voltage rating, and outdoor suitability.

7. Compare every included accessory. Review drain hose length, wall sleeve size, tape, ties, covers, and sealing materials.

8. List separately sourced items. Add the condenser base, line set cover, electrical disconnect, surge protection, and required tools.

Changzhou DABUND Pipe Co., Ltd. has manufactured HVAC&R installation components since 2008. Its Dabund Pipe lists copper line sets from 1 to 50 meters, alongside drain hoses, brackets, insulation, pumps, and outdoor unit bases.

For distributors and project buyers, customized packaging can simplify procurement. Useful options include custom line lengths, insulation colors, printed specifications, and matched accessory quantities.

Never rely only on a product title saying “universal.” Compatibility depends on pipe diameter, refrigerant design, connection type, line length, insulation, and electrical requirements.

Photograph and count the kit contents after delivery. Keep flare ends sealed until connection, and store copper tubing away from moisture.

Conclusion

A complete AC installation kit usually contains insulated copper lines, flare nuts, communication wire, drainage parts, and wall accessories.

However, electrical protection, mounting equipment, refrigerant tools, and line set covers often require separate purchasing.

Check the equipment manual, packing list, pipe dimensions, and installation route. A correctly matched kit prevents missing parts, delays, leaks, and avoidable system problems.

FAQs About AC Installation Kits

Q: What normally comes in an AC installation kit?

A: Most kits include a pre-insulated copper line set, flare nuts, communication wire, condensate drain hose, and wall sleeve. Some packages also provide a decorative cover, wrapping tape, cable ties, fixing hardware, and sealing putty. Always check the exact packing list.

Q: Does an AC installation kit include refrigerant?

A: No. The installation kit normally contains connecting materials, not refrigerant. Many outdoor units arrive factory-charged for a specified line length. Longer installations may require additional refrigerant according to the equipment manual.

Q: Are mini split installation kits universal?

A: No kit is completely universal. The pipe diameters, line length, flare connections, wire specification, insulation, and refrigerant compatibility must match the equipment. Confirm every requirement using the model-specific installation manual.

Q: How long should the copper line set be?

A: Choose a length slightly longer than the measured installation route. Include bends, wall thickness, vertical distance, and service space. Avoid unnecessary excess tubing, and never exceed the equipment manufacturer’s maximum permitted length.

Q: Does the kit include an outdoor condenser bracket?

A: Usually not. Wall brackets, condenser pads, ground stands, and vibration pads are commonly sold separately. Select the mounting method according to condenser weight, climate, wall structure, drainage, and local code requirements.

Q: Can a homeowner install a mini split using the kit?

A: Some preparation and mounting work may be suitable for experienced homeowners. Refrigerant circuit connections, evacuation, charging, and electrical work require specialized tools and may require licensed professionals. Always follow equipment instructions and local regulations.
