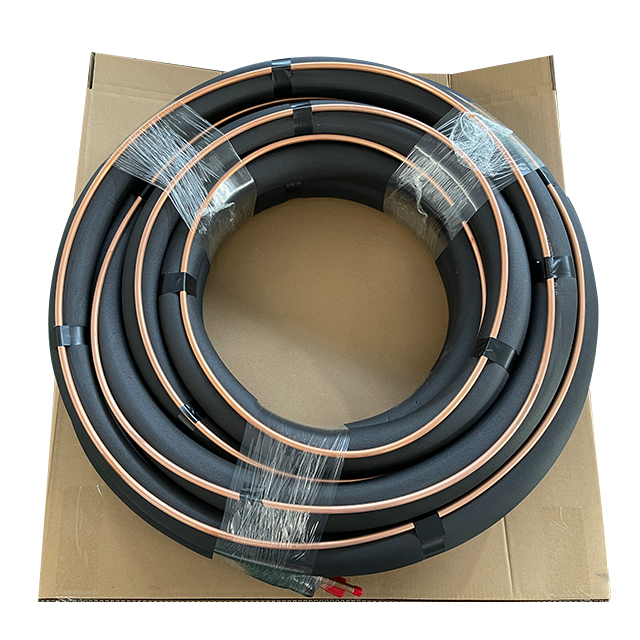

100 ft Insulated Copper Line Set for HVAC Systems
Looking for a reliable 100 ft mini split line set for extended HVAC installations? This 1/4" x 3/8" insulated copper line set is designed for efficient refrigerant transfer, high pressure resistance, and long-distance performance.
Perfect for mini split air conditioners, heat pumps, and residential HVAC systems, this line set ensures stable operation even in complex layouts.
This mini split line set includes two copper tubes (liquid line + suction line) pre-insulated for improved efficiency and faster installation.
Manufactured from 99.9% pure copper (C12200) and compliant with ASTM B280, it delivers excellent thermal conductivity and corrosion resistance—critical for long-term HVAC reliability.
Key Features of 1/4" x 3/8" x 100 ft Mini Split Line Set for HVAC Systems

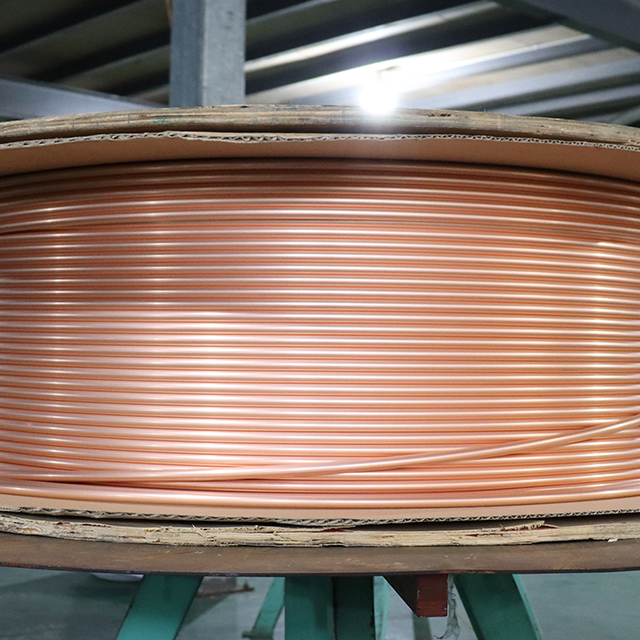

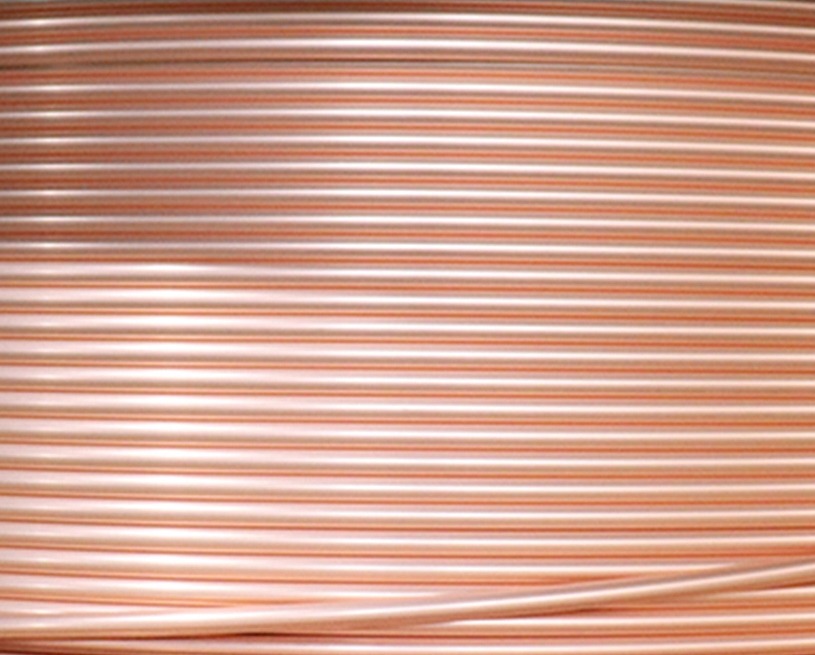

High-Purity 99.9% Copper for Maximum Efficiency
Premium copper ensures:
Superior heat transfer Reduced energy loss Long service life
Think of it as a high-speed pipeline for refrigerant flow.
Professional drivers
Built to meet international HVAC standards:
ASTM B280 refrigeration copper tubing C12200 DHP copper grade
Ensuring safe and durable operation in HVAC systems.
High Pressure Rating (2100–7000 PSI)
Supports modern refrigerants such as:
R410A R32
With pressure capacity far exceeding standard requirements—ensuring leak-free performance.
100 ft Long Line Design for Flexible Installation
This extended length is ideal for:
Long-distance indoor-to-outdoor connections Multi-room setups Complex building layouts
Perfect when installation flexibility is essential.
Standard Size for Small HVAC Systems
Liquid Line: 1/4" (6.35 mm)
Suction Line: 3/8" (9.52 mm)
Commonly used for: 9,000 – 12,000 BTU mini split systems

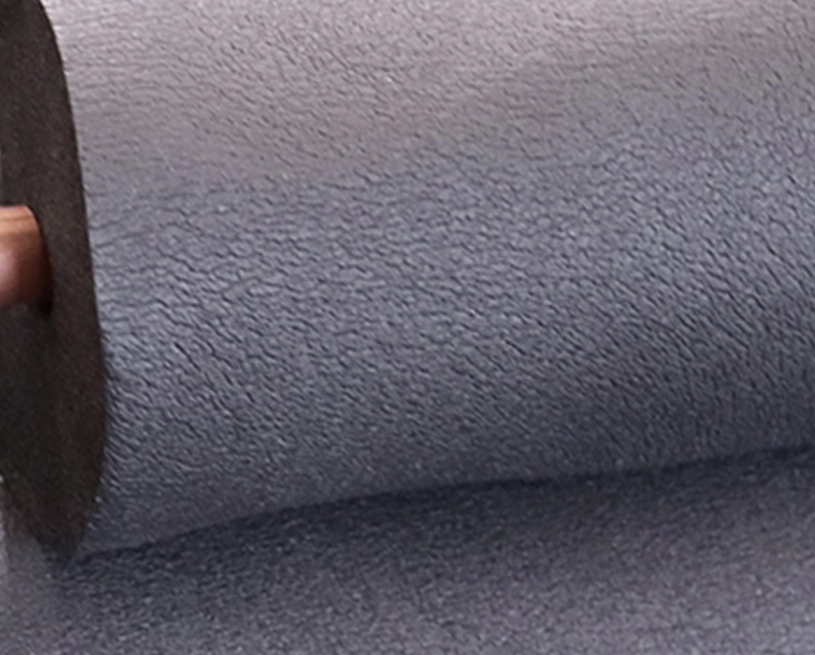

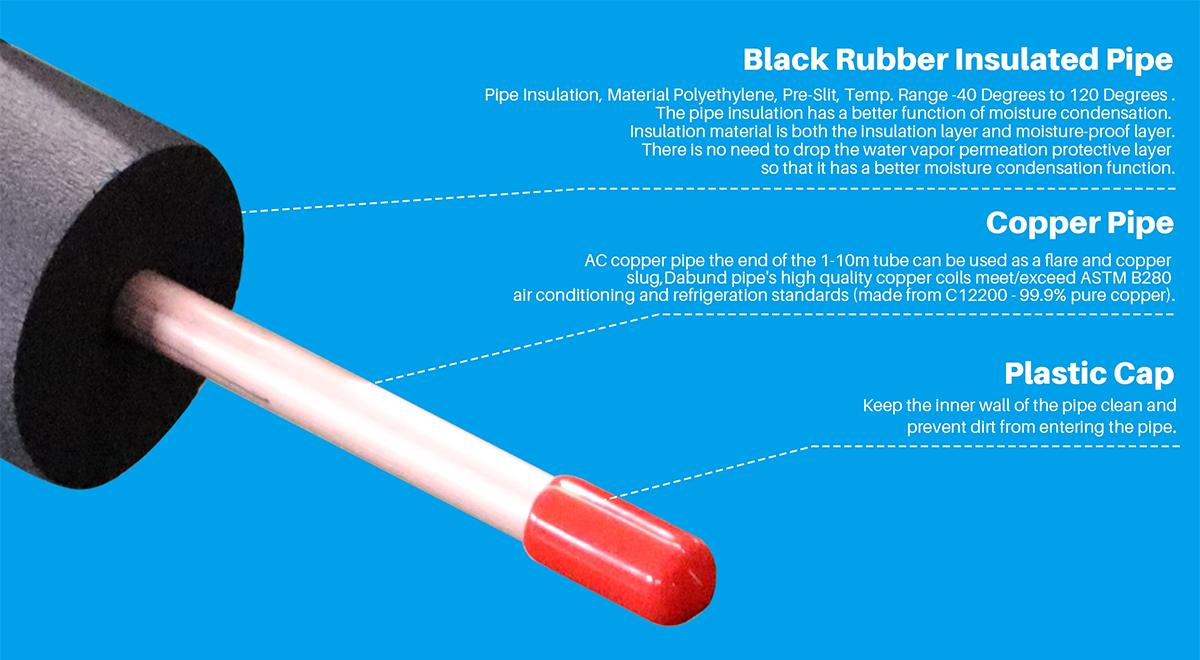

Features of pipe insulation tubing
Pipe Insulation, Material Black Rubber, Temp Range -40 Degrees to 120 Degrees.
The pipe insulation has a better function of moisture condensation. Insulation material is both the insulation layer and moisture-proof layer.
There is no need to drop the water vapor permeation protective layer so that it has a better moisture condensation function.

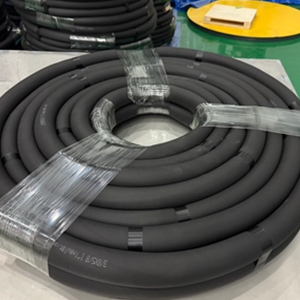

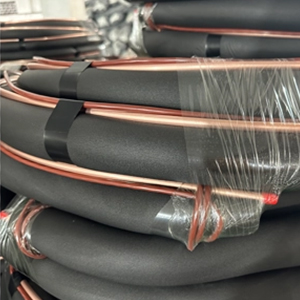

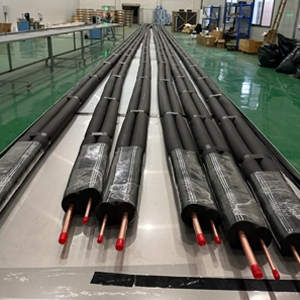

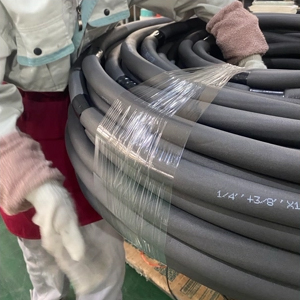

Detail of 1/4" x 3/8" x 100 ft Mini Split Line Set for HVAC Systems
Advanced Insulation Technology for Maximum Performance
UV-Resistant & Flame-Retardant Insulation
The insulation meets:
ASTM E84
UL94
ASTM D1056
ASTM G21
Operating temperature range: -40°C to 120°C, suitable for indoor and outdoor installations.
3-Layer Insulation Structure
Outer Layer: UV-resistant embossed PE film (anti-aging & wear-resistant)
Middle Layer: IXPE foam (thermal barrier, impact resistant)
Inner Layer: Closed-cell insulation (airtight & moisture-proof)
Works like a thermal armor, protecting system efficiency over time.
Condensation & Energy Loss Prevention
This insulation system:
Prevents moisture buildup
Reduces heat transfer loss
Improves overall HVAC efficiency
Result? Lower energy consumption and longer system lifespan.

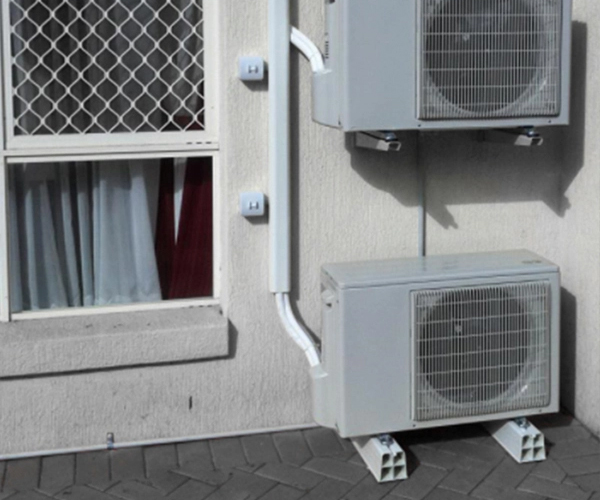

Ductless Mini Split Air Conditioners
Ideal for residential installations requiring long pipe runs.

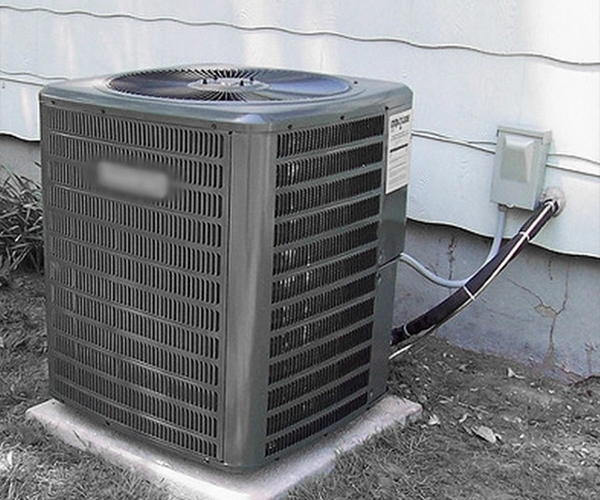

Heat Pump Systems
Supports both heating and cooling cycles efficiently.

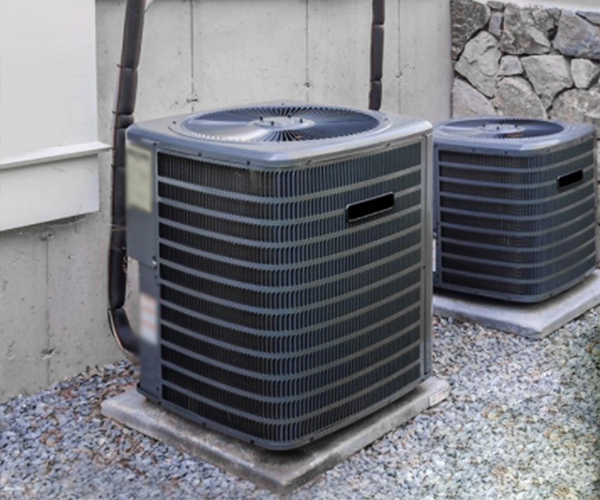

Residential & Light Commercial HVAC
Suitable for:
Homes
Offices
Small commercial buildings
Compatible with most HVAC systems and refrigerants.
Technical Specifications of 1/4" x 3/8" x 100 ft Mini Split Line Set
| Product Name | Mini Split Line Set |
| Size | 1/4" + 3/8" |
| Length | 100 ft (30 m) |
| Material | 99.9% Pure Copper |
| Standard | ASTM B280 / C12200 |
| Pressure Rating | 2100–7000 PSI |
| Temperature Range | -40°C to 120°C |
| Insulation | UV-resistant PE / IXPE Foam |
| Application | HVAC & Refrigeration Systems |
Data of Mini Split Line Set
| Size | Length | Insulation Black Rubber | Flame Resistant |
| 1/4+3/8 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 1/4+1/2 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 1/4+5/8 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 3/8+5/8 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 3/8+3/4 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 1/2+3/4 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| 3/8+7/8 | 15m/20m/25m/30m/50m | 8mm/9mm/10mm/13mm/19mm/25.4mm | M1/B1 |
| Size | Used for | Size | Used for |
| 1/4 + 3/8 AC line set | 0.75TON - 1.0TON mini split air conditioner | 1/4 + 3/8 Mini split line set | 9000BTU and 12000 BTU split air conditioner |
| 1/4 + 1/2 Mini split line set | 1.5TON - 2.0TON mini split air conditioning | All copper line set 1/4 + 1/2 | 12000 BTU and 18000 BTU mini split air conditioners |
| 1/4 + 5/8 Copper line set | 2.0TON - 2.5TON split air conditioner system | 1/4 + 5/8 Insulated copper line set | 24000 BTU and 30000 BTU air conditioner system |
| 3/8 + 5/8 Insulated copper tube | 3.0TON - 4.0TON ductless mini split air conditioner | 3/8 + 5/8 Mini-split line set | 36000 BTU and 48000 ductless air conditioner |
| 3/8 + 3/4 Insulated copper tubing | 4.5TON - 6.0TON split air conditioner installation | 3/8 + 3/4 Mini split line set | 54000 BTU and 72000 split air conditioner installation |
| 3/8 + 7/8 Insulated copper piping | 6.0TON - 8.0TON ductless mini split air conditioner | 3/8 + 7/8 Insulated copper pipe | 72000 BTU - 96000 BTU ductless mini split air conditioner |
| Air conditioning copper line sets 1/4 + 3/8 | 0.75P and 1P split air conditioning | Aircon copper line set 1/4 + 3/8 | 9K and 12K split air conditioner |
| Copper pipe kit 1/4 + 1/2 commonly | 1.5P and 2P mini split air conditioners | Copper line set 1/4 + 1/2 | 12K and 18K mini split air conditioners |
| 1/4 + 5/8 Line set for mini split | 2P and 2.5air conditioner system | 1/4 + 5/8 Insulated copper line set | 24K and 30K air conditioner system |
| 3/8 + 5/8 Mini-split copper line set | 3P and 4P ductless mini split air conditioner | 3/8 + 5/8 Mini-split line set | 36K and 48K ductless air conditioner |
| 3/8 + 3/4 Copper pipe kit | 4.5P and 6P split aircon installation | 3/8 + 3/4 Mini split line set | 72K split air conditioner installation |
| 3/8 + 7/8 Insulated copper piping | 6P - 8p TON ductless mini split air conditioner | 3/8 + 7/8 Insulated copper piping | 72K - 96K ductless mini split air conditioner |
Why Choose This Mini Split Line Set from a Professional Supplier?
15+ Years HVAC Manufacturing Experience
Produced by a specialized manufacturer with extensive experience in HVAC copper piping and insulation systems since 2008.

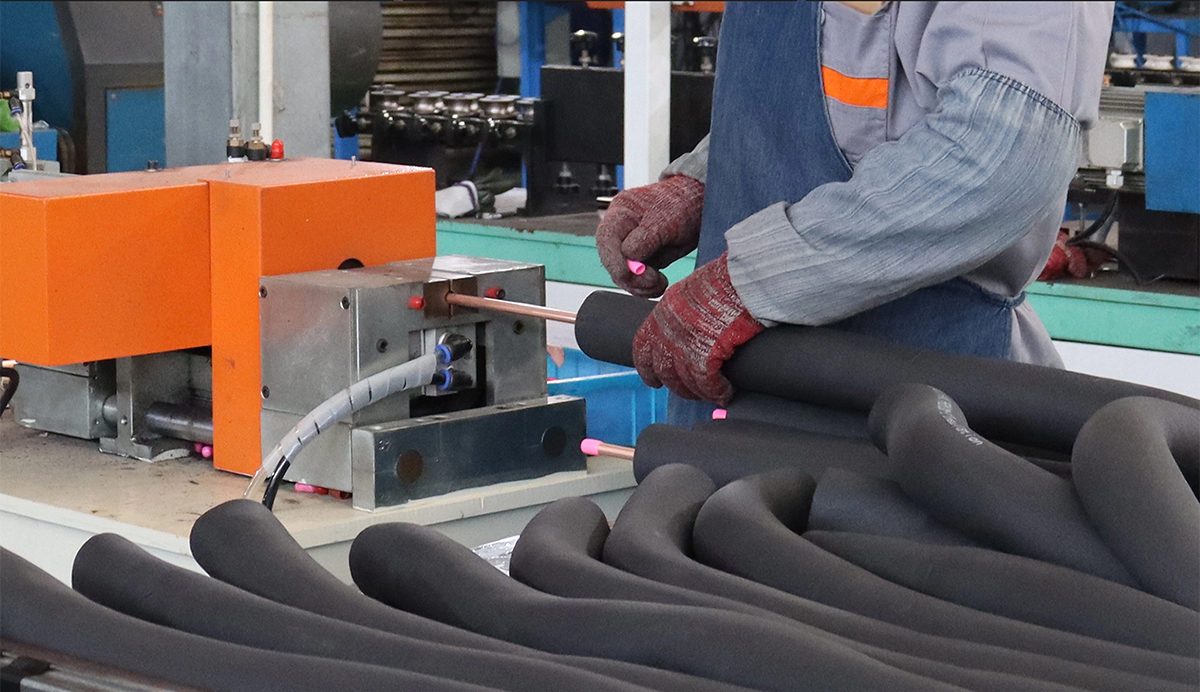

In-House Insulation Production
Ensures:
Consistent insulation quality
Faster production cycles
Custom branding capability
OEM & Custom Branding Available
Customize:
Logo printing
Pipe markings
Packaging
Perfect for distributors and wholesalers.
Strong Global Supply Capability
Weekly container shipments
Stable export logistics
Scalable production capacity
Installation Tips for Long Line HVAC Systems
Plan Line Routing Carefully
Avoid Excessive Bends
Maintain Proper Bend Radius

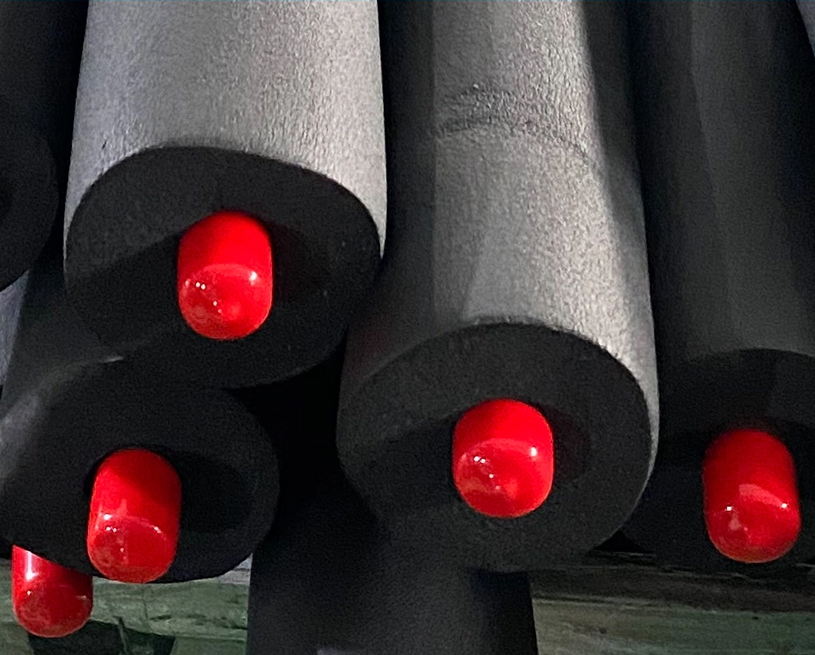

Keep Pipe Ends Sealed

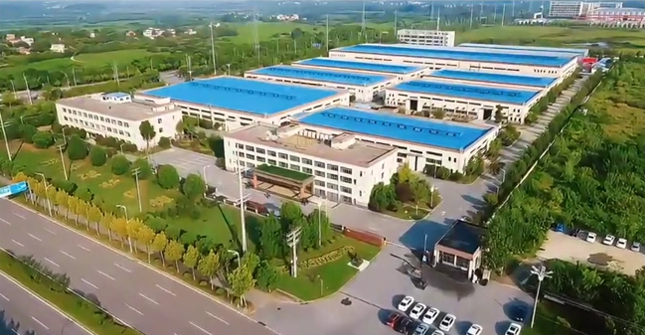

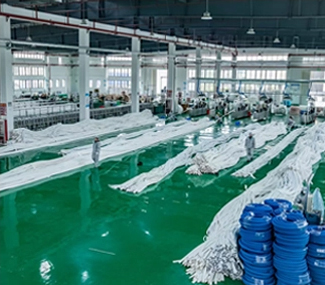

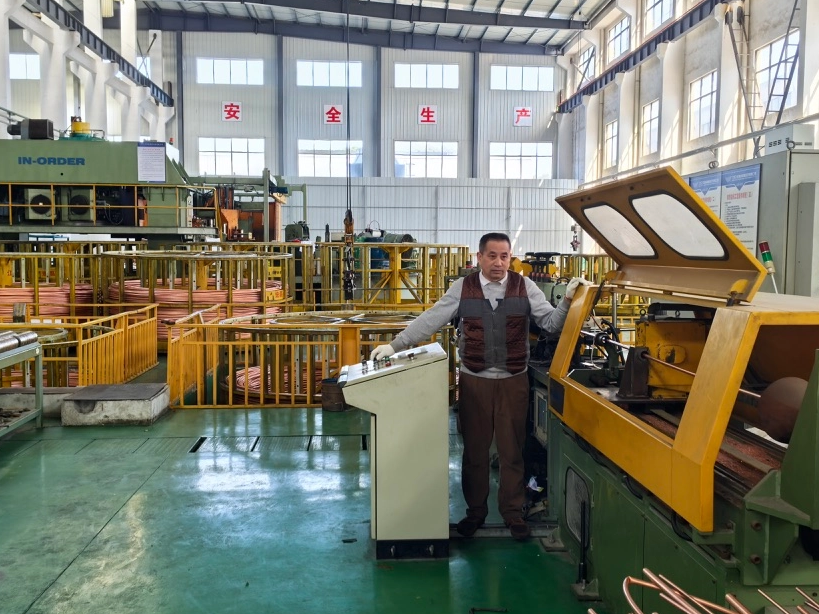

DABUND FACTORY

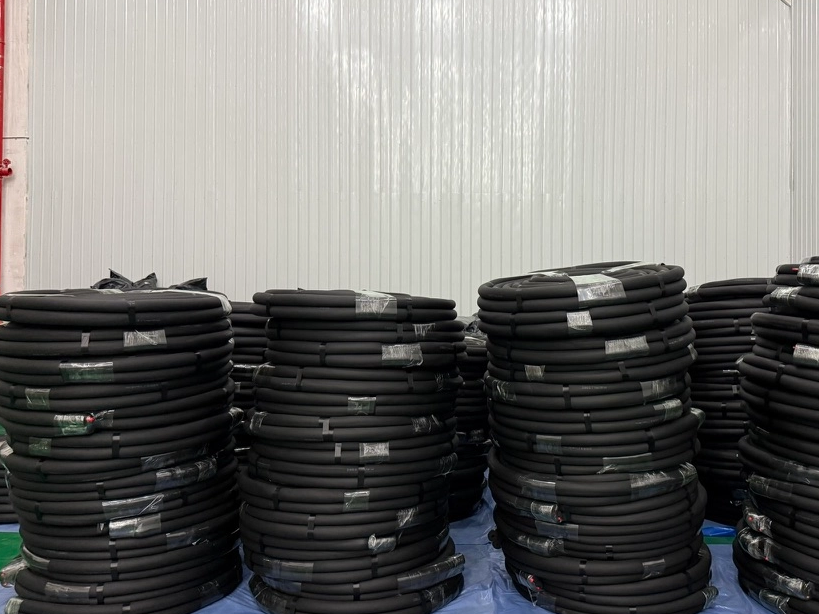

Package & Delivery

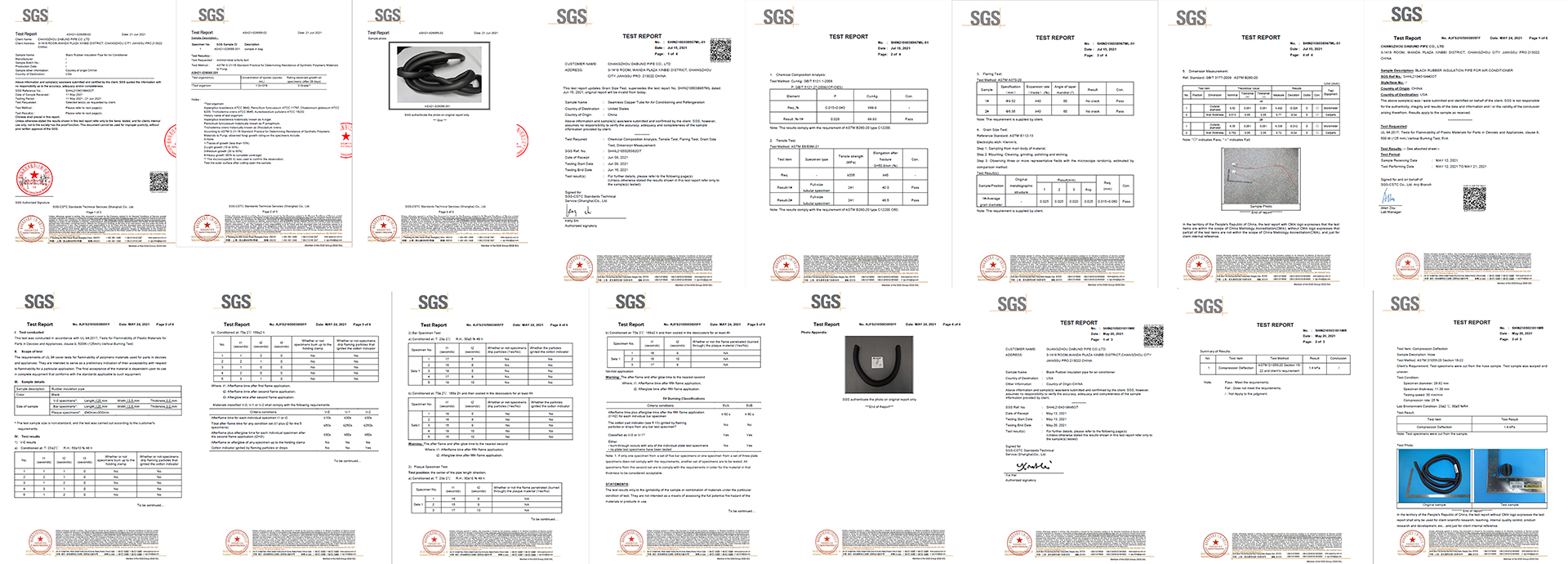

SGS Certificate
Exhibition
1/4 3/8 Mini Split Line Set 100 ft FAQ
What is your payment terms?
TT,L/C AT SIGHT,CREDIT CARD etc.
What is your delivery terms?
Are you trading company or manufacturer?
May I get a sample?
Can I print my logo?
How long is your delivery time?
What system capacity is this line set suitable for?
Can this line set handle modern refrigerants?
Is this suitable for outdoor installation?
Does it come pre-insulated?
Do you support OEM customization?
